Electrical Installation
24
DS8110 Barcode Scanner

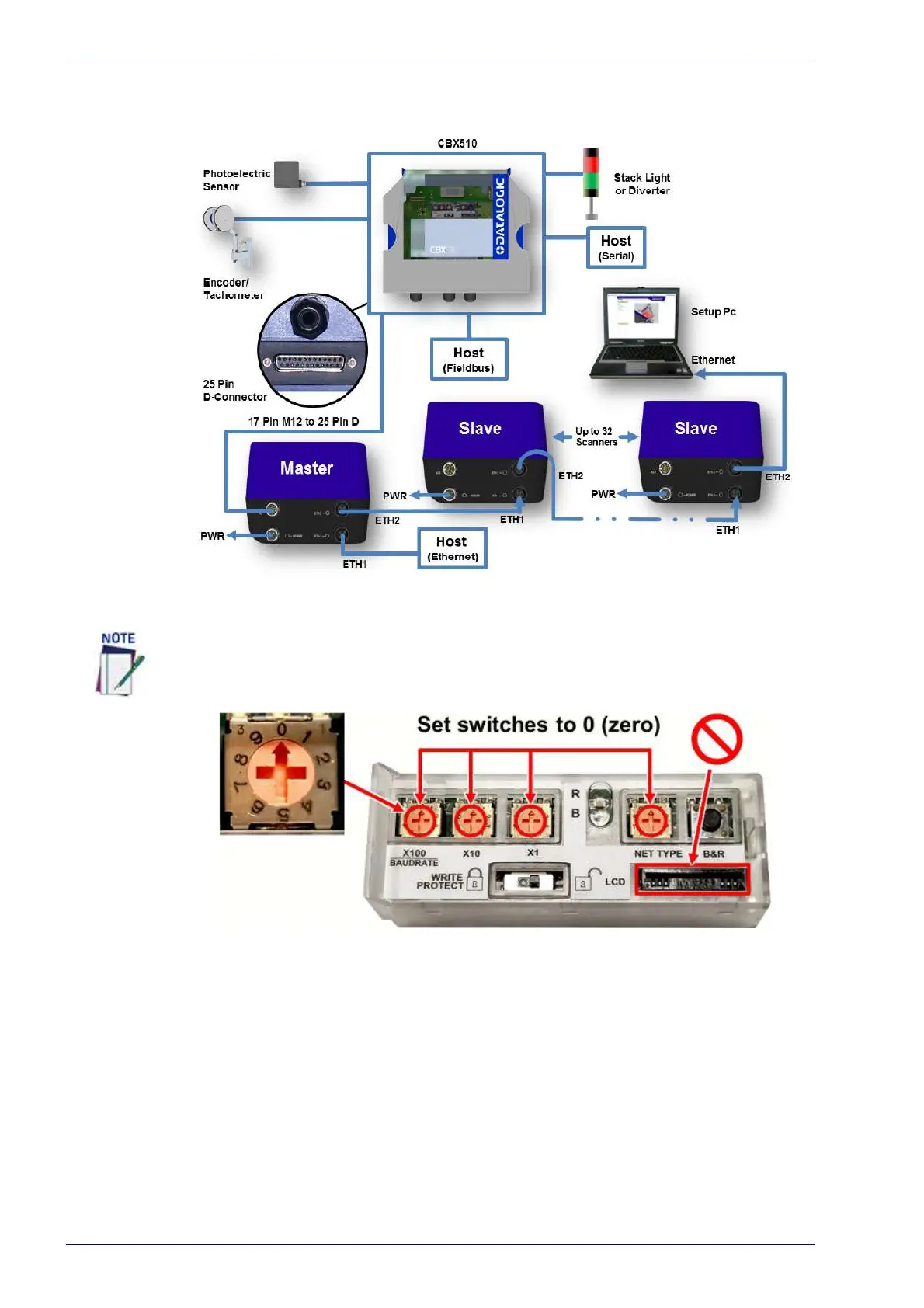

Master/Slave Array with CBX510
DS8110 Barcode Scanners in an Array with SC5000 Master
In an array (tunnel) using the SC5000 Controller, the chain of scanners com-
pletes a circle from and to the SC5000 Contro
ller via ETH1 and ETH2. In this sce-
nario, if one scanner fails, communication fr
om the other scanners to the
SC5000 Controller is not interrupted.
The BM100 switches indicated below must be set to 0 (zero), and the connector indi-
cated is not supported.
