General Electrical Installation Guidelines
Reference Manual 25
General Electrical Installation Guidelines
It is important that you follow these general precautions when installing, setting
up, operating, maintaining, troubleshooting or replacing any Datalogic products,
parts or related equipment.
As you plan and install your scanner(s), be sure to keep the following guidelines
in min
d:
• Determine the scanner is in the proper location as outlined in Chapter 2.
• Leave adequate clearances (approximately 300mm [12 inches]) for wiring.
• Route wires carefully to reduce or minimize electrical noise.

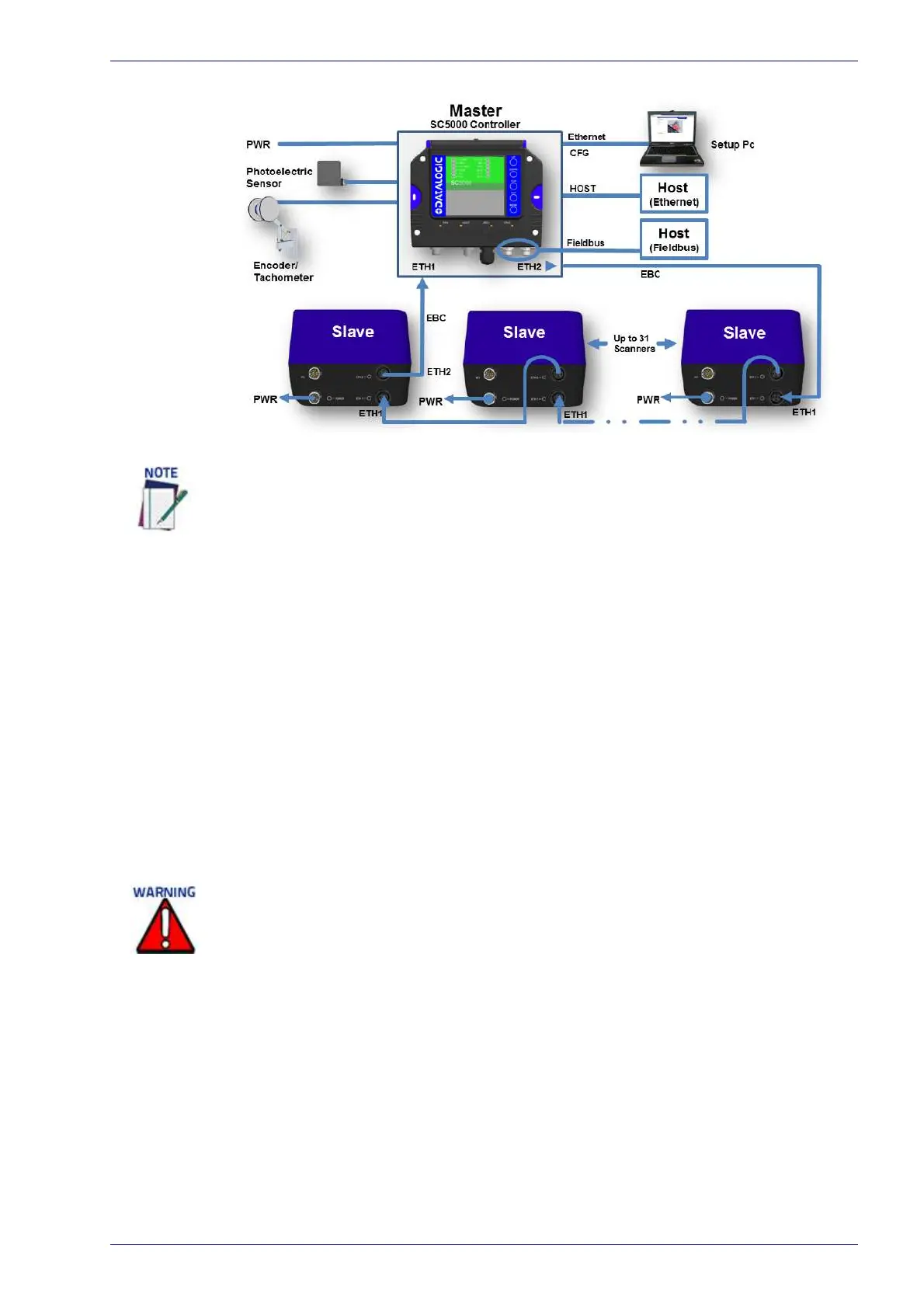

When using the SC5000, a Fieldbus Host only connects to the SC5000 Fieldbus model
(Profinet or Profibus) at the connectors shown. It cannot connect to the CBX.
An Ethernet Host connects to the HOST connector on the SC5000 top cover. A Serial
Host must connect through the CBX (see )
When planning your installation wiring, remember all power connections must be
quick-disconnect. For PERMANENTLY CONNECTED EQUIPMENT a readily accessible
disconnect device must be incorporated in the building installation wiring. For PLUG-
GABLE EQUIPMENT the socket-outlet must be installed near the equipment and must
be easily accessible.
To assure no ESD damage will occur, be sure to observe the precautions outlined in the
Introduction to this manual.
Ground the mounting structure to safety ground (protective earth ground (PE)). See wir-
ing recommendations for safety ground.
