Barcode Scanning Features
202
DS8110 Barcode Scanner

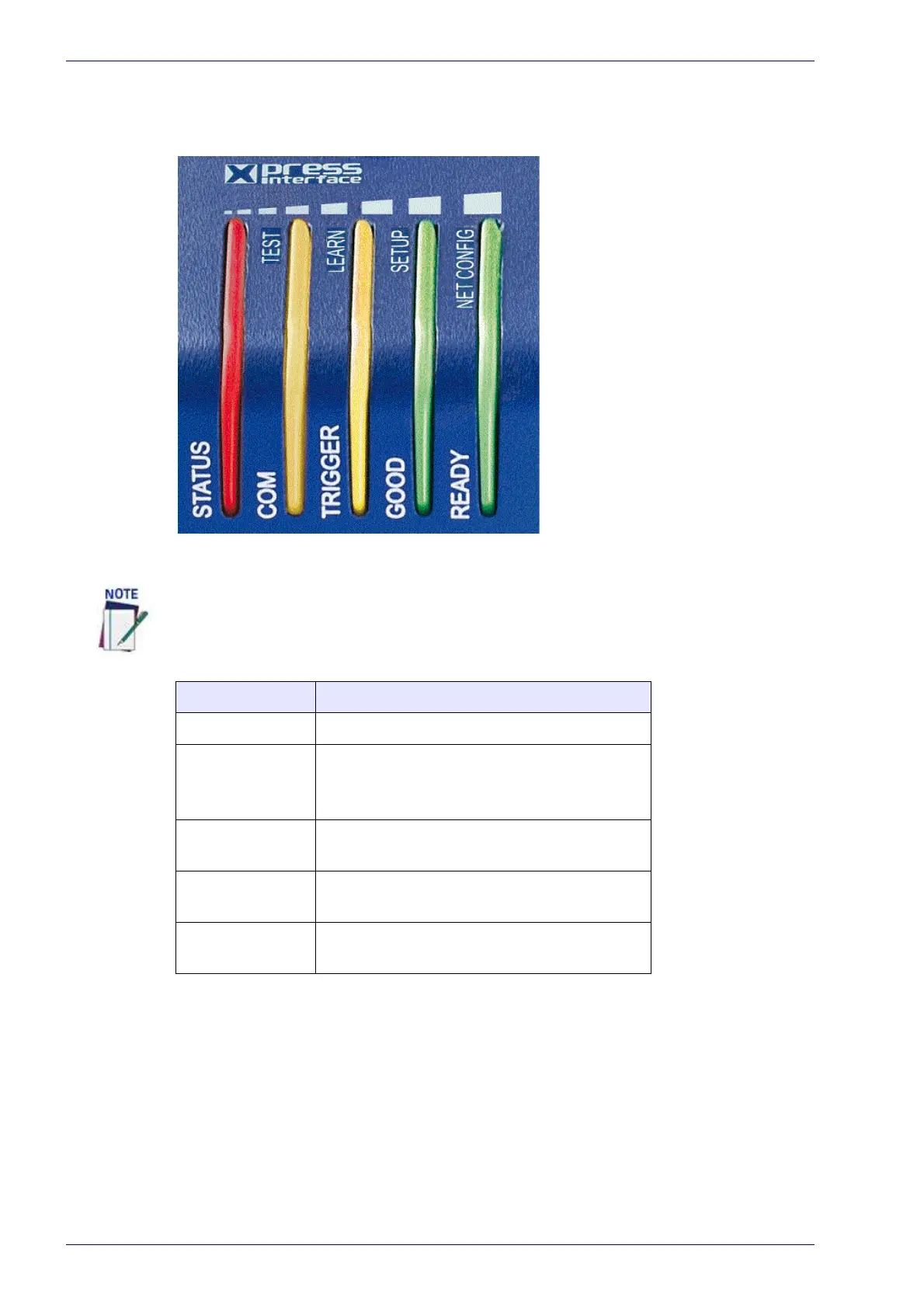

LED Indicators
The DS8110 barcode scanners have several tube LEDs spanning the top and
front panel.
The indicators have the following meanings:
For alternate functions,
see X-Press™ Human Machine Interface
below.
LED Description
STATUS Flashes RED on a NO READ
COM/TEST
Flashes YELLOW to indicate data transmit-
ting from main serial port.
TRIGGER/LEARN
Flashes YELLOW to indicate an active exter-
nal presence sensor.
GOOD/SETUP
Flashes GREEN to indicate a barcode was
s
uccessfully read.
READY/NET-
CONFIG
Solid GREEN indicates the devi
ce is ready to
operate.
When operating mode is set to PackTrack, the COM/TEST and TRIGGER/LEARN
LEDs are inactive on slave Scanners.
