Electrical Installation

DS8110 Barcode Scanner

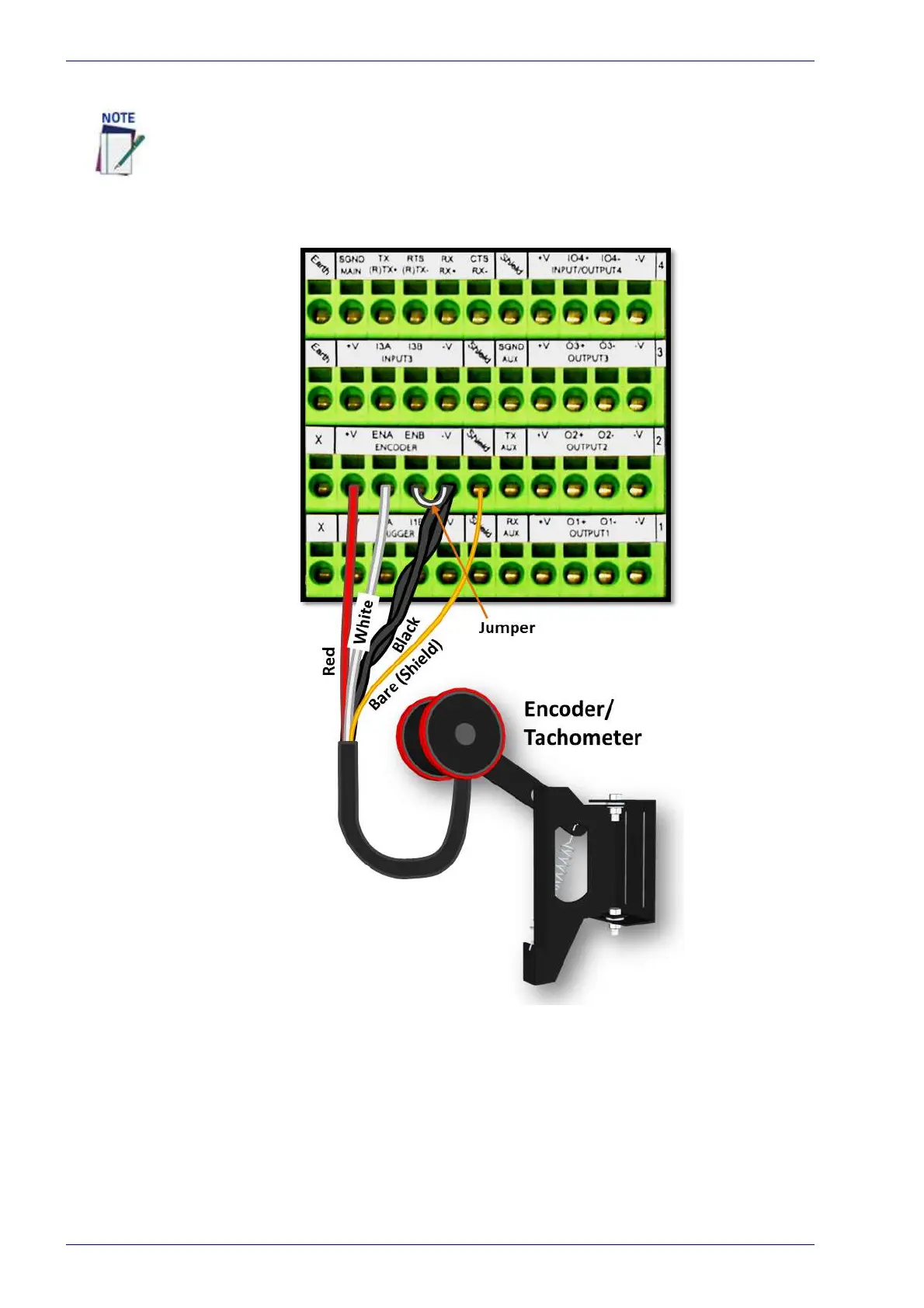

Encoder/Tachometer Wiring for PNP Output (two models)

Some tachometers may have a different color coding:

Red (+V) or White/Orange

White (signal) or White/Blue

Black (ground) or Orange/White
