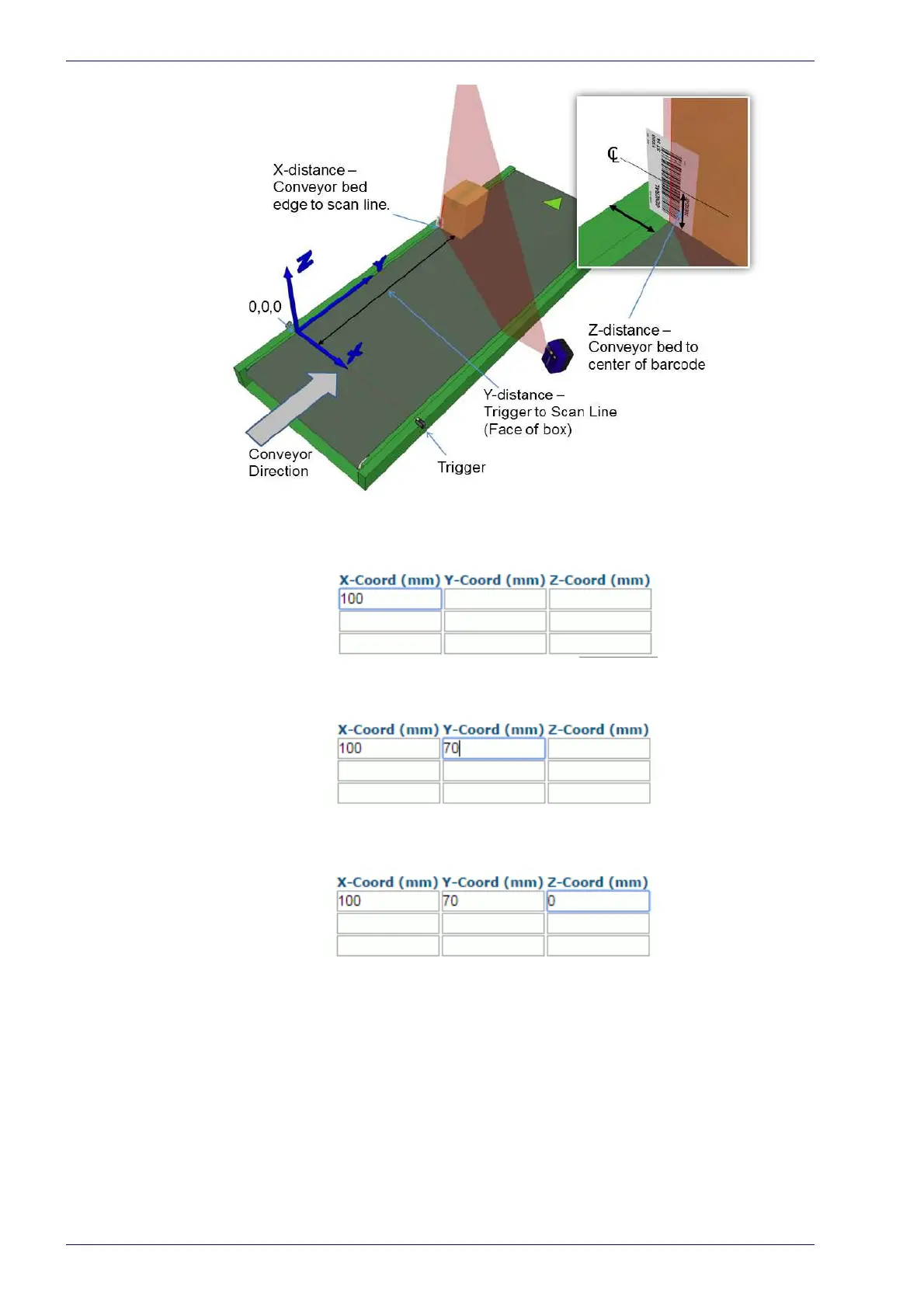

2. Measure the distance for X from the edge of the conveyor bed to the laser
line centered on the barcode, and enter that distance in the first box under
X-Coord (mm) in the PackTrack Calibration Wizard.
3. Measure the distance for Y from the trigger (PS line) to the back edge of the
box, and enter that distance in the first box under Y-Coord (mm).
4. Measure the distance for Z from the conveyor bed to the center of the
barcode, and enter that distance in the first box under
Z-Coord (mm).
5. Click Calibrate 1. PackTrack data is displayed for the first code.
