PackTrack™
Reference Manual 219

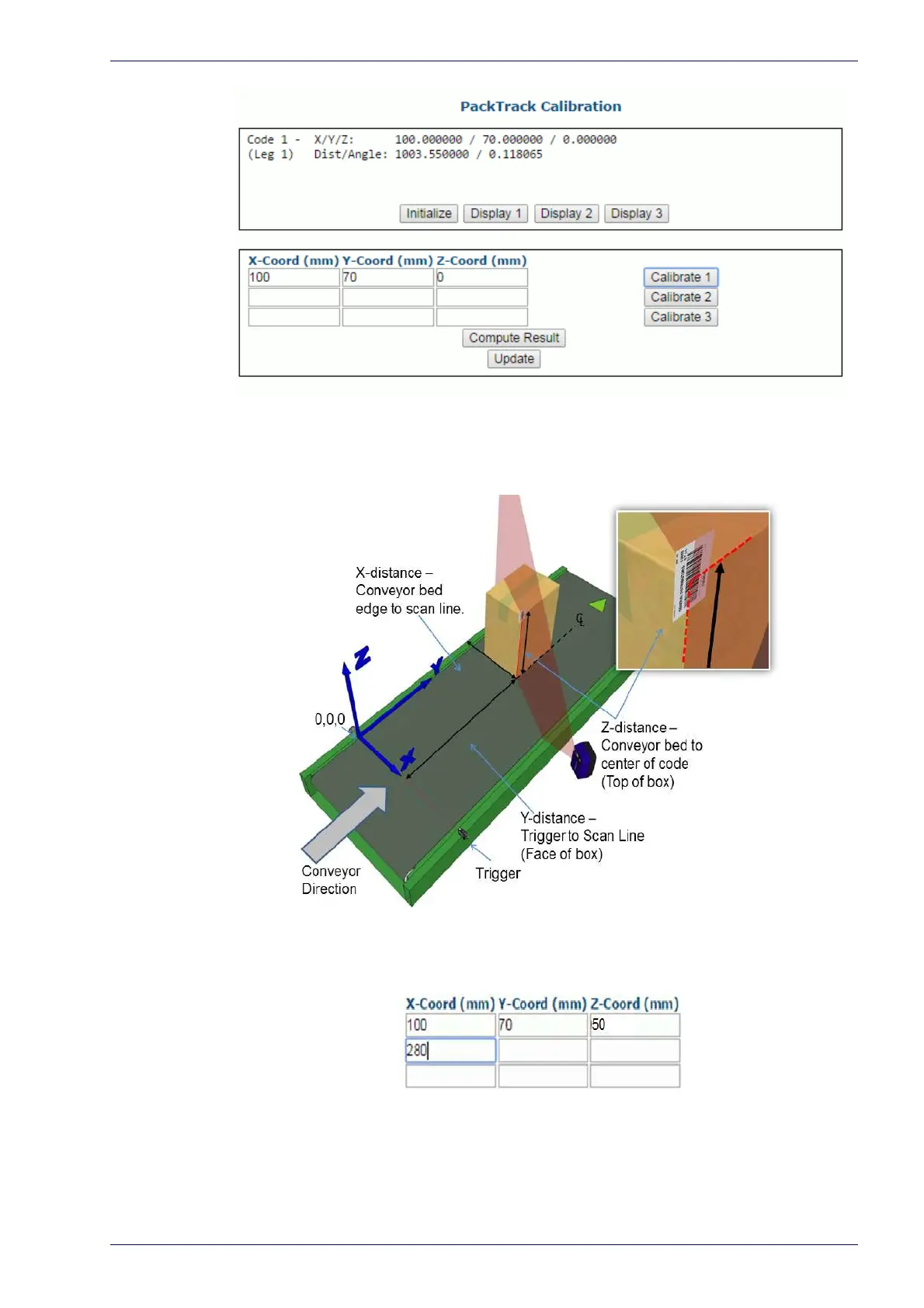

6. Next, place a barcode overhanging the top corner of the tallest box speci-
fied for your scanning system as shown in the illustration below. Center the
right
edge of the box on the conveyor aligning the right back corner with
the laser line as shown.
7. Measure the distance for X from the left edge of the conveyor bed to the
center of the barcode (right edge of box), and enter that distance in the first
box under X-Coord (mm).
8. Measure the distance for Y from the trigger (PS line) to the back edge of the
box, and enter that distance in the first box under Y-Coord (mm).
