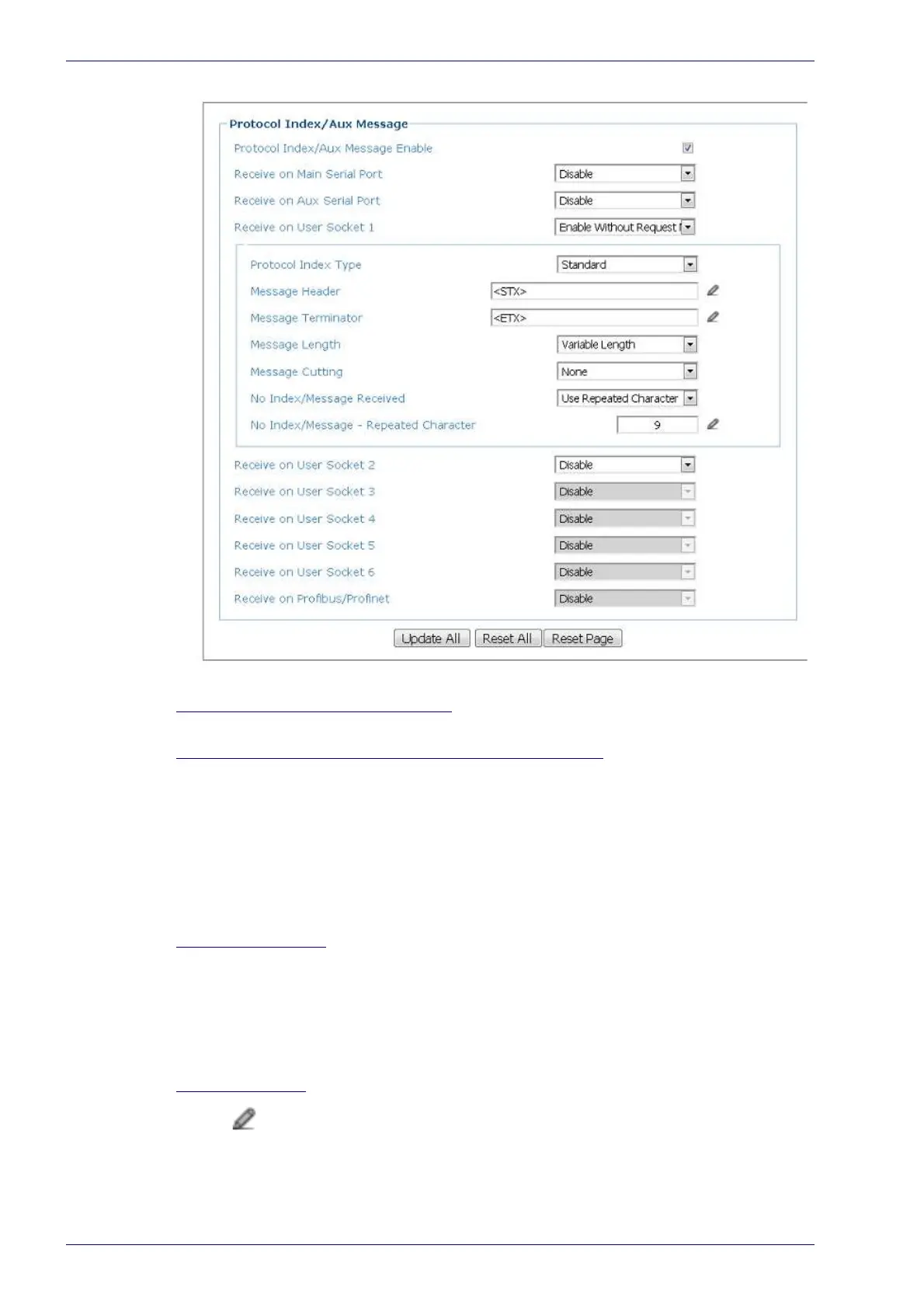

2. Enter the appropriate information in the form as described below:
Protocol Index/ Aux Message Enable
Select the check box to reveal and edit Protocol Index/Aux Message options.
Receive on Main or Aux Serial Port, or User Socket 1 or 6
Select Disable, Enable without Request Message, or Enable with Request Message
from the drop-down list.
Disable: The selected communication channel is not used for Protocol Index
string communication.
Enable without Request Message: The Host sends the Protocol Index string
autonomously on the selected communication channel.
Enable with Request Message: The Host waits for the Protocol Index Request
Message sent by the scanner, when the trigger detects the presence of a
pack, before transmitting the Protocol Index string associated to the pack
itself on the selected communication channel.
Protocol Index Type
Select Standard, Volume, Scale or Image Name from the drop-down list.
Standard
Volume
Scale
Image Name
ASI-ADP / Mux Message (socket only)
AIM Barcode Messaging
Request Message
Click to activate the Text Entry Tool and create a Request Message (up to 128
bytes) to be defined and transmitted. Use characters from NUL (00H) to ~ (7EH).
Click Submit to save your changes, or click Cancel to return to previous window.
