Barcode Scanning Features

210

DS8110 Barcode Scanner

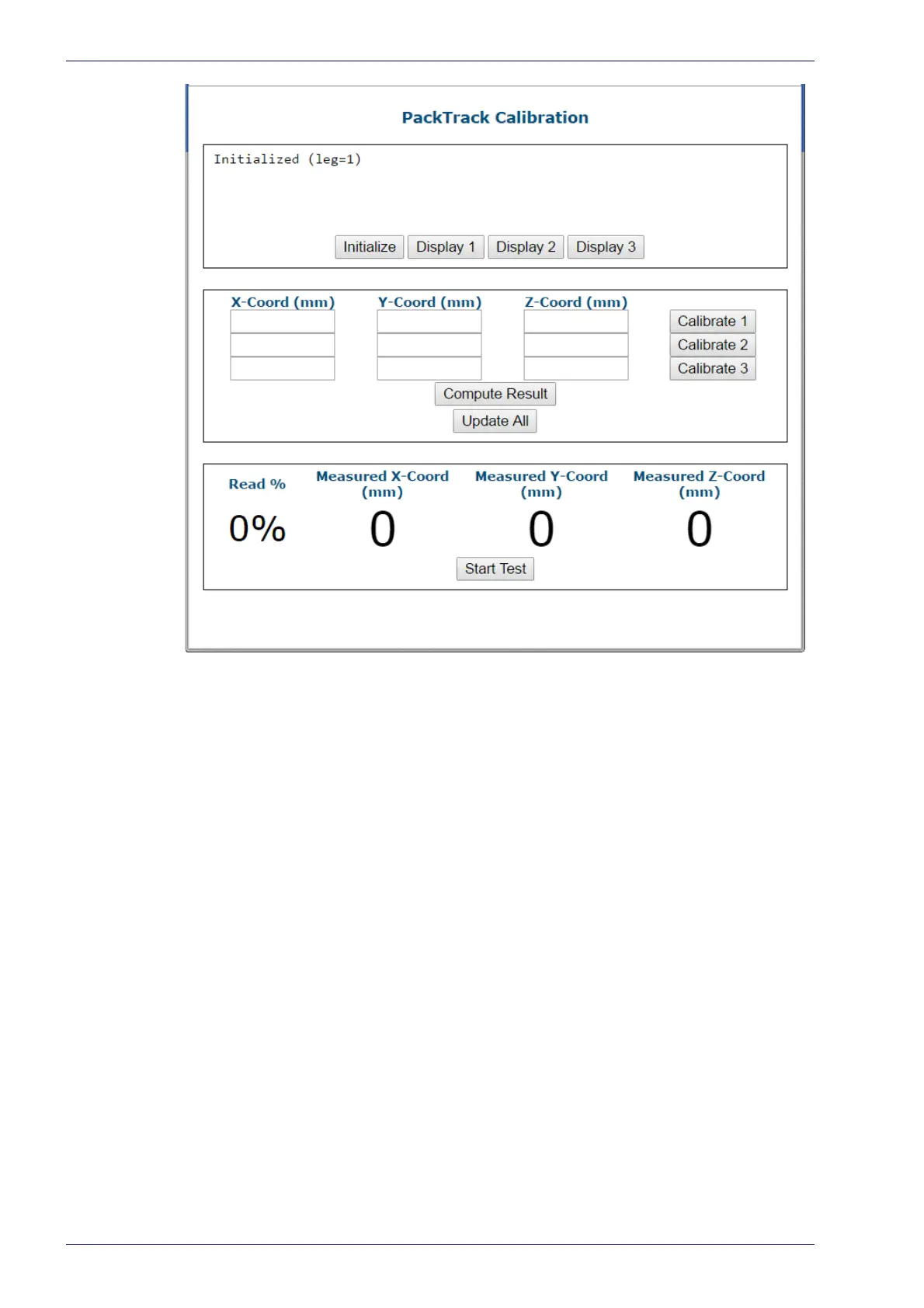

4. The PackTrack Calibration Wizard asks you to physically measure and enter

barcode coordinates for the extremes of your barcode scanning system.

You will measure and enter XYZ coordinates for barcodes in three different

locations along the barcode scanners laser line(s) for each system scanner,

as shown for top-mounted and side-mounted scanners in the illustrations

below.
