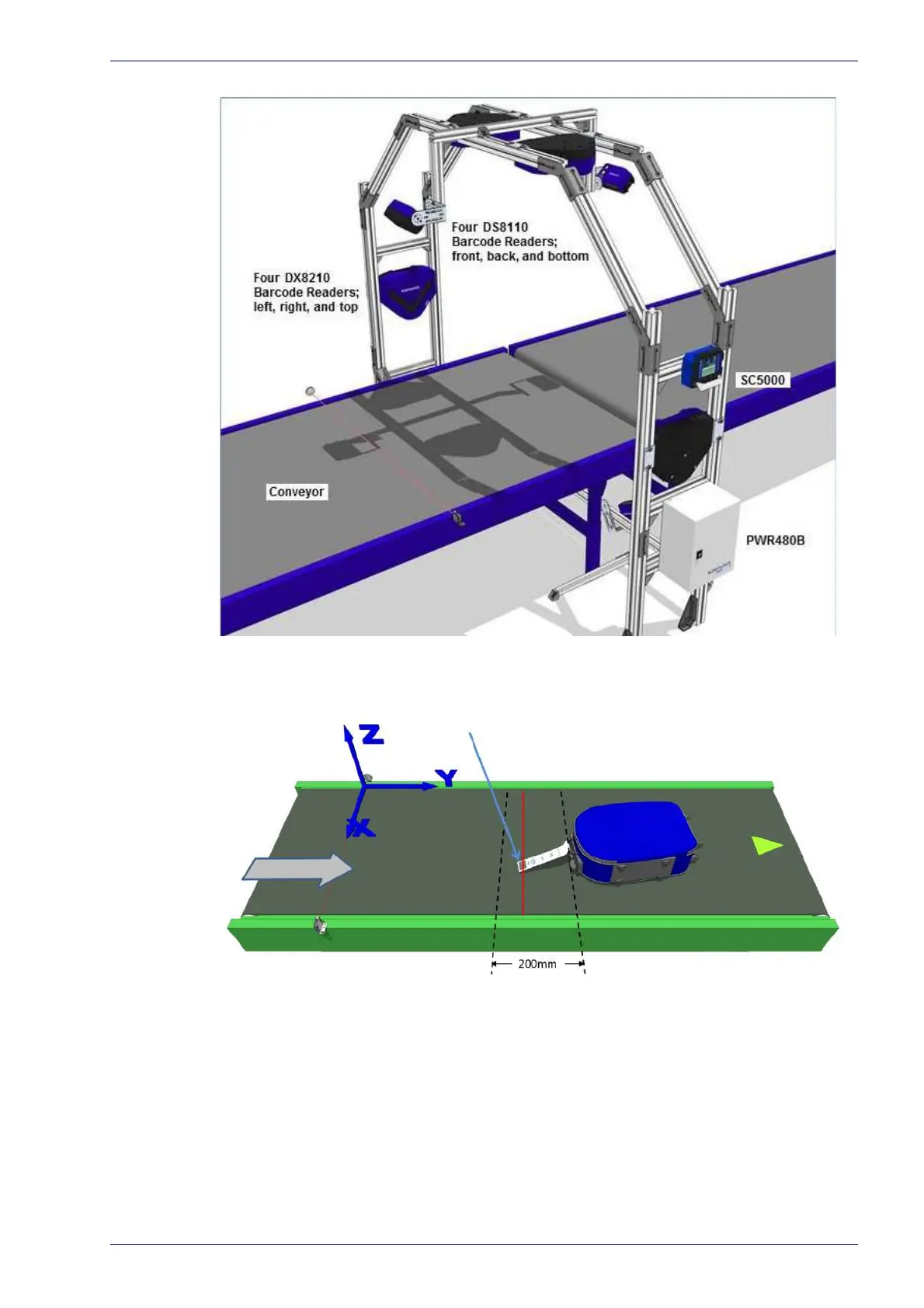

Typical Layouts

Reference Manual 231

For applications having regular shaped packs, the default settings are sufficient,

but for Airport applications working in PackTrack Operating Mode, irregular

shaped packs can cause PS signal glitches resulting in false "packs too short" or

"packs too close" errors.

To correct this, set the following Operating Modes parameters: Minimum Dis-

tance Between Packs = 200 mm, Minimum Pack Length = 200 mm, Window

Dimension =

200 mm.

Table of Contents3
References7
Reference Documentation7
Support through the Website7
Patents7
Conventions8
Compliance9
Electrical Safety9
Laser Safety9
Standard Regulations9
Bureau of Indian Standard (BIS)9
Warning and Serial Labels10
Power Supply11
CSA Certified11
CE Compliance11
EAC Compliance11
FCC Compliance12
Introduction13
Product Description13
General View14
Applications15
Model Description17
DS8110 Versions17
X-PRESS (Human Machine Interface)17
Accessories18
Photoelectric Sensor20
Encoder (Tachometer)21
Encoder/Tachometer Step Settings21
Photocraft Encoder/Tachometer Switch Setting22
CBX Industrial Connection Box23
SC5000 System Controller24
Mechanical Installation25
Preparing for Mechanical Installation25
Unpacking Instructions26
Installation Sequence26
What You Need to Know about Your Application27
Installation28
Dimensions and Clearances28
Physical Support Requirements28
Vibration Limitations28
General Mounting Guidelines29
Mounting Structure Considerations29
Mounting the Scanner30
Positioning the Scanners32
Electrical Installation33
Preparing for Electrical Installation33
Connecting a DS8110 Scanner34
Typical Connection Block Diagrams35
Single DS8110 Barcode Scanner to CBX51035
Master/Slave Array with CBX51036
DS8110 Barcode Scanners in an Array with SC5000 Master36
General Electrical Installation Guidelines37
DS8110 Connector Panels38
Connecting a PC to the DS811039
Power Connector Pin-Out Table39
Power Connections39
CBX510 Connection Box40
Wiring into the CBX510 Connection Box40
Main Serial Interface41
RS232 Interface41
RS422 Full-Duplex Interface42
Photoelectric Sensor Connections to CBX51043
Photoelectric Sensor (NPN)44
Photoelectric Sensor (PNP)45
Tachometer Wiring to CBX51045
Encoder/Tachometer Wiring for NPN Output (Two Models)46
Encoder/Tachometer Wiring for PNP Output (Two Models)48
Digital Output Configuration to CBX51050
Unpowered Outputs51
Powered Outputs51
CBX100 Connection Box52
Connecting to the SC5000 System Controller (Optional)53
Grounding54
Check Scanner Installation54
E-Genius55
Getting Started55
Prerequisites55
Starting E-Genius55
Monitor Mode57
E-Genius Basics59
E-Genius Menu Tree59
Entering Text Using the Text Entry Tool59
Update and Reset Buttons60
Disabled Check Boxes60
Getting Help60
System Information61
Modify Settings64
Operating Mode66
Barcode Settings Table80
Barcode Configuration87
Understanding Barcode Configurations88
No Read Messages88
Single Label91
Standard Multi Label95
Logical Combination99
Barcode Configuration | Code Collection109
Serial Ports114
Main Serial Port115
Aux Serial Port118
Ethernet120
Ethernet | Line Settings121
Ethernet | User Sockets123
Ethernet | Ethernet_Ip127
Ethernet | Websentinel131
Fieldbus133
Messaging138
Messaging | Message Format139
Messaging | Message Builder151
Messaging | Statistics157
Messaging | Protocol Index159
Messaging | Pass-Thru163
Messaging | Diagnostics Messages165
Digital I/O168
Diagnostics171
Energy Saving175
HMI Settings179
Device Settings180
Device Settings | Device Info181
Device Settings | Mounting183
Packtrack™ Calibration Wizard184
Device Settings | Options185
Diagnostics188
Diagnostics | Monitor189
Diagnostics | Read Test191
Diagnostics | Status Viewer192
Utilities195
Utilities | Backup or Restore196
Utilities | Reboot198
Utilities | Update Firmware199
Utilities | Launch Genius201
Utilities | Help202
Barcode Scanning Features203
First-Time Startup203
Default Parameters203
Check Operations Using Test Mode204
Basic Installation Procedures with the CBX510204
Basic Installation with SC5000 Controller209
LED Indicators214
Control Panel Buttons215
X-PRESS™ Human Machine Interface215
X-PRESS Functions215
Restore Button and Other Functions218
Packtrack219
Using the Packtrack Wizard220
Top-Mounted Barcode Scanner Calibration Using Packtrack224
Side-Mounted Barcode Scanner Calibration Using Packtrack229
Bottom-Mounted Barcode Scanner Calibration Using Packtrack235
Verifying Packtrack Calibration235
Replacing an Installed DS8110237
Replacing a Standalone Scanner Using Restore237
Replacing a Slave Scanner in an Array/Tunnel Automatically238
Replacing a Slave Scanner in an Array/Tunnel Using Restore239
Replacing a Master Scanner in an Array/Tunnel Using Restore239
Checking the Operation of the Replacement240
Typical Layouts240
Large Synchronized Network Layout241
Advanced Code Reconstruction (ACR™)244
Tilt Angle for Advanced Code Reconstruction244
Minimum Code Height for Advanced Code Reconstruction245
Reading Diagram247
Maintenance258
Overview258
Maintenance Tasks259
Cleaning the Exit Window259
Cleaning the Photoelectric Sensor260
Cleaning the Tachometer261
Tighten Mounting Hardware261
Checking Barcode Scanning System Connections261
Verify Barcode Scanner Operation262
Verify Photoelectric Sensor Operation262
Verify Tachometer Operation262
Troubleshooting263
LED Diagnostic Indication264
Error Codes and Resolutions265
Technical Features272
Technical Specifications272
Index275
