V1108, 6.18
6.y

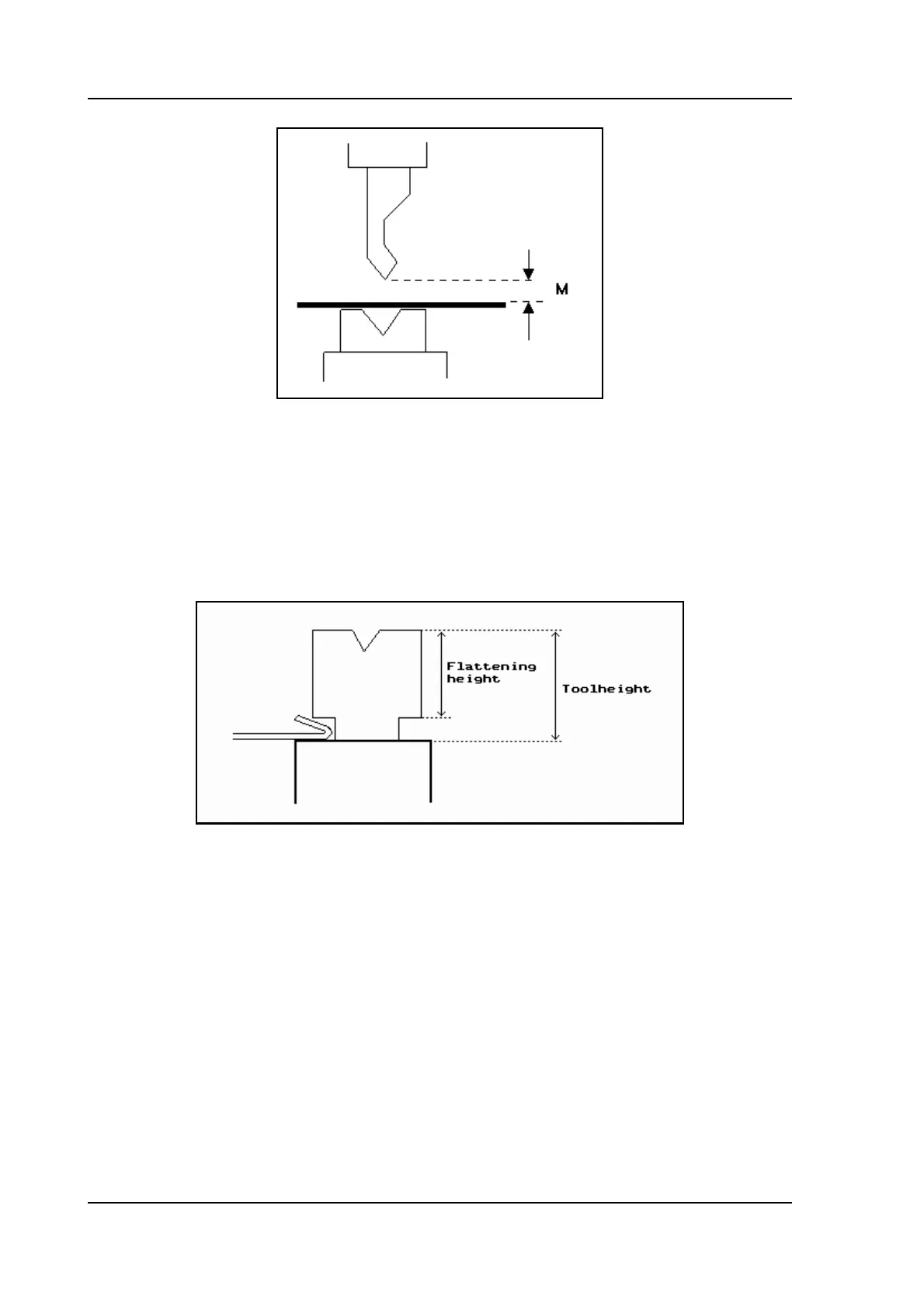

Flattening height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .FH
The flattening height needs to be programmed when you make use of a special
flattening die to flatten your product.
The programmable height is used to calculate the Y-axis value in case of "flattening".
The default-value for this parameter is the standard tool height, which is already
programmed. Every time that this standard height is changed, the flattening height will
be made equal to this tool height (for safety reasons). See figure 6.y.
6.z
The total height will be used to calculate the speed change point mute and the flattening
height will be used to calculate the end position of the Y-axis beam to flatten the product.
The calculation will take twice the sheet thickness into account. Also you can program a
flattening offset in the menu ‘Program constants’. This value will be added to the value
of twice the sheet thickness.
2nd x-safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SN=
Second automatically computed safety zone (minimum X-axis value) to be used in case
a more complex die is used. The value is the distance from the middle of the V-opening
to the most outside point of the drawing of the die (on the back side). Also an extra
safety tolerance of 0.5 mm is added.
2nd x-safe turned (negative) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ST=
Second automatically calculated safety zone (minimum X-axis value) if the die is used in
the turned position.
