V1108, 2.4
2.d
2.2. 2D product drawing
• Introduction

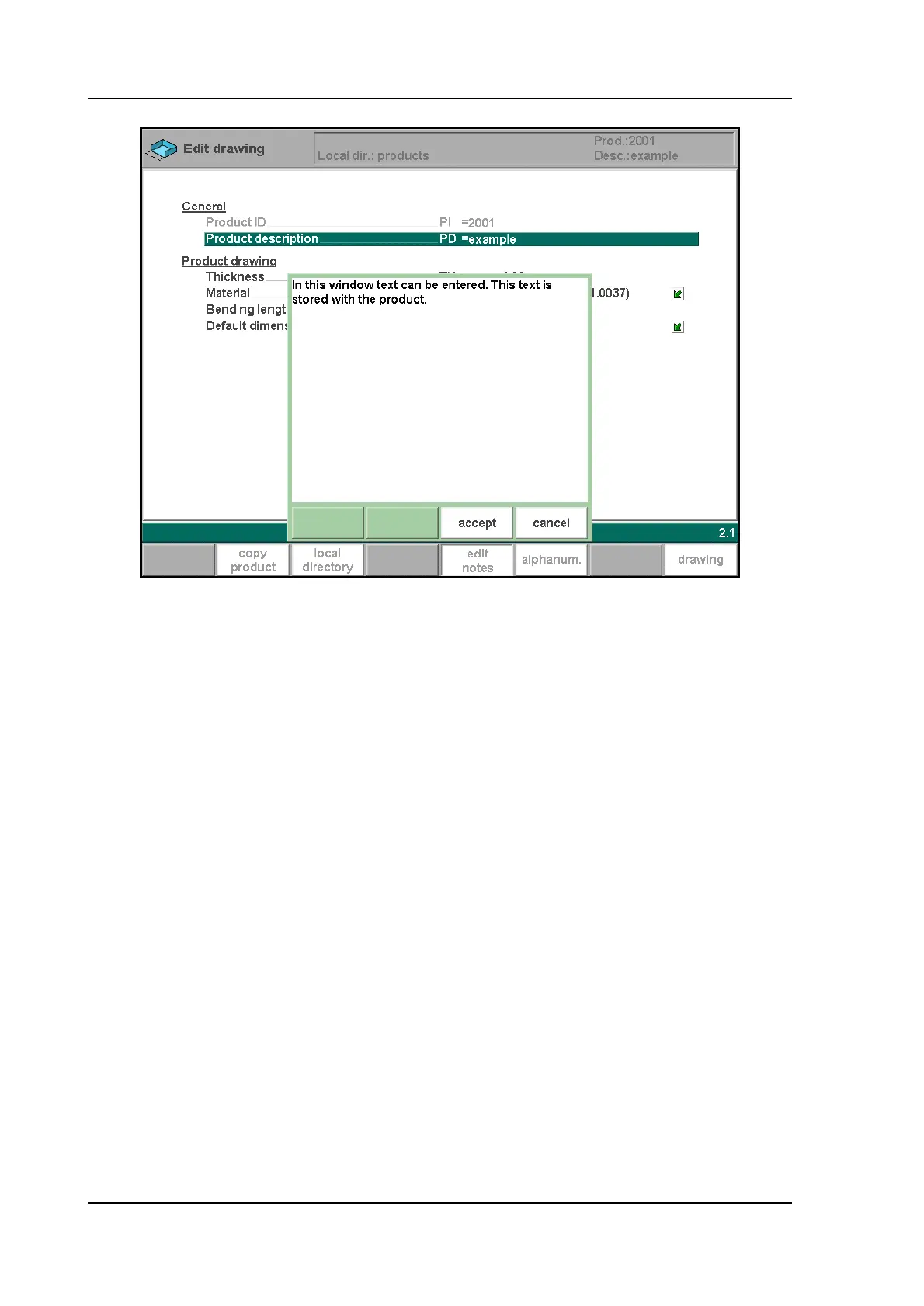

After entering the general product data the drawing screen appears. In the upper information
row you will find the information about product ID, product description and inside/outside
dimensions selection.
Now you can create the profile of the product. First enter the value of the basic length of the
product. Then enter the angle of the next side followed by the length of that side. These
properties are prompted in the lower left corner of the screen. This procedure continues until
the product has the desired profile. It is also possible to use the cursor keys to quickly draw
new sides, see also the section about cursor control keys.
The currently active element (line or angle) is highlighted. With the cursor control keys you
move the drawing cursor to another position (angle or length).
In a product drawing you can program up to a maximum of 99 bends per product (graphical
programming).
