Delem DA-65W - 2.4. Bend Properties

V1108, 2.9
2.4. Bend properties
2.4.1. Large radius

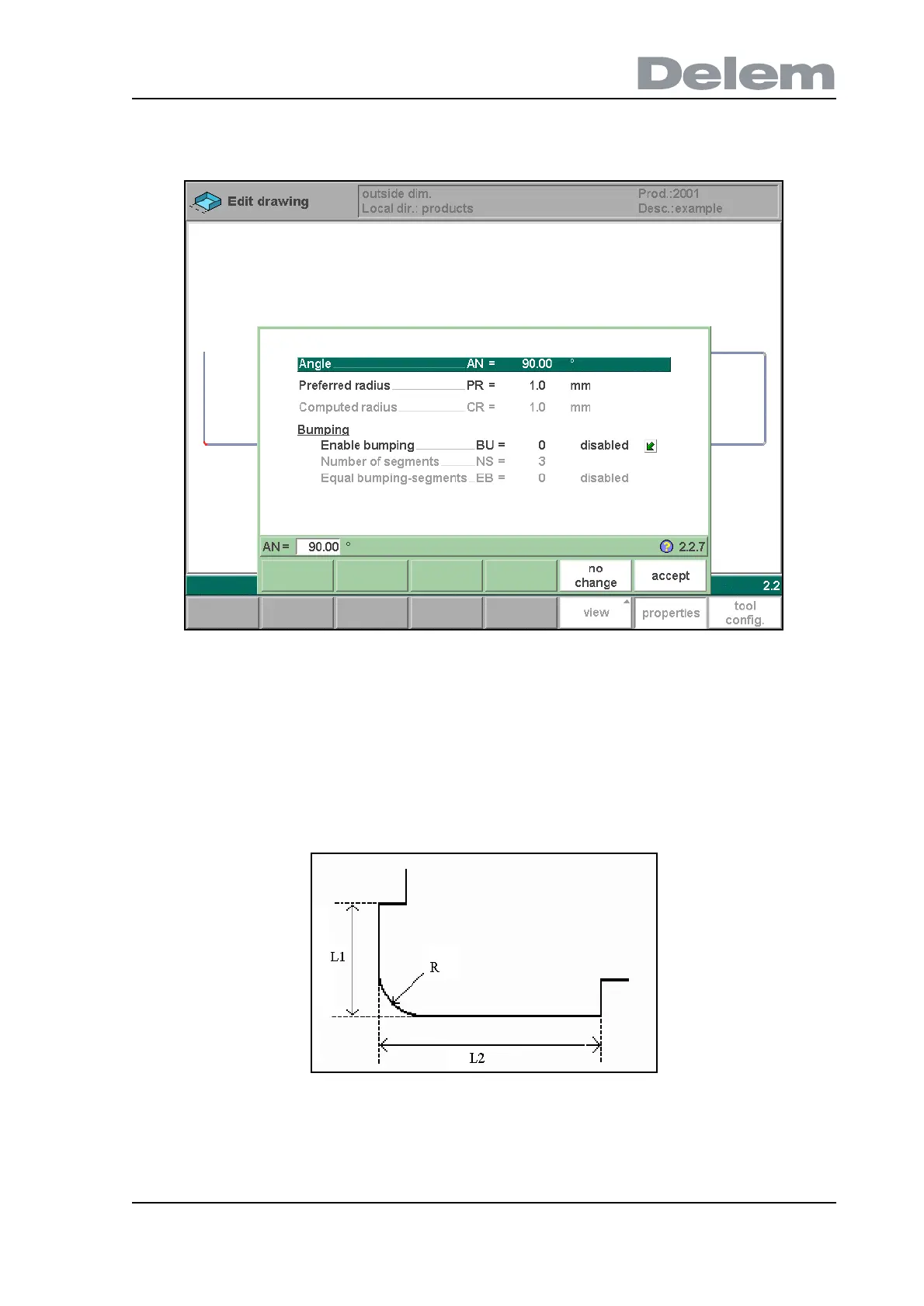

2.i
Bend properties:
• angle value
• radius properties
A bend with a large radius is programmed in the properties window. The radius value may not
exceed the length of any of the adjacent sides.
For the definition of the line lengths to be programmed in the part connected to a radius bend,
see figure 2.j.
2.j
Lengths L1 and L2 must be equal or bigger than the radius R.
