6.2.2. Punch drawing

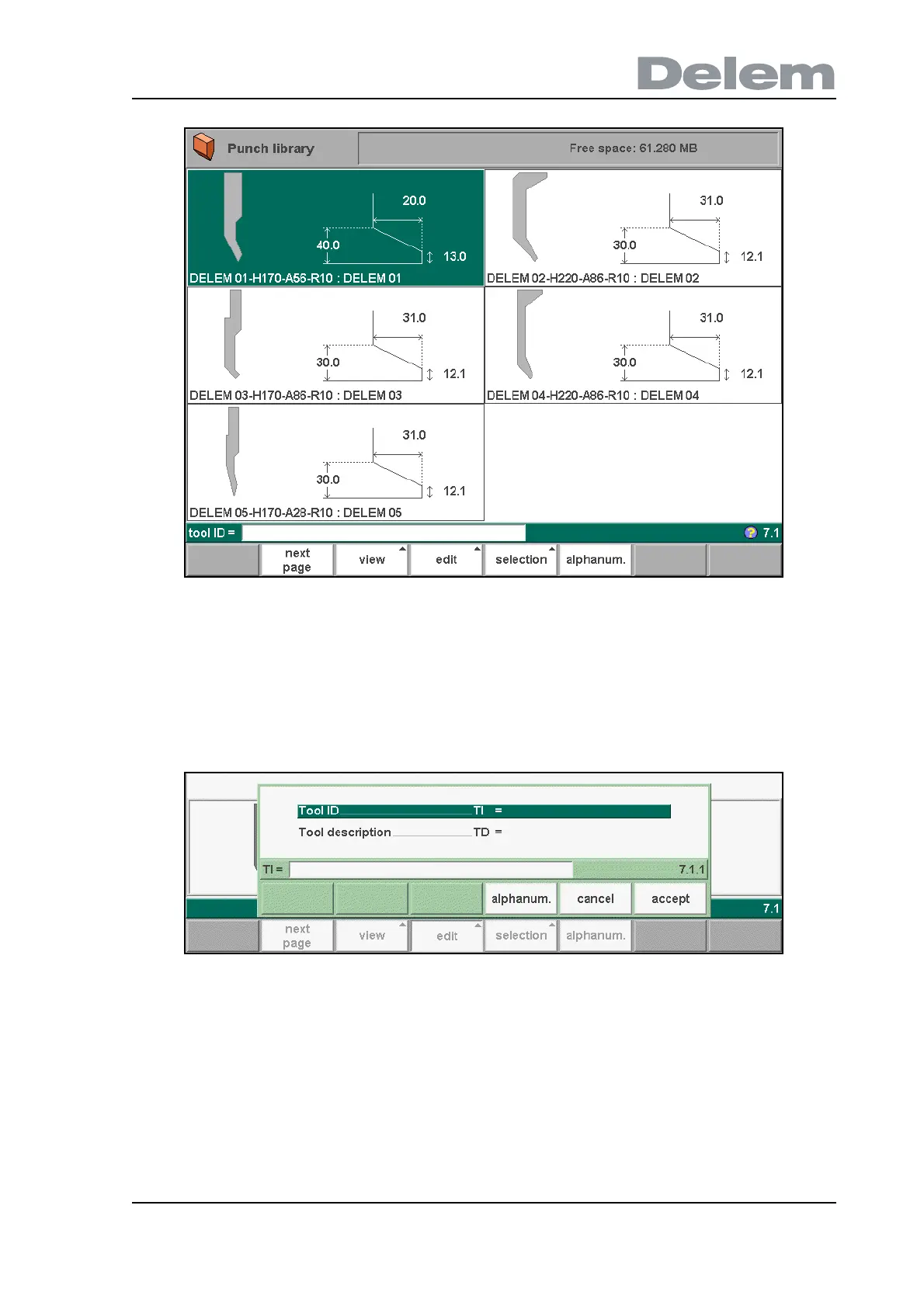

• Create a new punch
To create a new tool, press the key ‘edit’ in the punch library and subsequently the key ‘add’.
The control will start by asking for a tool ID and a description.
6.g
Tool ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..TI
A unique name or number to identify the tool. The maximum length is 25 characters.
Tool description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..TD
A name or description of this tool. The maximum length is 25 characters.
These parameters may also contain alphanumeric characters, which can be entered with the
help of the function key ‘alphanum’ (S5).
When finished, press ‘accept’ to leave this window and start with the tool drawing.
