V1108, 3.18
Note:
When a bend in the bend sequence is adjusted manually with one of the available functions, it
must be confirmed by pressing ‘unbend’. Otherwise, it will not be stored in the sequence.

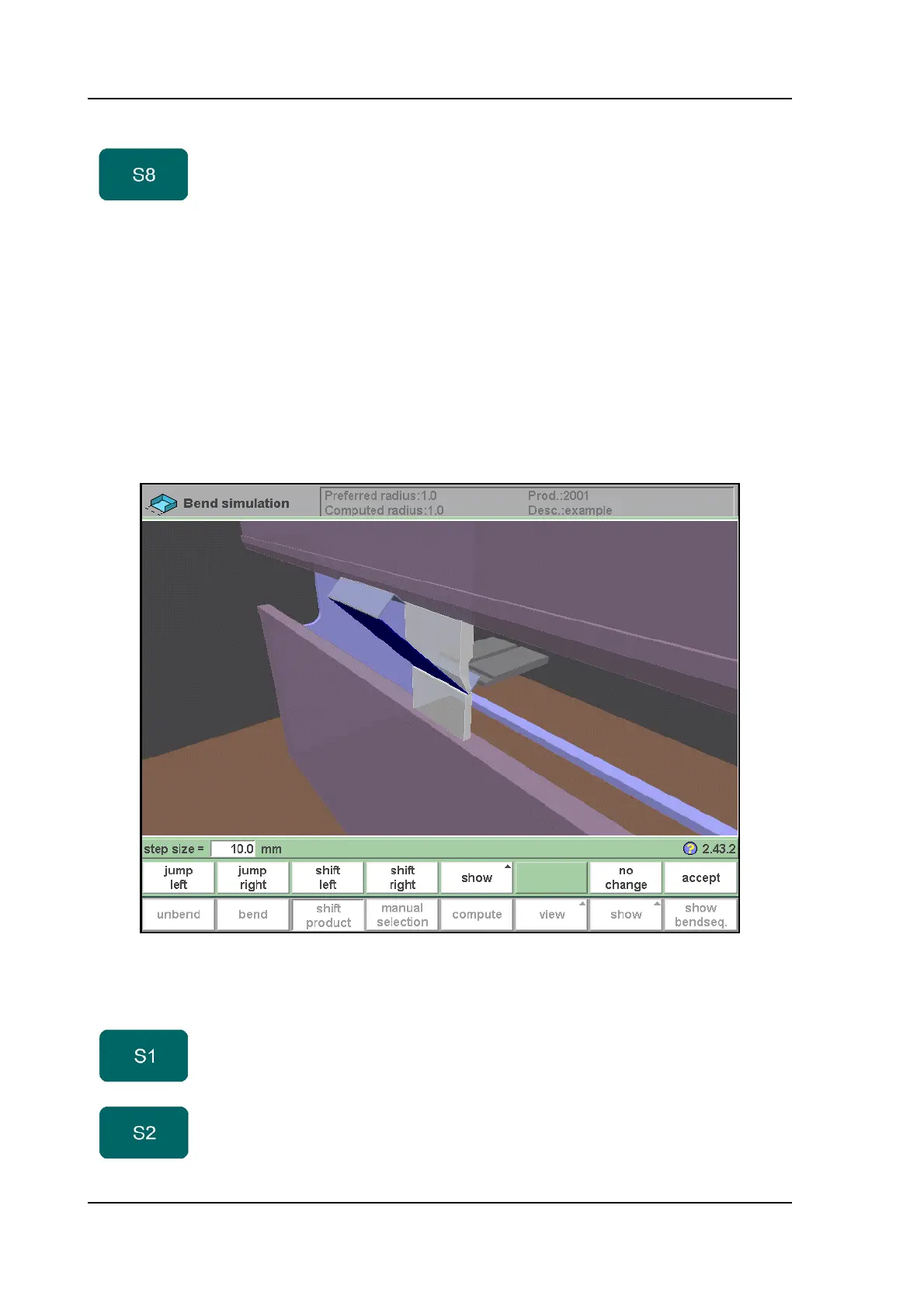

3.4.4. Move product
In the bend simulation menu, the control computes the next possible bend to unbend. The
product is placed between the tools, where there is no collision with the tools or the machine.
In case you want to shift the product under the tool set (which is mounted), you can move the
product by pressing the function key ‘shift product’ (S3). A new window appears.
3.w
accept Save the changes and leave the current screen.
Function keys:
jump left Move the product to another toolset combination.
jump right Move the product to another toolset combination.
Function keys:
