8.11. Adapter
8.u

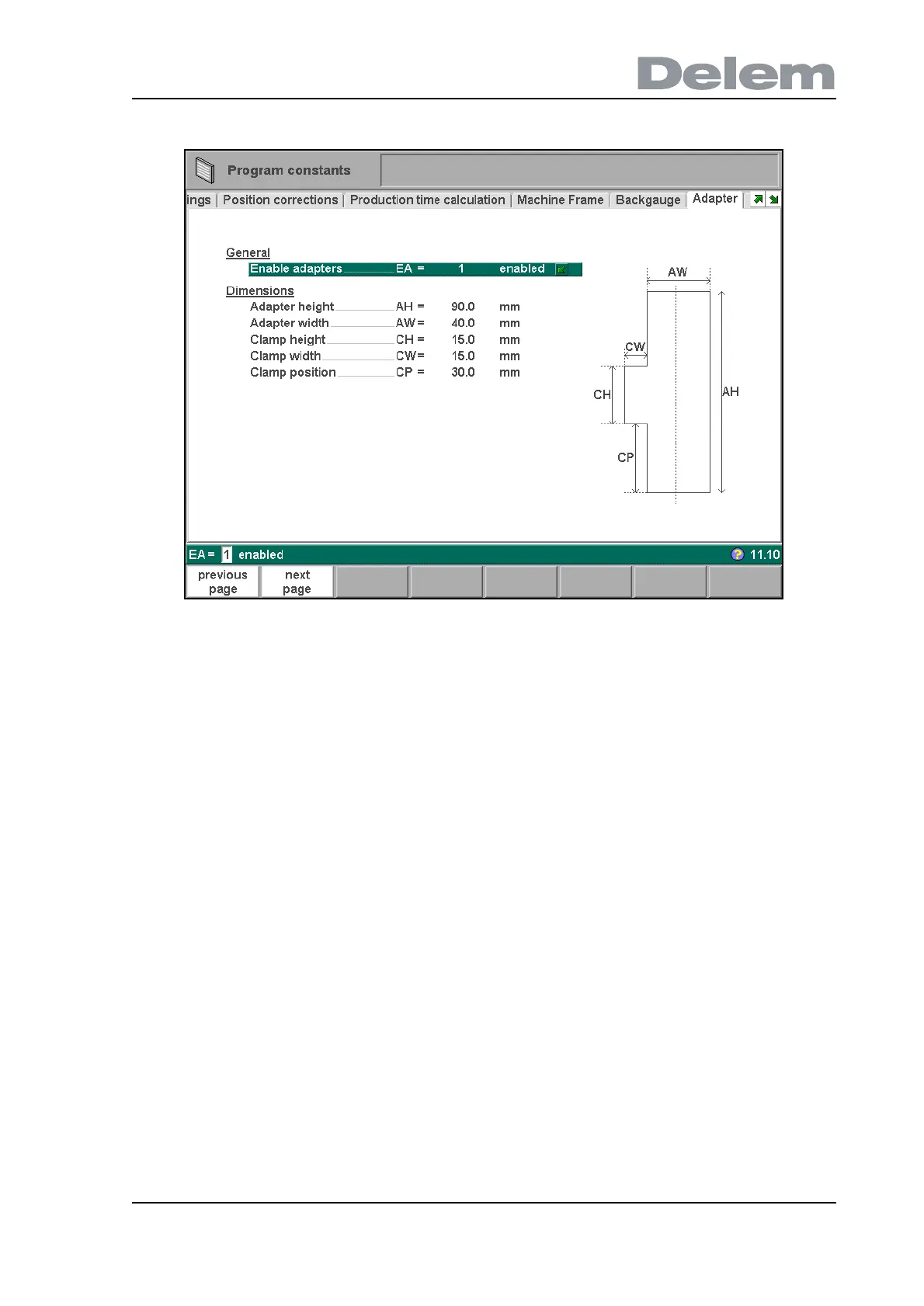

On this page a tool adapter can programmed. The programmed dimensions are used for
collision warnings.
Enable adapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..EA
Enable or disable the possibility to use an adapter.
Disabled(0): adapter cannot be programmed.
Enabled(1): in each program can be chosen whether or not to use an adapter.
Adapter height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..AH
The adapter height. Important: this height value will be used in bend depth calculation.
Adapter width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..AW
The width of the adapter.
Clamp height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..CH
The height of the clamp of the adapter.
Clamp width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..CW
The width of the clamp.
Clamp position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..CP
The position of the clamp, related to the adapter.
