V1108, 9.9
9.2. Manual operation of the axes
9.2.1. Movement procedure

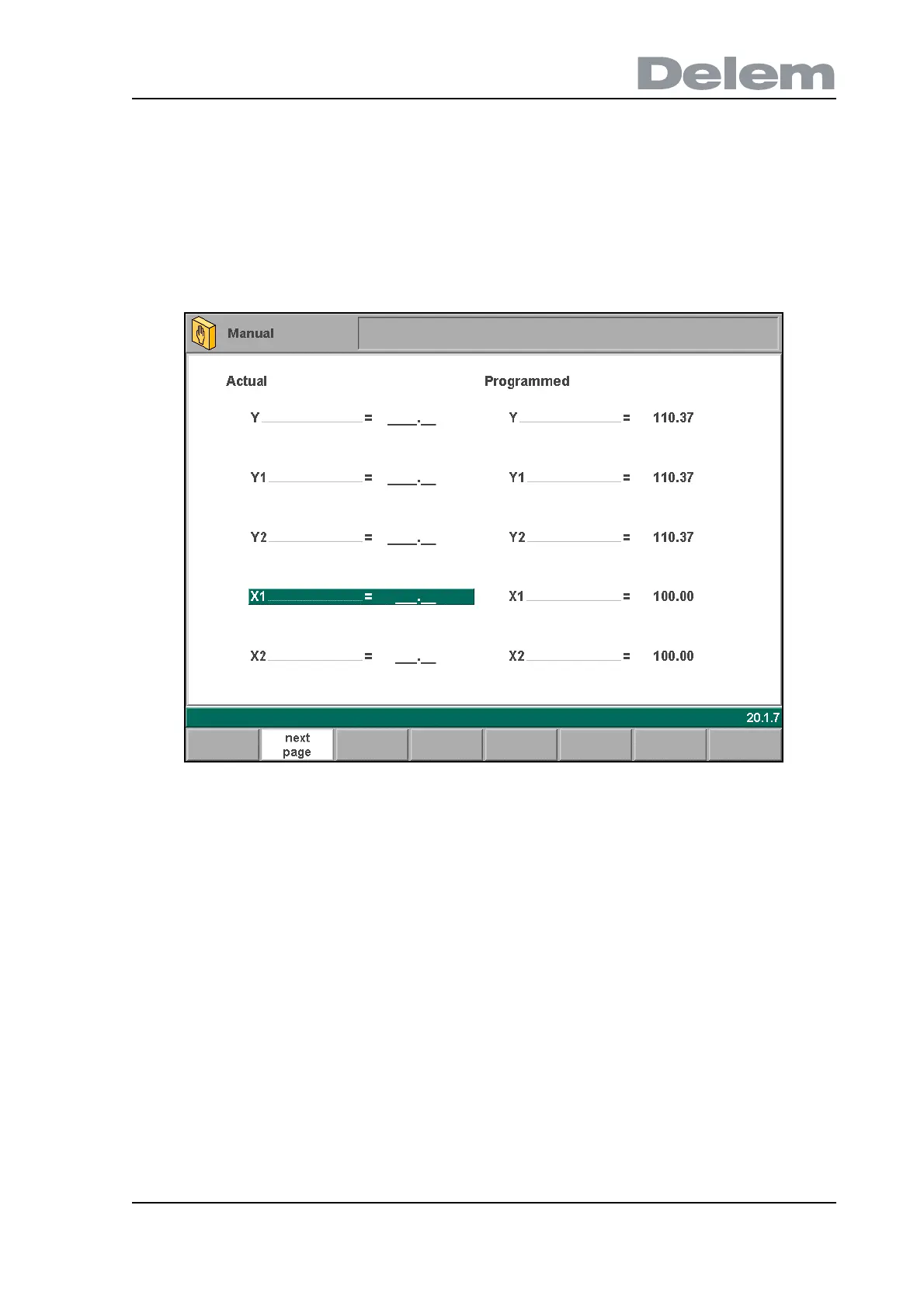

It is possible to move an axis by turning the hand wheel on the front panel of the control. After
pressing the function key ‘manual pos’ in the main screen of manual mode, the following
screen appears:
9.g
Within this mode, any of the shown axes can be moved by turning the hand wheel. The
procedure for moving the axis depends on the axis you wish to move.
- Auxiliary axes:
The control must be stopped (the LED on the ‘Stop’ button is on).
First select the desired back gauge axis with the arrow keys, so that you will see the cursor
bar at the required axis. Then you can move the axis with help of the wheel.
- Y-axis:
The pressbeam can be positioned manually in the same way as the auxiliary axes. However,
for the Y-axis several conditions must be met:
• The control must be started (the LED on the ‘Start’ button is on).
• The ‘adjust’ function must be active, indicated on the screen by "Adjust" in the lower
right-hand corner.
• The Y-axis must be below mute-point.
• A pressing command must be given to the CNC.
