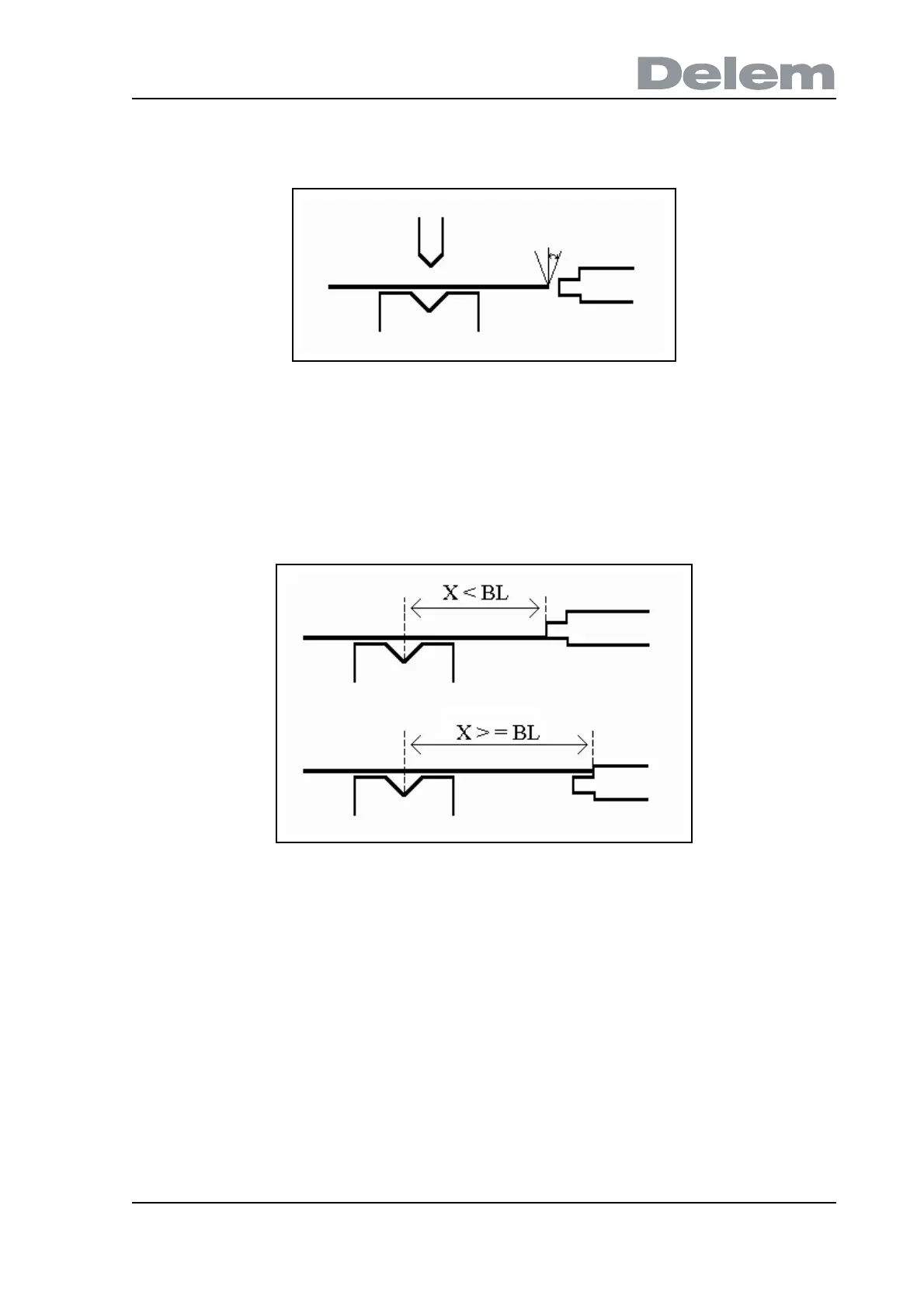

90 Degree tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..CT
The maximum allowed deviation from vertical (90°), when the backgauge is against a
bent angle which is not 90°.
3.r
Lay-on backstop limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..BL
This parameter (mm) is useful in case the pressbrake has been equipped with
backgauge fingers on a moving R-axis, having a so-called “lay-on” construction.
When the length of the sheet at the backside of the machine is greater than this limit, the
X-axis and R-axis positions will be corrected automatically so the sheet will rest on the
backgauge finger.
This is only possible if an automatic R-axis is enabled.
3.s
3.4. The bend sequence in 3D
3.4.1. Introduction
When a tool configuration is available, the bend simulation can be started to determine a bend
sequence for the active product. The bend simulation is started by pressing the function key
‘bend simulation’ in the tool configuration screen.
