V1108, 3.8
3.j

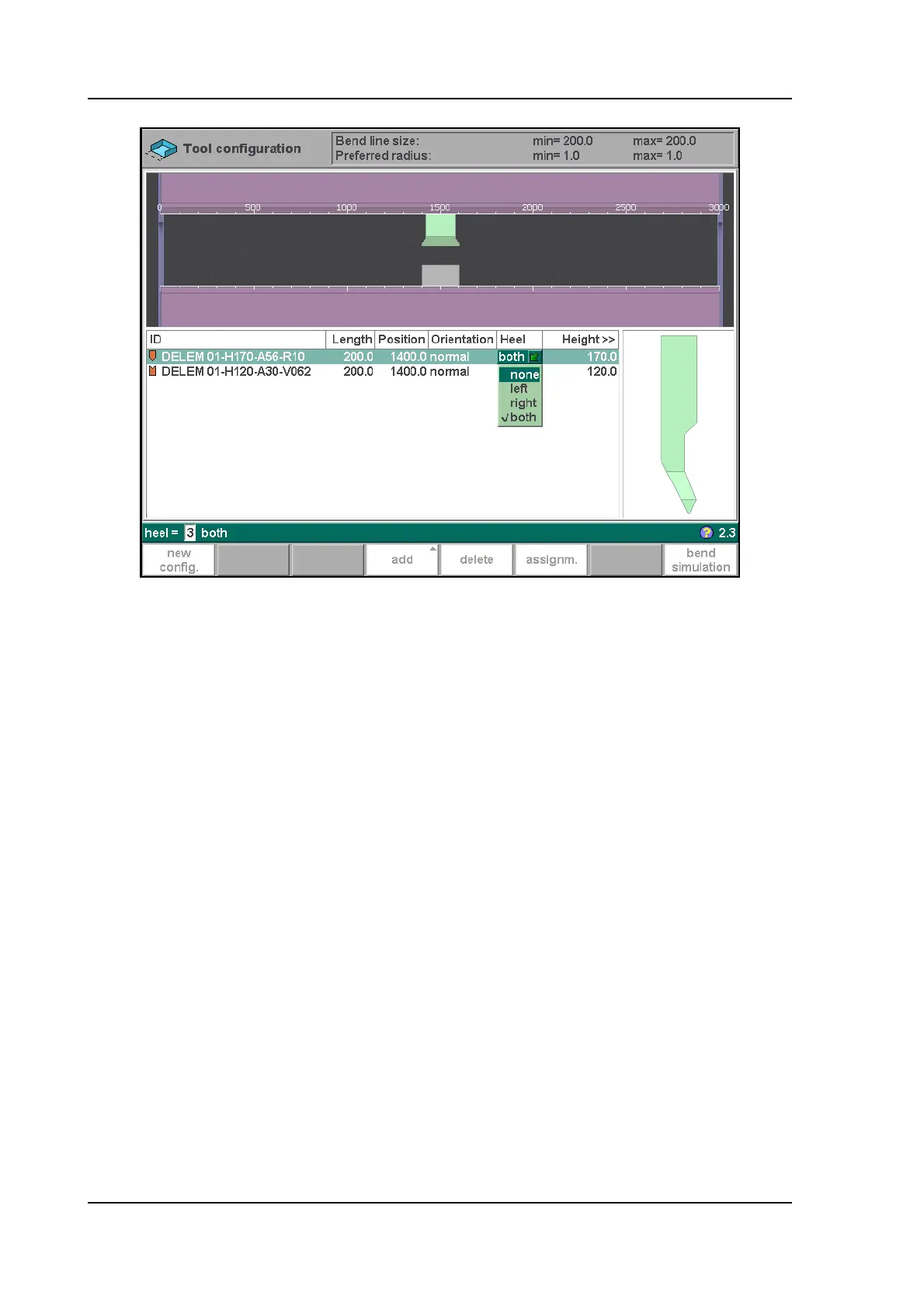

Heels kan only be assigned to a punch if the punch has heel properties. See also chapter 6 for
more information about punches.
3.3. Assignments
3.3.1. Introduction
The Assignments are parameters with which the bend sequence computation is controlled.
The Assignments screen is opened from the tool configuration screen with the function key
‘assignm.’.
Automatic bend sequence computation works with several conditions in order to find an
optimum between a minimum production time, handling possibilities without product/machine
and product/tool collision.
In order to find one of the optimums you must program several computation parameters with
which the bend sequence can be computed.
Some of these parameters are machine-related and some are related to product accuracy,
handling possibilities and turn times.
