V1108, 6.15
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..H
The height of the tool. Important: this height value will be used in bend depth calculation.
V-opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..W
The V-opening of the die.
Angle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..
α
The angle of the die.
Radius. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..RA
The radius of the edges of the V-opening.

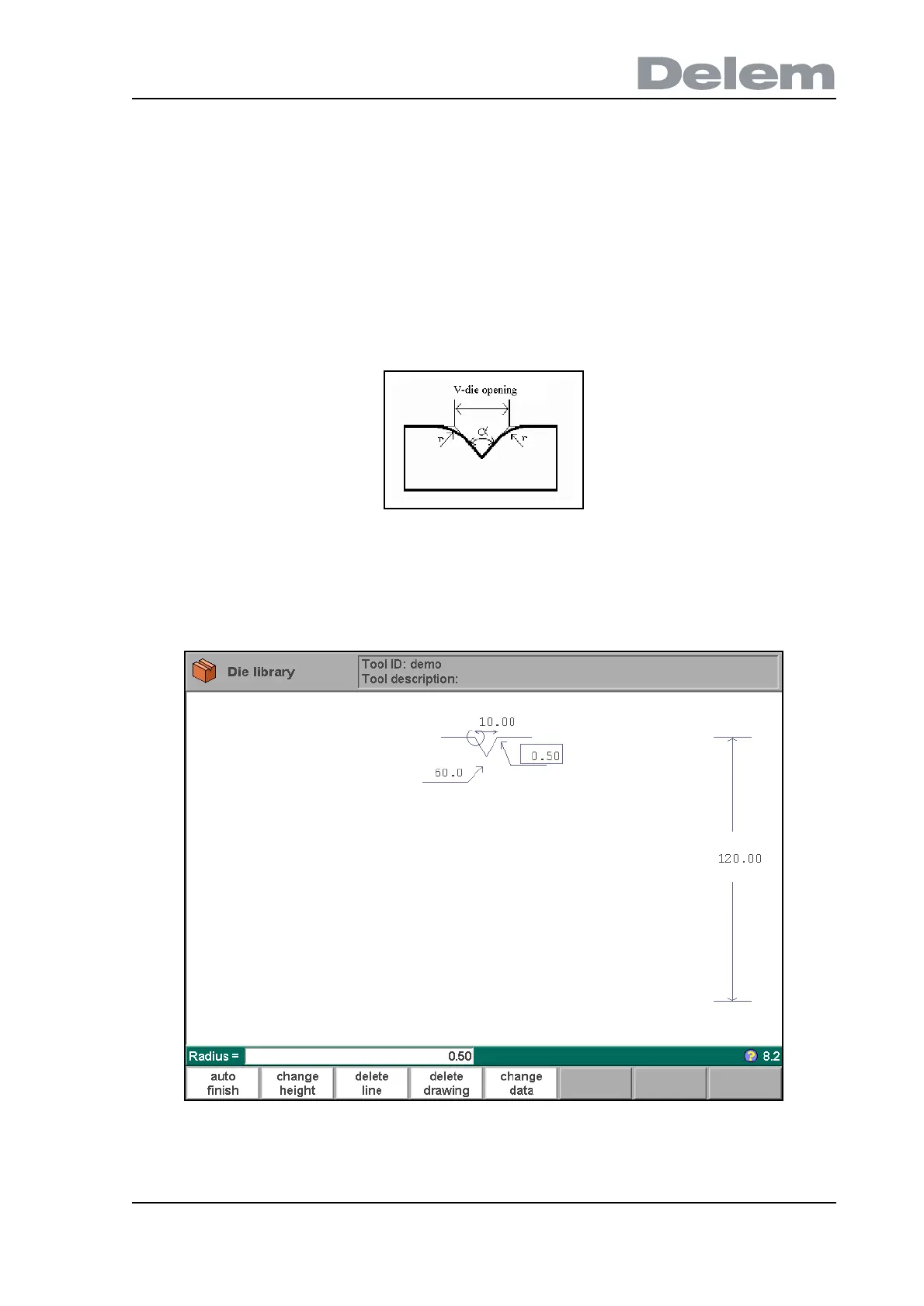

V-die opening:
6.u
The width V is the distance between the touching lines crossing.
After entering these parameters you are ready to draw the important outer dimensions of your
die. The right side of the die is the back gauge position. The mid-position of the V-opening will
be placed on the centre line of the press brake shape.
6.v
• Create a new die with U-shape
