V1108, 2.8
2.3.3. Precision selection
When the drawing cursor is on a line segment, you can select the level of precision for this
line. Enter the properties and go to the parameter ‘precision’.
Precision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P
Select the level of precision for a line.
Normal: achieve normal accuracy for this segment.
High: at bend sequence computation the back gauge stop position will be chosen to get
the highest possible precision for this line interval.
Closing dimension: at bend sequence computation the back gauge stop position will be
chosen to get the resulting tolerances in this line interval.

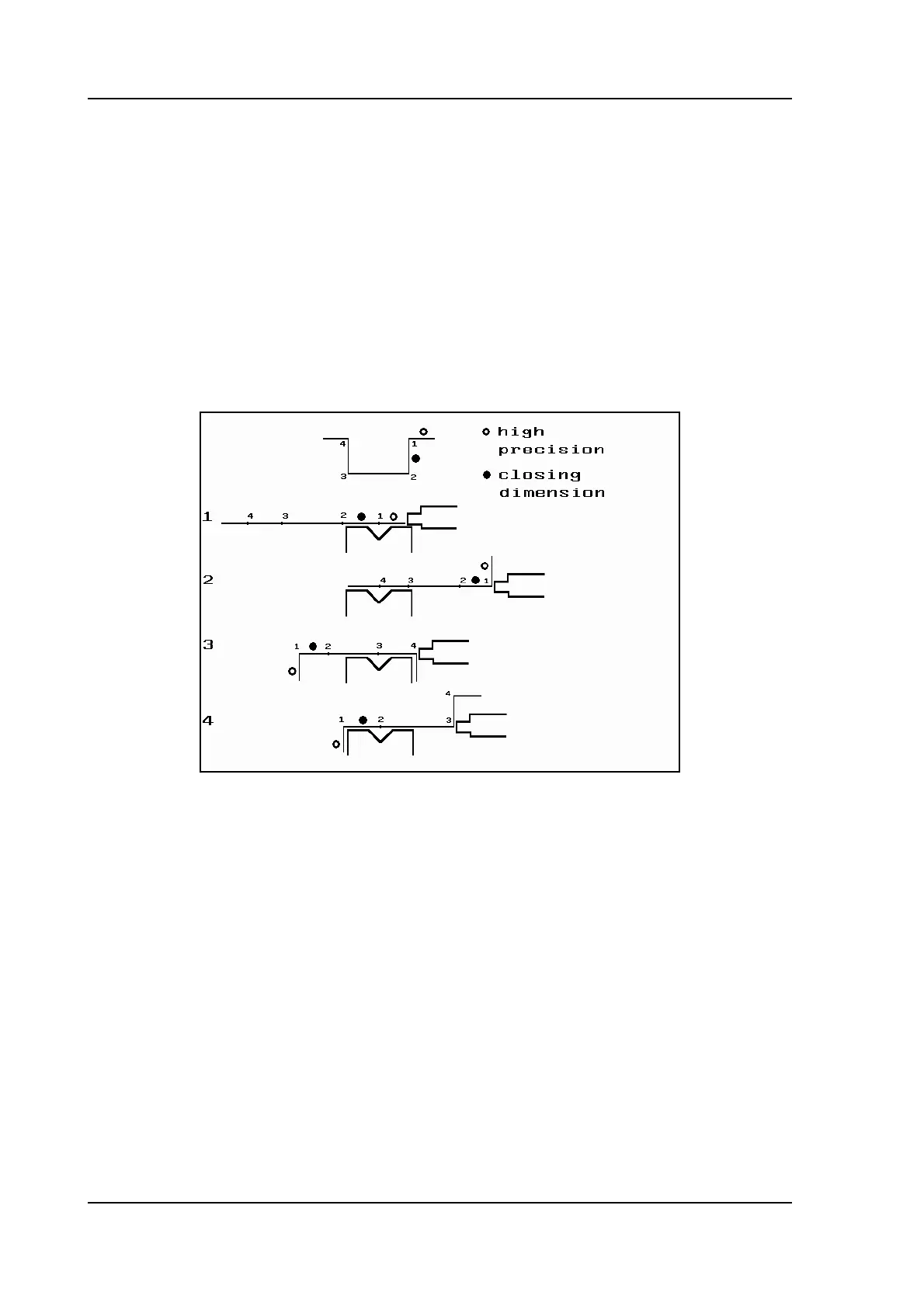

Example:
2.h
Line interval marked with the open circle should be, if possible, directly placed between back
stop and the centre of the die.
Notes:
Specifying line intervals with high precision and closing dimensions may result in longer
production time.
The precision parameter will have priority over the "front extend ratio", if that is set to "comply
if possible". See section 3.3.
