V1108, 8.14
8.l

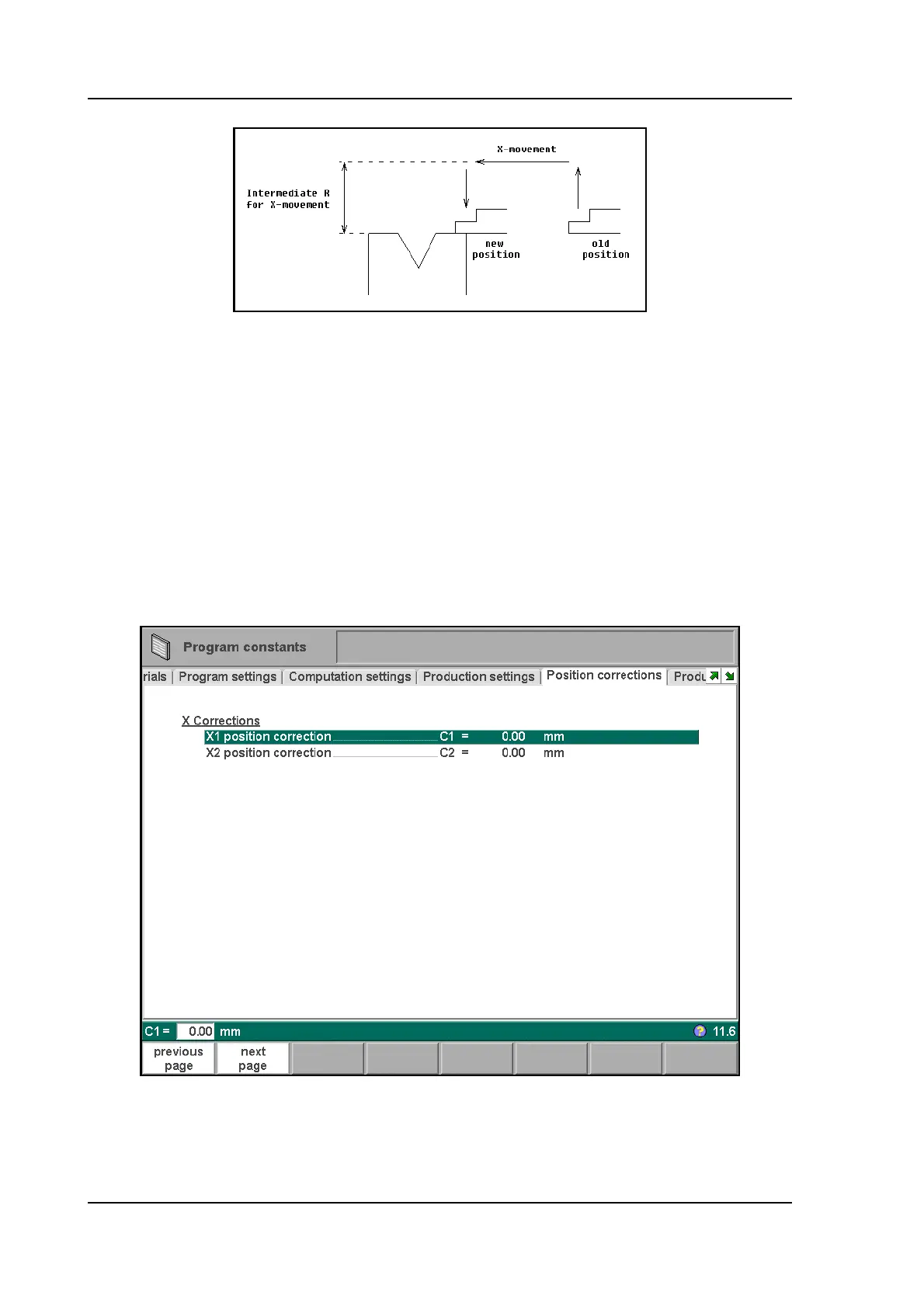

The sequence will be as follows:
• The R-axis is moved to the intermediate position;
• then the X-axis is moved to its intended position;
• finally the R-axis is moved to its intended position.
The safety zone of the die is defined as follows:
SZ = X-safe + SD
Explanation:
SZ = safety zone
X-safe = safety zone of the die
SD = safety distance, defined by machine supplier
8.7. Position corrections
8.m
X position correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CX
When the actual, mechanical axis position is not corresponding with the displayed value
than is it possible to correct the position with this parameter. Program the calculated
