V1108, 6.17

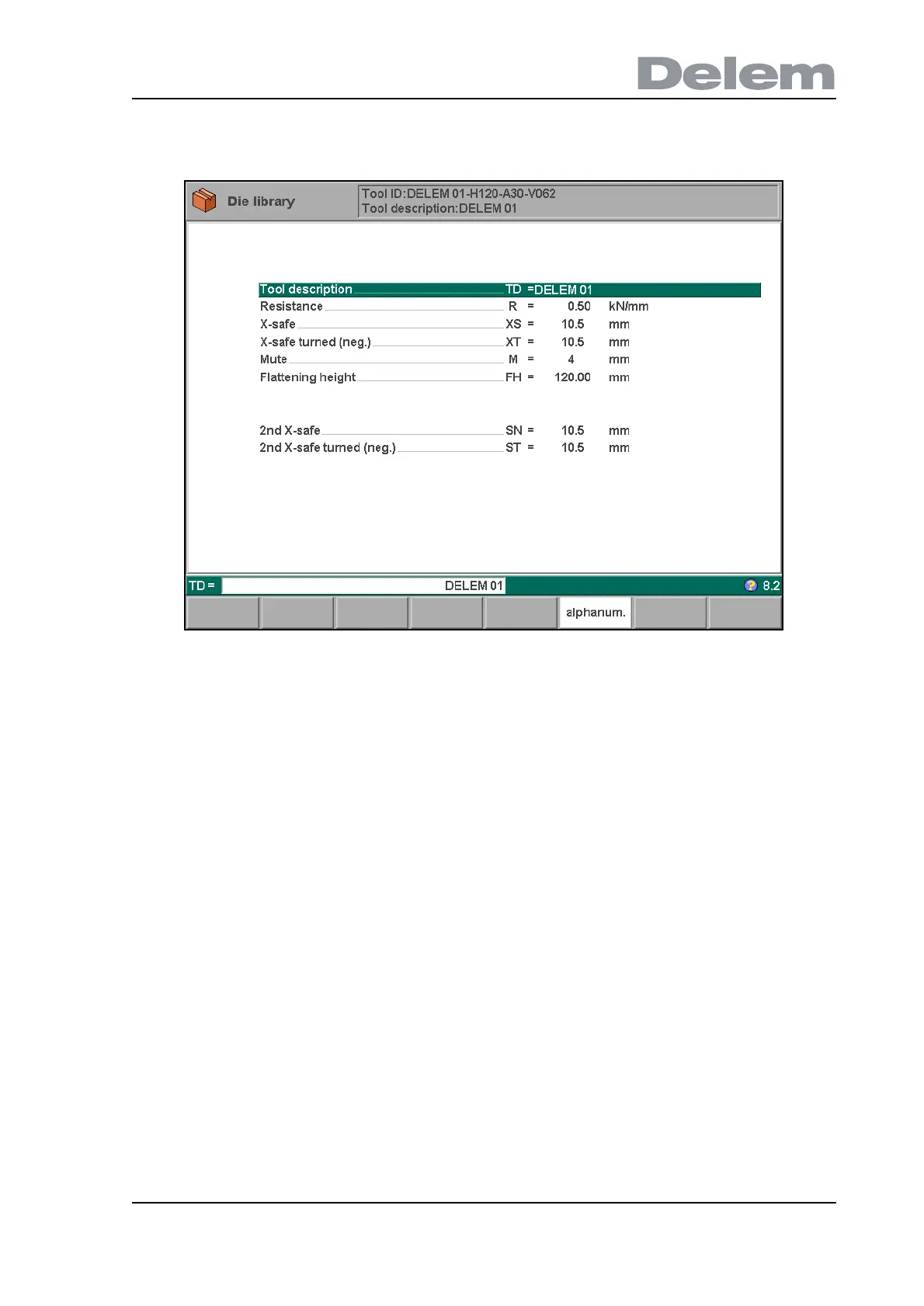

6.3.2. Specific die data
6.x
Tool description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..TD
A name or description of this tool. The maximum length is 25 characters.
Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..R
Maximum allowable force on the die in kN/mm.
X-safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..SN
Calculated safety zone (minimum X-axis value), which will be used in the case a R-axis
is mounted. This to prevent finger to die collision. The indicated minimum value is
computed automatically from the die dimensions as follows:
X-SAFE = FS + ½ V in which:
FS = flat section on the back side of the V-grove
V = opening value
In this formula also a small additional safety value (0.5 mm) has been added.
X-safe turned (negative) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..ST
This safety value will be active if the die is used in the turned position. In this situation
parameter ST will be used as safety zone for the backgauge.
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..M
Muting distance. Distance above the sheet at which the speed change takes place.
