V1108, 10.9
• Bumping correction
With this function a general correction for a radius bend can be entered. This function can be
activated when the cursor is on the parameter for angle correction (‘corr.
α1/α2’). It is only
available if a product is loaded that contains a radius bend.

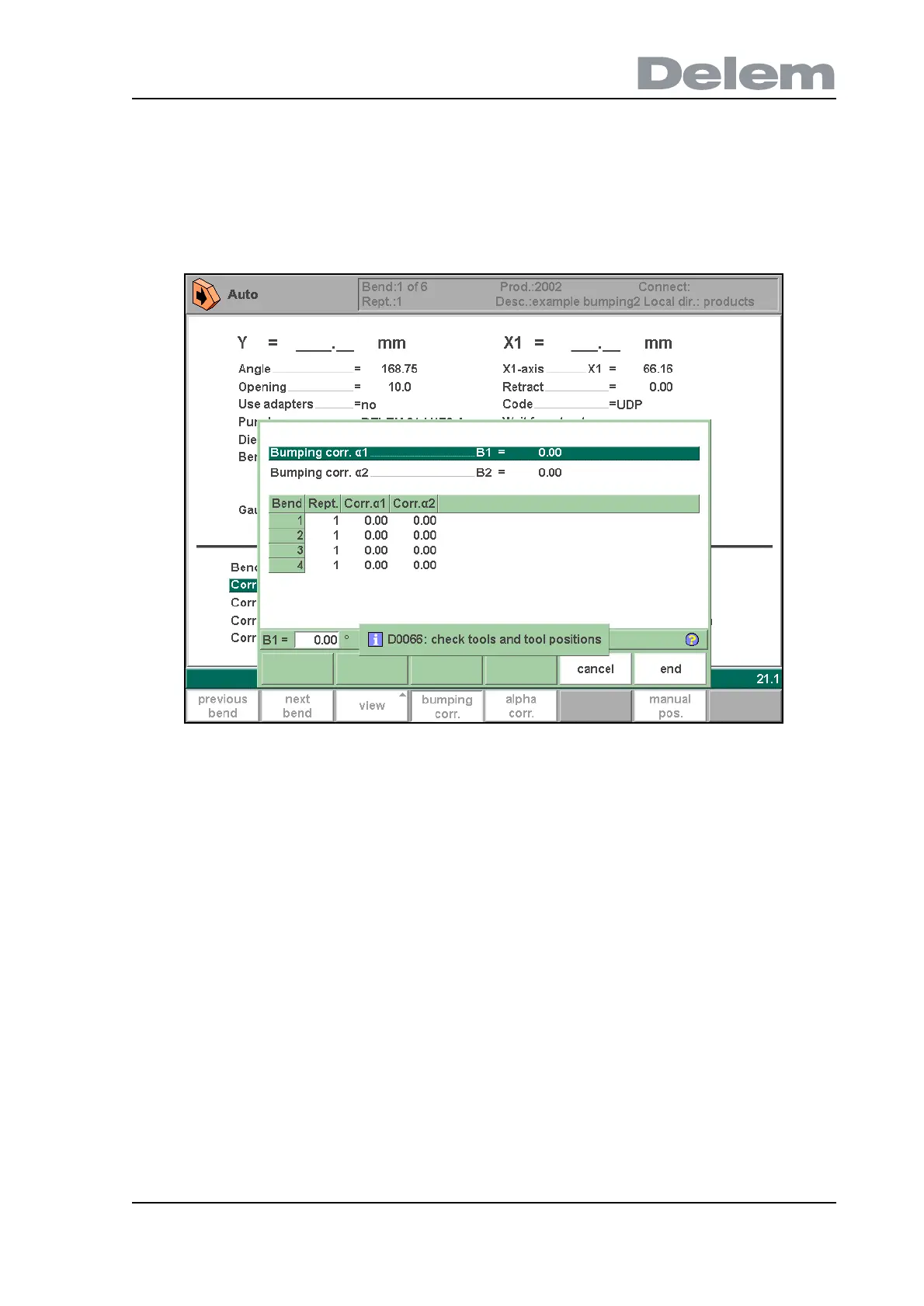

When the function is activated, a new window appears in which the correction can be entered.
10.h
When the general correction of an angle is altered, all individual corrections are recalculated.
When any of the individual corrections is altered, the general correction is recalculated.
Bumping corrections can be programmed independently for both sides,
α1 and α2.
When the general correction
α1 is changed, it is automatically copied to α2 and as a result, all
separate corrections for
α2 are recalculated. To change correction values of α2, move to
correction
α2 or one of the separate corrections of α2.
