V1108, 8.13
Part support return speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..PR=
Return speed of the part support after a bending. The speed value is programmed as a
percentage of the maximum speed.
Only available when there is a part support on the system.
Part support extra angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..PE=
Extra angle for the part support unit. This angle value is added to the part support angle
position at the end of decompression. So while the pressbeam moves up to its upper
dead point, the part support moves to this angle. When the beam has reached upper
dead point, the part support will move back to zero.
Only available when there is a part support on the system.
Intermediate X for Z-movement . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..XS=
Temporary safe value for the X-axis, to avoid collision as a result of movement along the
Z-axis. With this parameter a standard safety zone for the X-axis is defined, which is
valid for all programs. The value 0 disables this functionality. This parameter should not
be confused with the parameter ‘X-safety’ of each die.
This parameter is especially useful when several dies of different sizes are placed on
the machine. In that situation, this intermediate X-value should be larger than the safety
zone of the largest die that is installed.

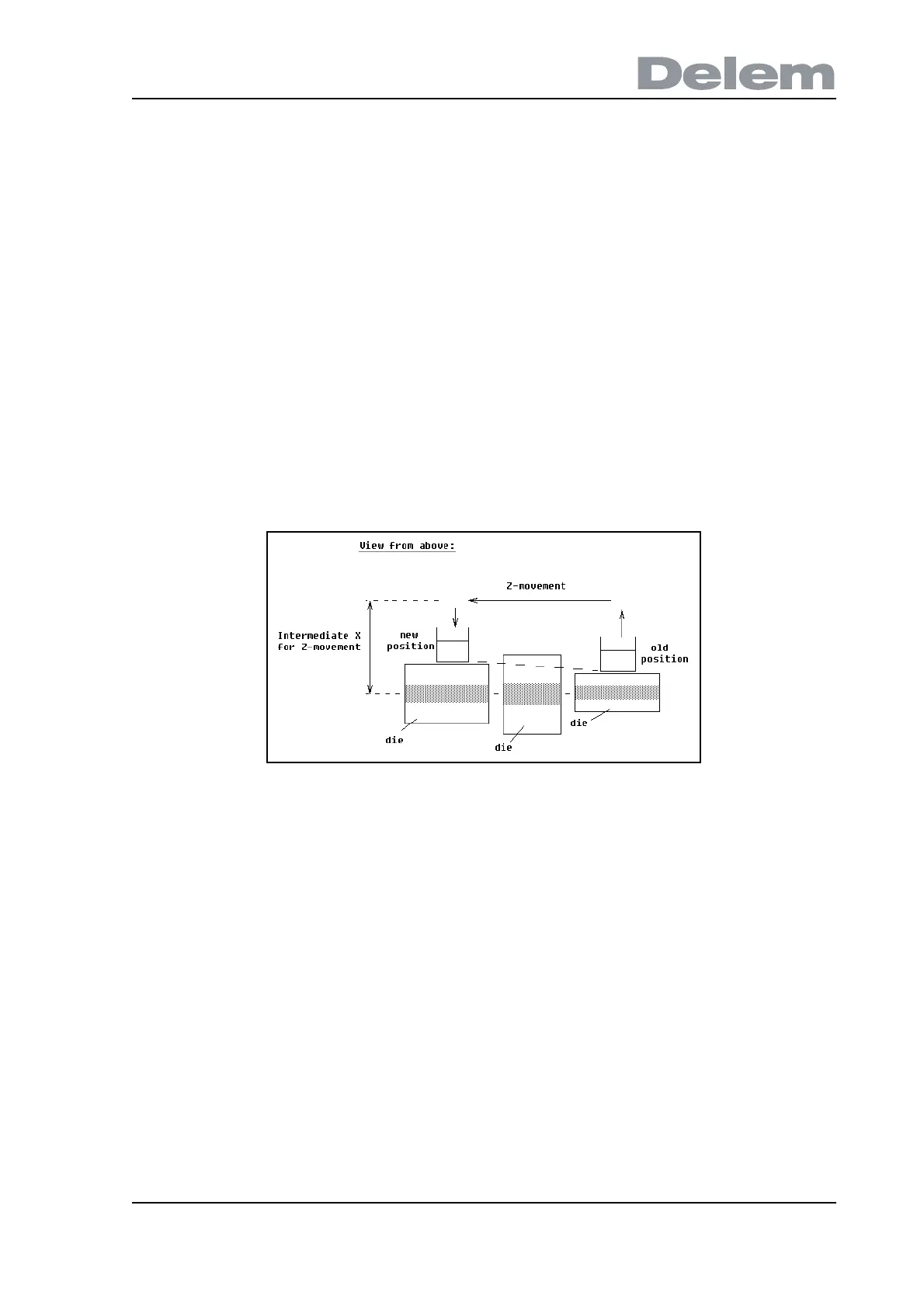

8.k
When the back gauge has to move to a different Z-position, it is checked whether the current
X-position is safe. We can distinguish the following situations:
• Old X-axis position as well as new position outside the zone: X- and Z-axis movements
happen at the same time, no change.
• Old X-axis position outside, new position inside the zone: back gauge is positioned on
Z-axes first, the X-movement starts when the Z-axes are in position.
• Old X-axis position inside, new position outside the zone: back gauge starts along X-
axis, Z-movement is started when X-axis is outside the zone.
• Old X-axis position as well as new position inside the zone: back gauge moves to the
intermediate X-axis position, then the Z-movement is started. When the Z-axes are in
position the X-movement is started to move the back gauge to its new position (see
figure 8.k.).
Intermediate R for X-movement . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..RS=
Temporary position for the R-axis, to avoid collision as a result of movement of the X-
axis. The value 0 disables this functionality. When programmed not equal to zero this
position will be active when the X-axis has to move inside the safety zone of the die.
