V1108, 4.11
Parallelism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..Y2

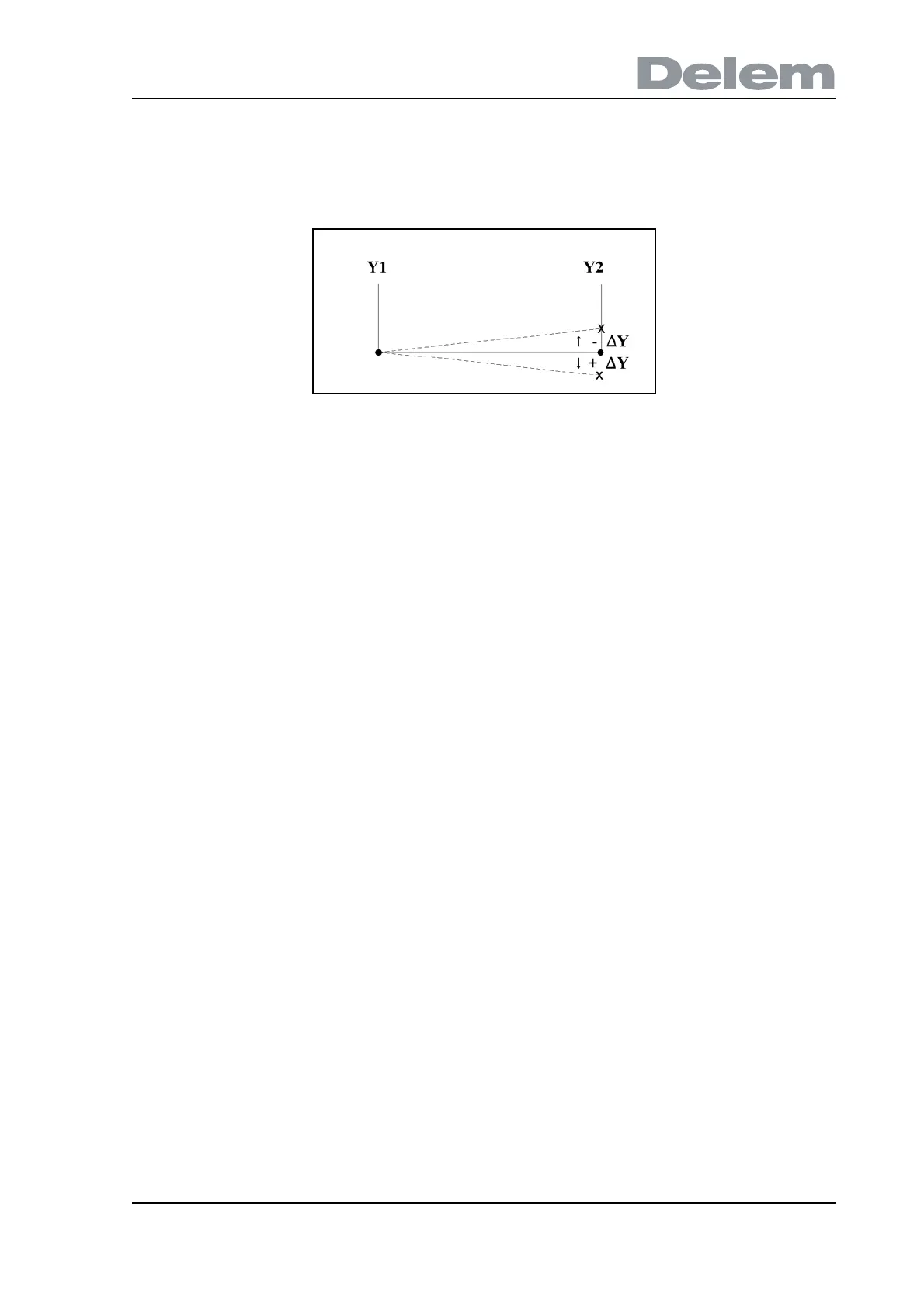

Difference of left- and right hand side cylinder (Y1 and Y2). When positive, right hand
side lower. When negative, right hand side higher. The programmed value is active
below the clamping point.
4.g
Repetition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..CY
0 = bending is skipped
1 through 99 = the number of times this bending will be repeated.
Wait for retract . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..WR
In case of a retract, let the Y-axis wait until the retract is finished, yes or no.
0 = No: the retract is started when the Y-axis passes the clamping point, the Y-axis does
not stop.
1 = Yes: when the Y-axis reaches the clamping point, the Y-axis is stopped and the
retract is started. When the retract is completed, the Y-axis moves on.
Step change code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..CX
Programmable parameter which determines when the parameter values for the next
bending will be active. The following settings are possible.
0 = ER: Bending number change (step change) at end of decompression (next bend
parameters active).
1 = MUTE: Step change at muting position when the beam moves in opening direction.
2 = UDP: Step change at upper dead point.
3 = UDP STOP: Step change at upper dead point without movement of any axis and the
control goes to "stop".
4 = EXTERNAL: Step change if C-input signal becomes active, without movement of the
beam. When you still have a beam movement there will be no retract function of the
back gauge performed. See also code 5.
5 = UDP EXTERNAL: Step change if C-input signal becomes active and the beam is in
the upper dead point. Now you may move the beam and the retract function of the back
gauge will be performed.
Delay time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..TX
Programmable delay time before step change (0-30sec)
Force. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..P
Max. adjusted force during pressing (automatically computed).
Dwell time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..T
Holding time of punch at bending point.
