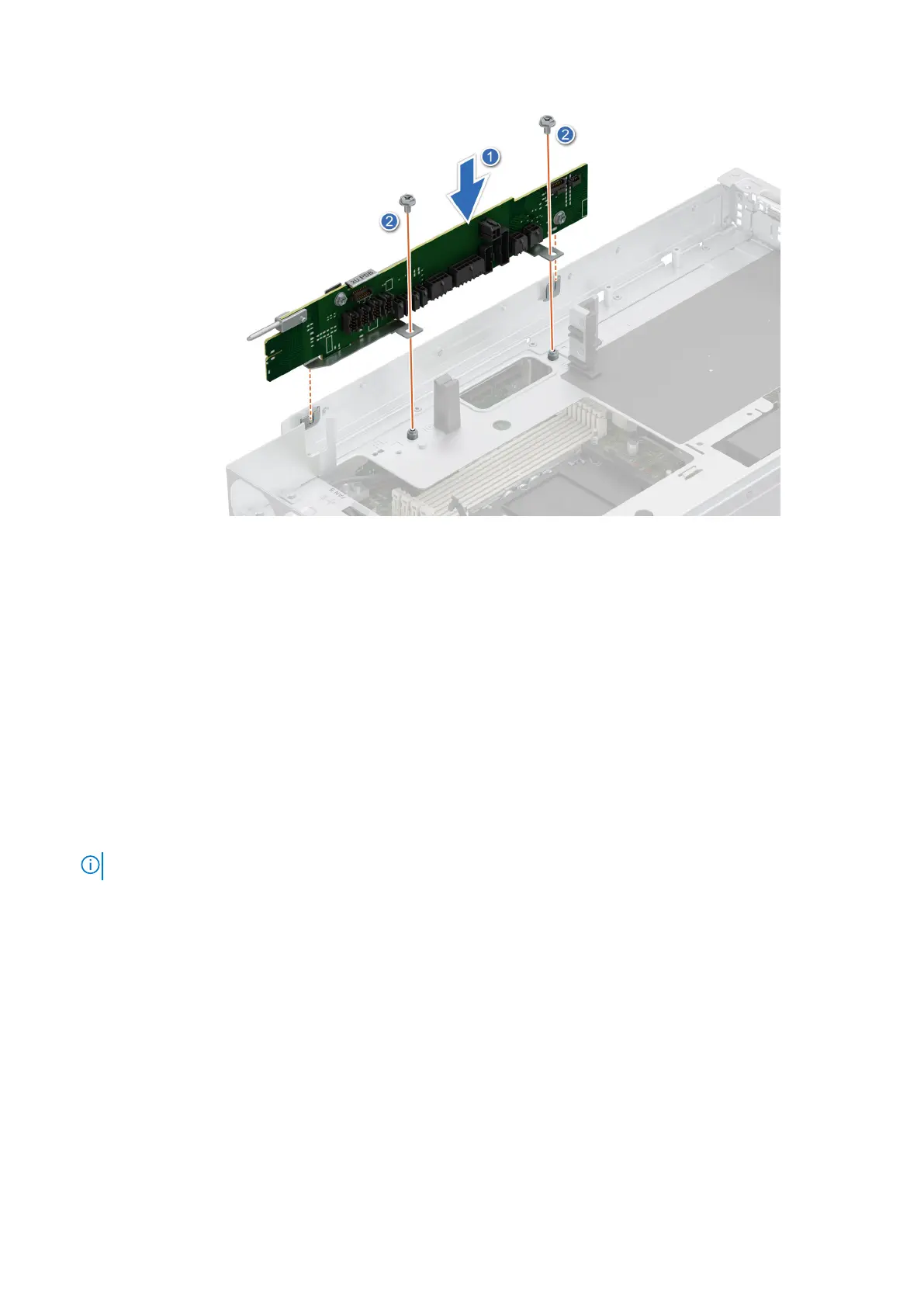

Figure 68. Installing the 2U power distribution board
Next steps
1. Connect the cables connected from cooling fans and system board to the 2U power distribution board (PDB).
2. Install the Riser 1
3. Install the air shroud
Removing the 1U power distribution board
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the 2U top sled from the 2U node.
4. Disconnect the cables connected from cooling fans and system board to the 1U power distribution board (PDB).
NOTE: Observe the routing of the cable as you remove it from the system.
Steps
1. Using a Phillips 2 screwdriver, loosen the screws that secure the PDB to the system.
