Dell PowerEdge XR8620t

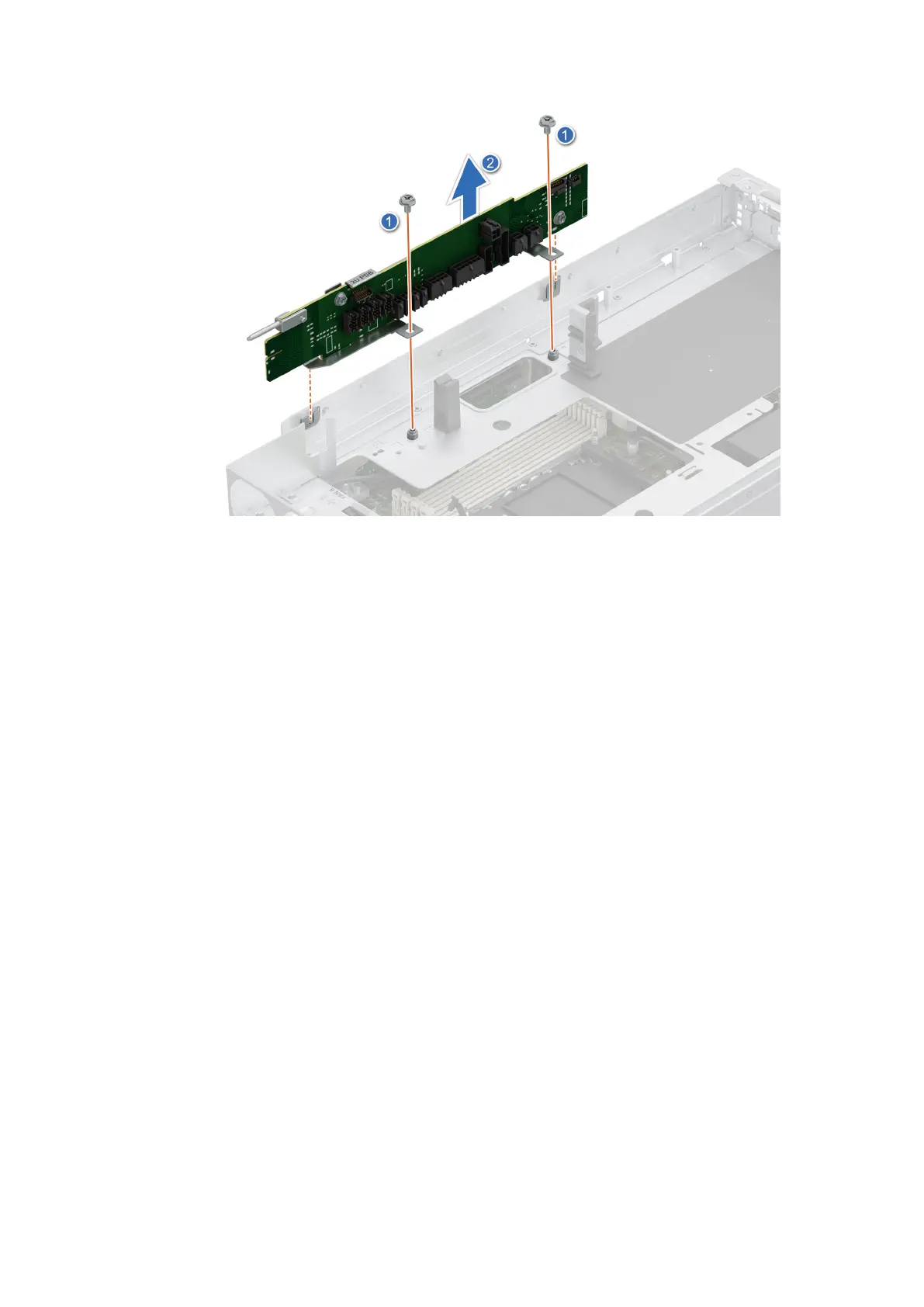

Figure 67. Removing the 2U power distribution board
2. Lift the board to remove it from the system.
Next steps
Replace the power distribution board.
Installing the 2U power distribution board
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
4. Remove the Riser 1.
Steps
1. Align the slots of the Power distribution board (PDB) with the fix hook on the 2U sled.
2. Using a Phillips 2 screwdriver, tighten the screws to secure the PDB on the 2U sled.
Installing and removing system components
99
