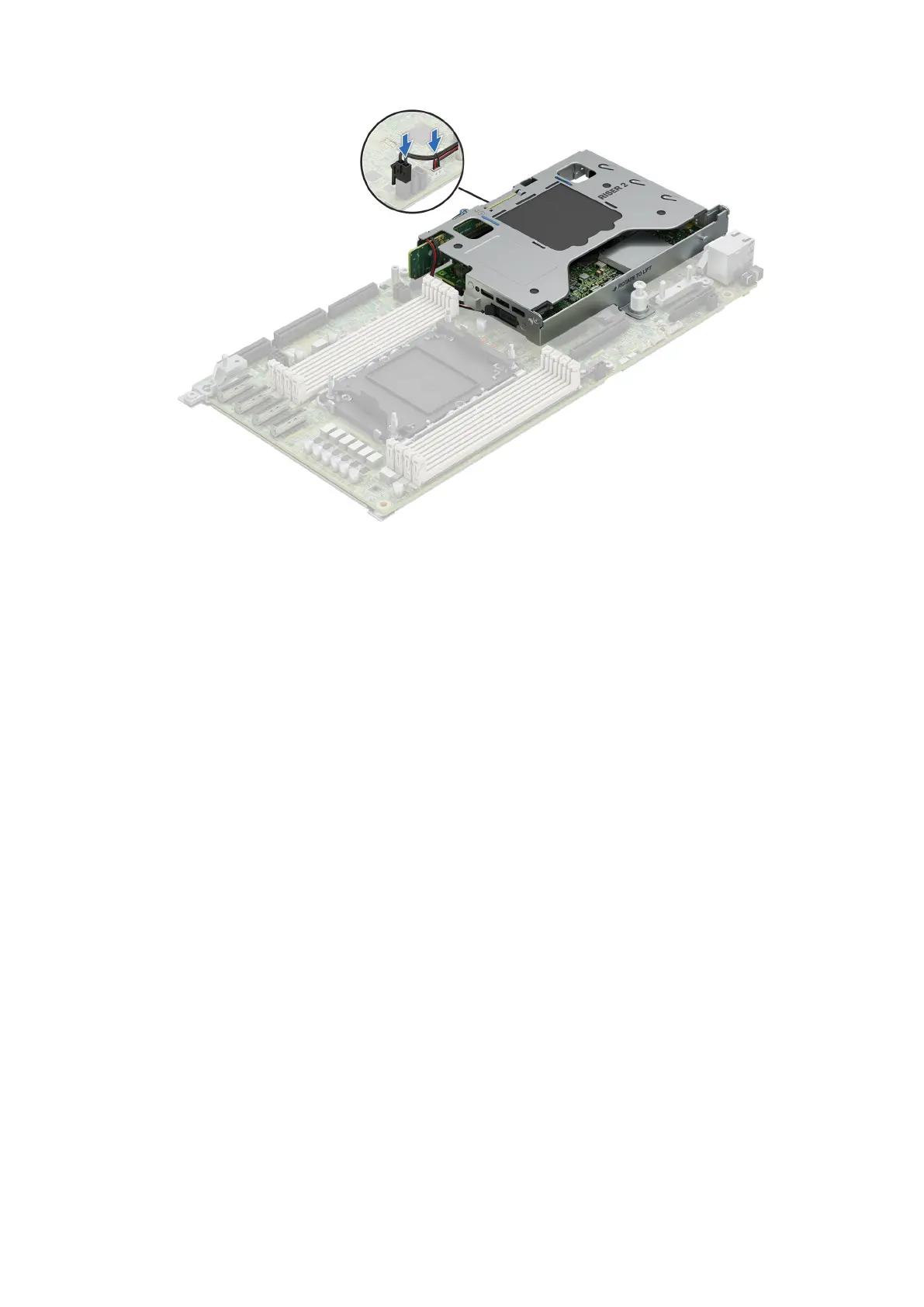

Figure 58. Connecting cables from Riser 2 to system board
Next steps
Install the 2U top sled on the 2U node.
Removing the PCIe card from Riser
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
4. Remove the M.2 direct riser
5. Remove the side cover
Steps
1. Using both hands, hold the PCIe card by the edges and pull the card away from the riser slot.
