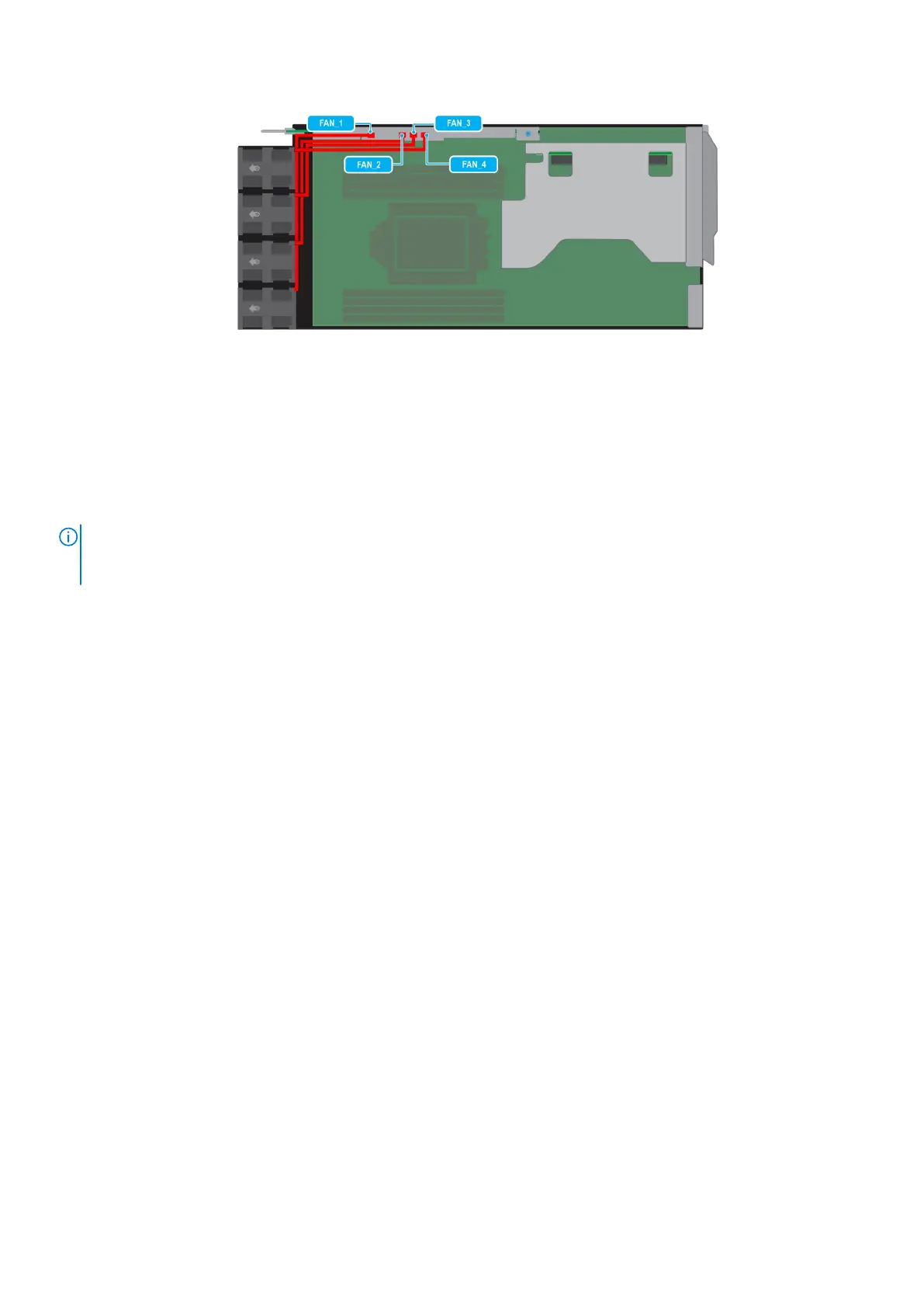

Figure 49. 1U sled fan cable routing
Next steps
Install the 2U sled on 1U node.
Expansion cards and expansion card risers
NOTE: When an expansion card is not supported or missing, the iDRAC and Lifecycle Controller logs an event. This does
not prevent your system from booting. However, if a F1/F2 pause occurs with an error message, see Troubleshooting
expansion cards section in the PowerEdge Servers Troubleshooting Guide at PowerEdge Manuals.
84 Installing and removing system components
