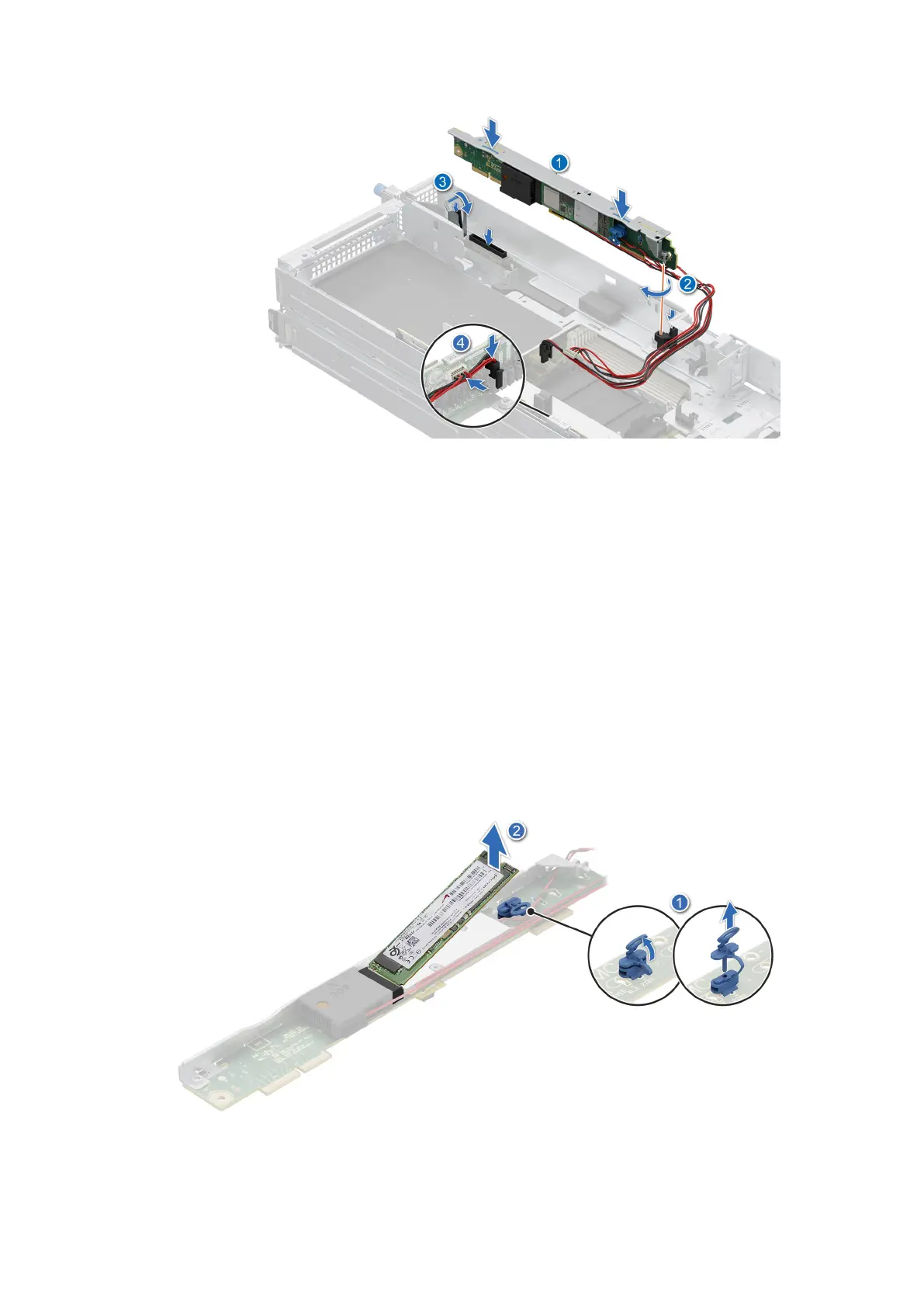

Figure 33. Installing the ROR N1
Next steps
Follow the procedure listed in After working inside your system.
Removing the NVMe module from the ROR N1 module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. To remove the NVMe module from the ROR N1 module, rotate the latch to a horizontal position and then pull out the engage
pin.
2. Pull the NVMe module to remove it from the ROR N1 module.
Figure 34. Removing the NVMe module from ROR N1 module
