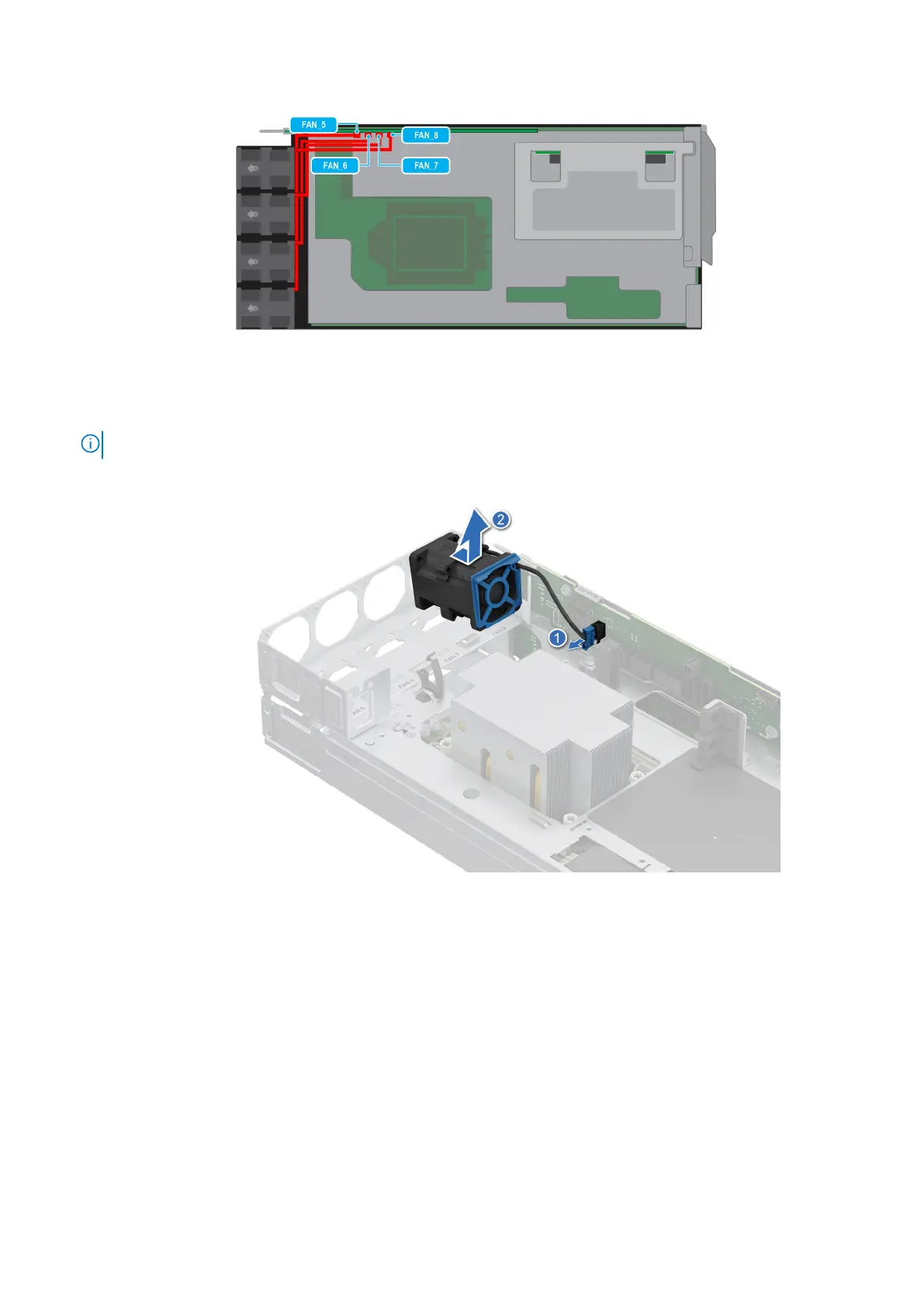

Figure 42. 2U sled fan cable routing
2. Pull slightly to disengage the fan cable from the fan guard and then lift the fan module out of the fan cage.
NOTE: The airflow directional arrow outward on the fan indicates Reverse-Air-Flow (RAF).
Figure 43. Removing a cooling fan
Next steps
1. Replace a fan
2. Install the air shroud
Installing a cooling fan on 2U sled
Prerequisites
1. Follow the safety guidelines listed in Safety Instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
80
Installing and removing system components
