Air shroud
Removing the air shroud
Prerequisites
CAUTION: Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system .
Steps
Holding the air shroud at both the ends, and lift the air shroud out of the system.

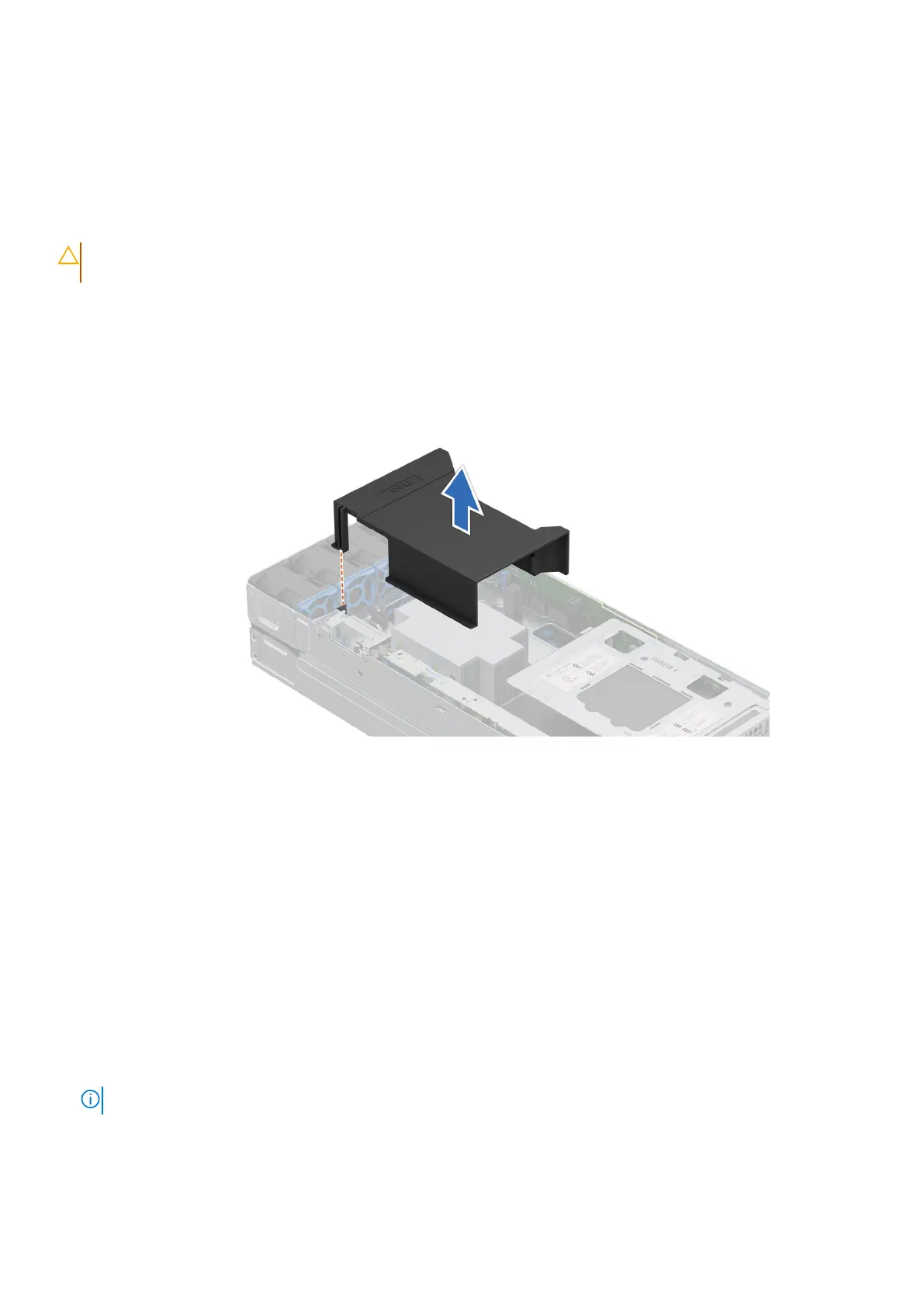

Figure 21. Removing the air shroud
Next steps
Replace the air shroud.
Installing the air shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system .
Steps
1. Align the guide pins on the system with guides on the air shroud.
2. Lower the air shroud into the system until it is firmly seated.
NOTE: Ensure the air shroud and cables do not interfere each other.
Installing and removing system components 63
