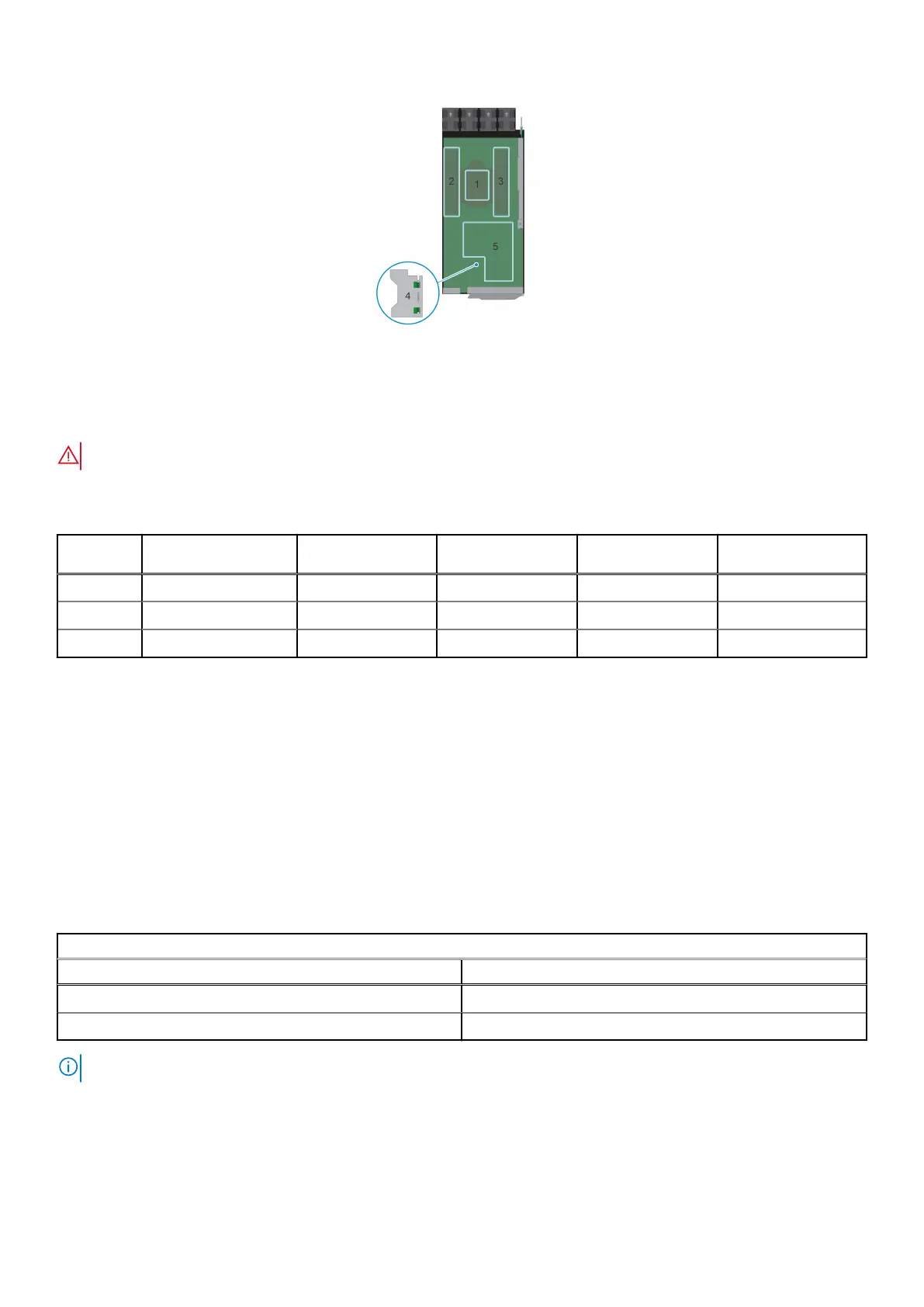

Figure 12. Zone Definition and Location - Lower U
Expansion card riser specifications
WARNING: Consumer-Grade GPU should not be installed or used in the Enterprise Server products.
The PowerEdge XR8620t system supports three PCI express (PCIe) expansion card risers.
Table 10. Expansion card slots supported on the 2U sled
PCIe slots Expansion card riser
Processor
connection
Height Length Slot width
Slot 1 R1A Processor 1 Full Height Half Length x16 PCIe (Gen 5)
Slot 2 R1A Processor 1 Full Height Half Length x16 PCIe (Gen 5)
Slot 3 R2A Processor 1 Full Height Half Length x16 PCIe (Gen 5)
Drives
The PowerEdge XR8620t system supports either 2 x M.2 NVMe SSDs (M.2 2280 and M.2 22110) on the M.2 riser or 2 x M.2
NVMe SSDs (M.2 2280) installed on BOSS-N1 card.
Ports and connectors specifications
USB ports specifications
Table 11.
PowerEdge XR8620t USB specifications
Front
USB port type No. of ports
USB 3.0-compliant port One
iDRAC Direct port (Micro-AB USB 2.0-compliant port) One
NOTE: The micro USB 2.0 compliant port can only be used as an iDRAC Direct or a management port.
Network port specifications
The PowerEdge XR8620t system supports two (optional) SFP28 LAN on Motherboard (LOM) ports.
Technical specifications
21
