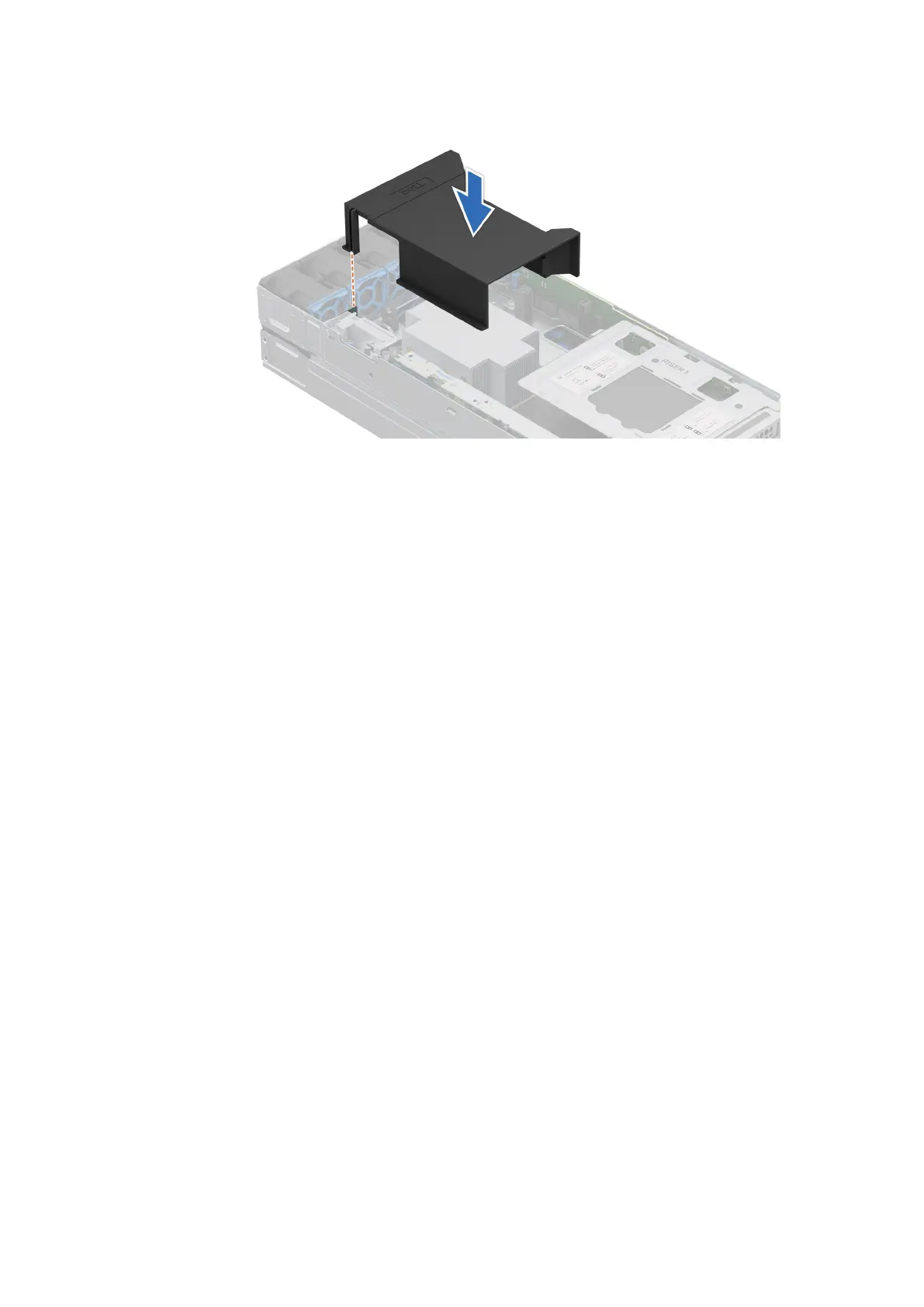

Figure 22. Installing the air shroud
Next steps
Follow the procedure listed in After working inside your system.
M.2 direct riser module
Installing the thermal pad to M.2 direct riser module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Peel off the release paper and paste thermal pad onto the M.2 direct riser module.
64
Installing and removing system components
