Dell PowerEdge XR8620t

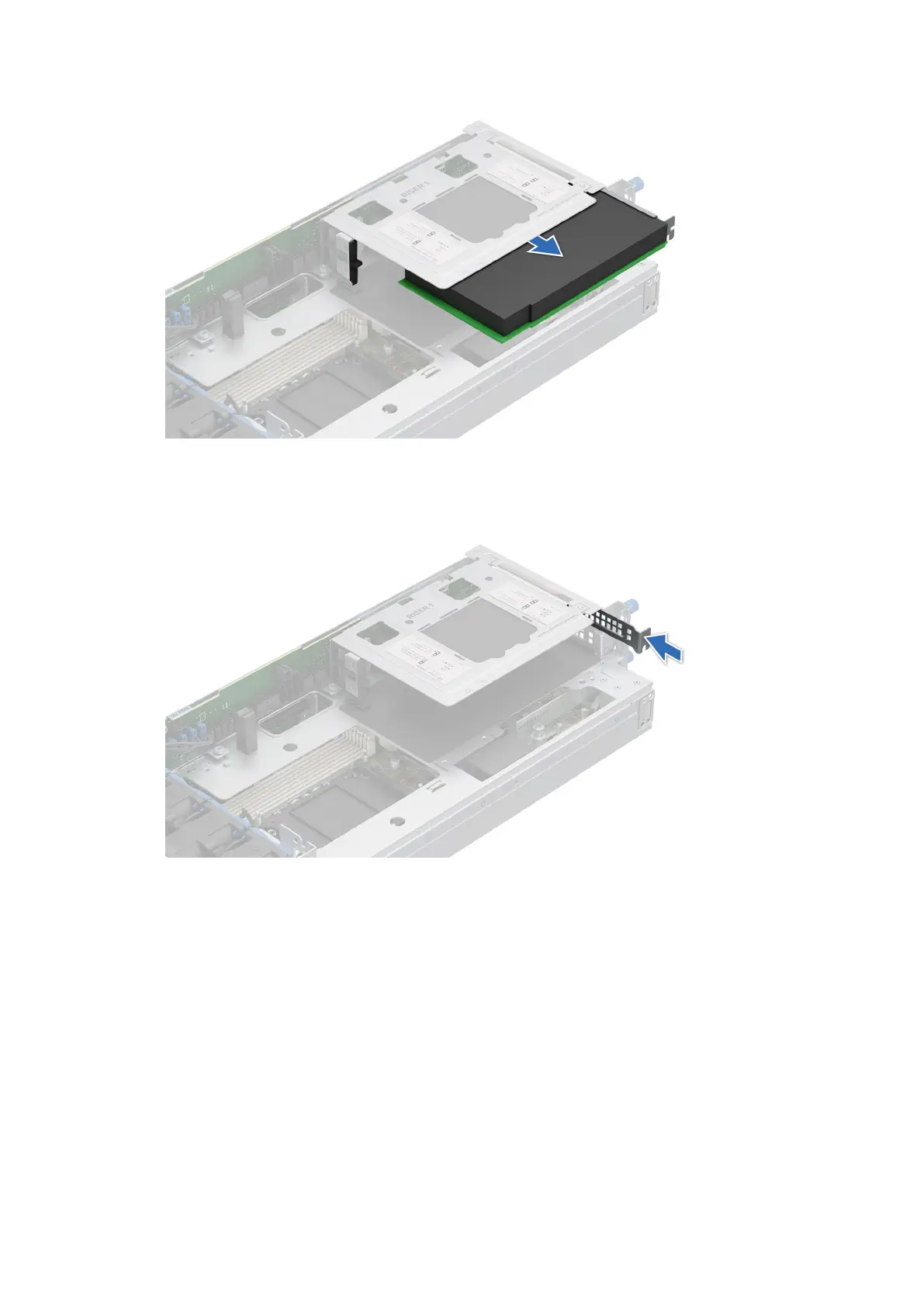

Figure 59. Removing the PCIe card from Riser
2. Replace the expansion card filler bracket.
Figure 60. Installing the expansion card filler bracket
Next steps
Replace the PCIe card on Riser.
Installing the PCIe card on Riser
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
4. Remove the M.2 direct riser
5. Remove the side cover
Installing and removing system components
93
