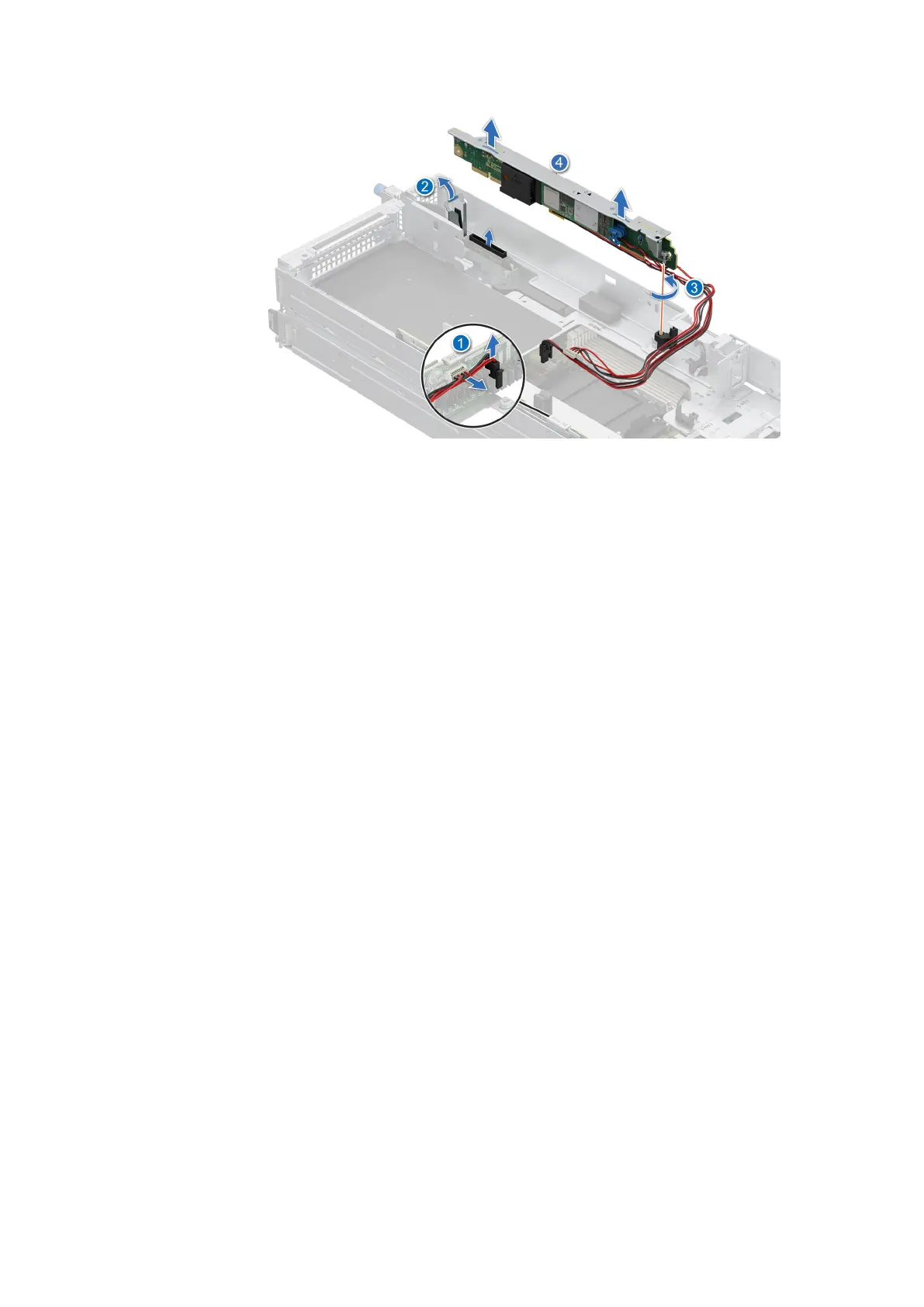

Figure 32. Removing the ROR N1 module
Next steps
Replace the ROR N1 module.
Installing the ROR N1 module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the ROR N1 module with the system board and insert it firmly using the blue touch point until the riser is fully seated in
the slot.
2. Using a Phillips 2 screwdriver, tighten the screw to secure the riser to the system board.
3. Connect the cable connected from ROR N1 module to 2U power distribution board.
Installing and removing system components
71
