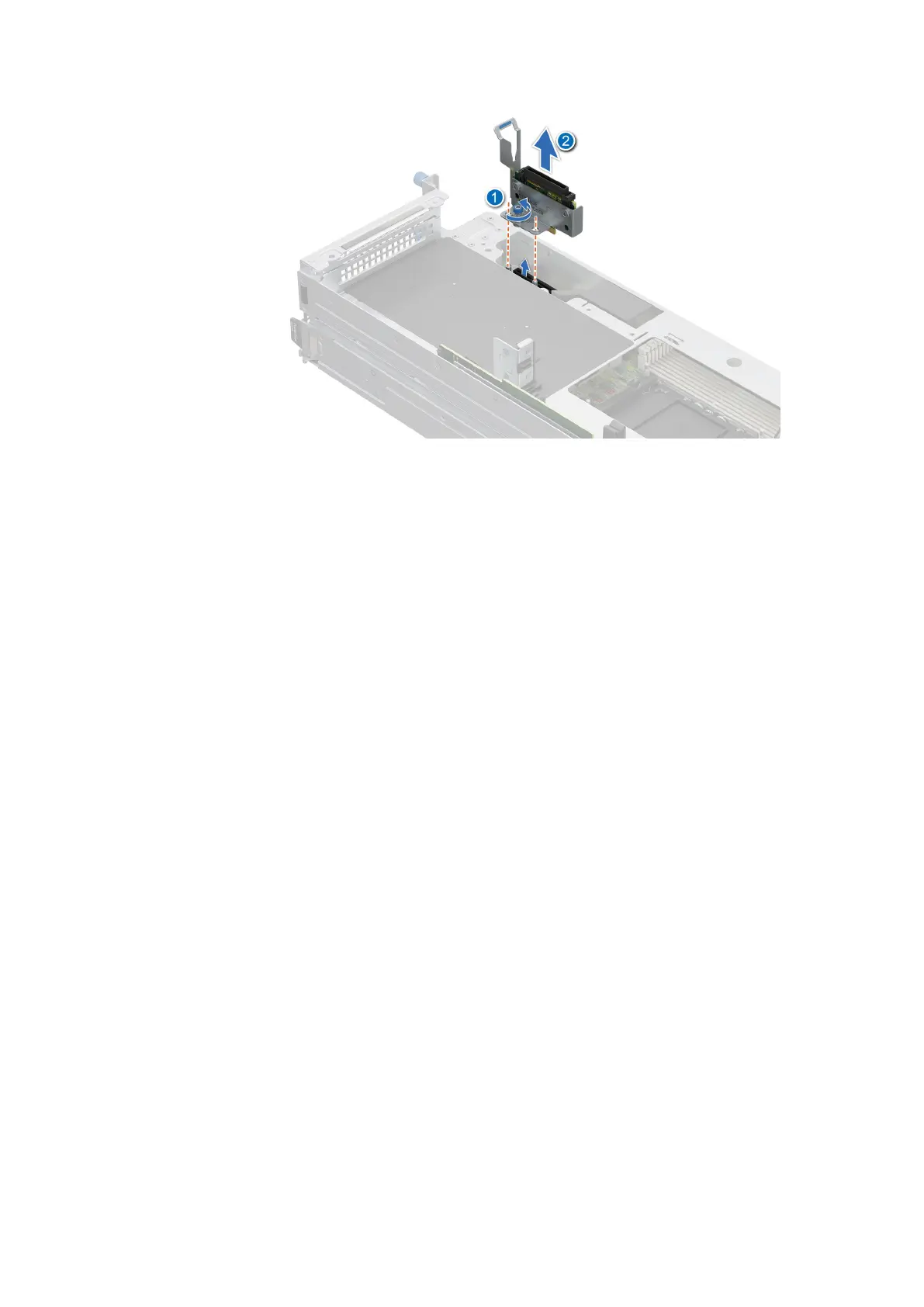

Figure 40. Removing the storage interposer module
2. Lift the board to remove it from the system.
Next steps
Replace the storage interposer module.
Installing the storage interposer module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the M.2 direct riser module.
Steps
1. Align the storage interposer module with the connector on the system board.
2. Using a Phillips 2 screwdriver, tighten the screw to secure the storage interposer module on the system board.
78
Installing and removing system components
