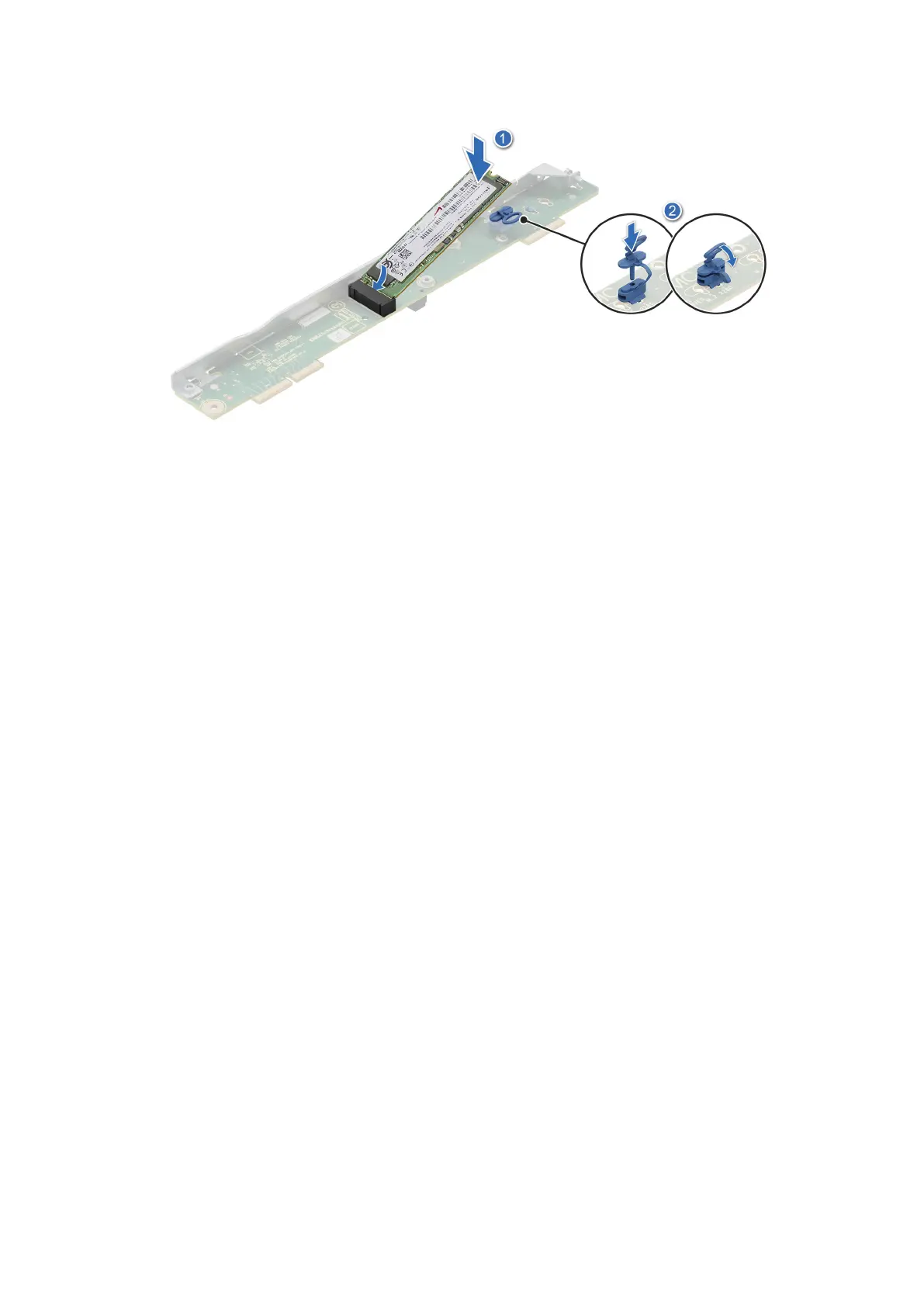

Figure 29. Installing the M.2 NVMe module
Next steps
1. Installing the M.2 direct riser module.
2. Follow the procedure listed in the After working inside your system.
ROR N1 module
Installing the thermal pad to ROR N1 module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Peel off the release paper and paste thermal pad onto the ROR N1 module.
Installing and removing system components
69
