Table 12. Network port specification for the system
Feature Specifications
LOM 2 x 25 GbE SFP 28 LOM connectors (optional).
Serial connector specifications
The PowerEdge XR8620t system supports one Micro USB Type B serial connector, on front of the system.
Display port
The PowerEdge XR8620t system supports One Mini-DisplayPort on front of the system.
iDRAC port specifications
The PowerEdge XR8620t system supports one RJ45 with port status LEDs for iDRAC remote management (dedicated port
only) on front of the system.
RJ-45 dry contact port
The PowerEdge XR8620t system supports 1 x RJ45 for dry contact on front of the system.
To enhance usage in the IoT space, the XR8620t comes with a dry input sensor. Each input is configurable and manageable in
the iDRAC interface. These are interruptible inputs to iDRAC. Dry means that no energy is supplied to the contacts. The dry
contact connection cable with RJ45 connector on one end is custom to each installation and must be provided by the end user.

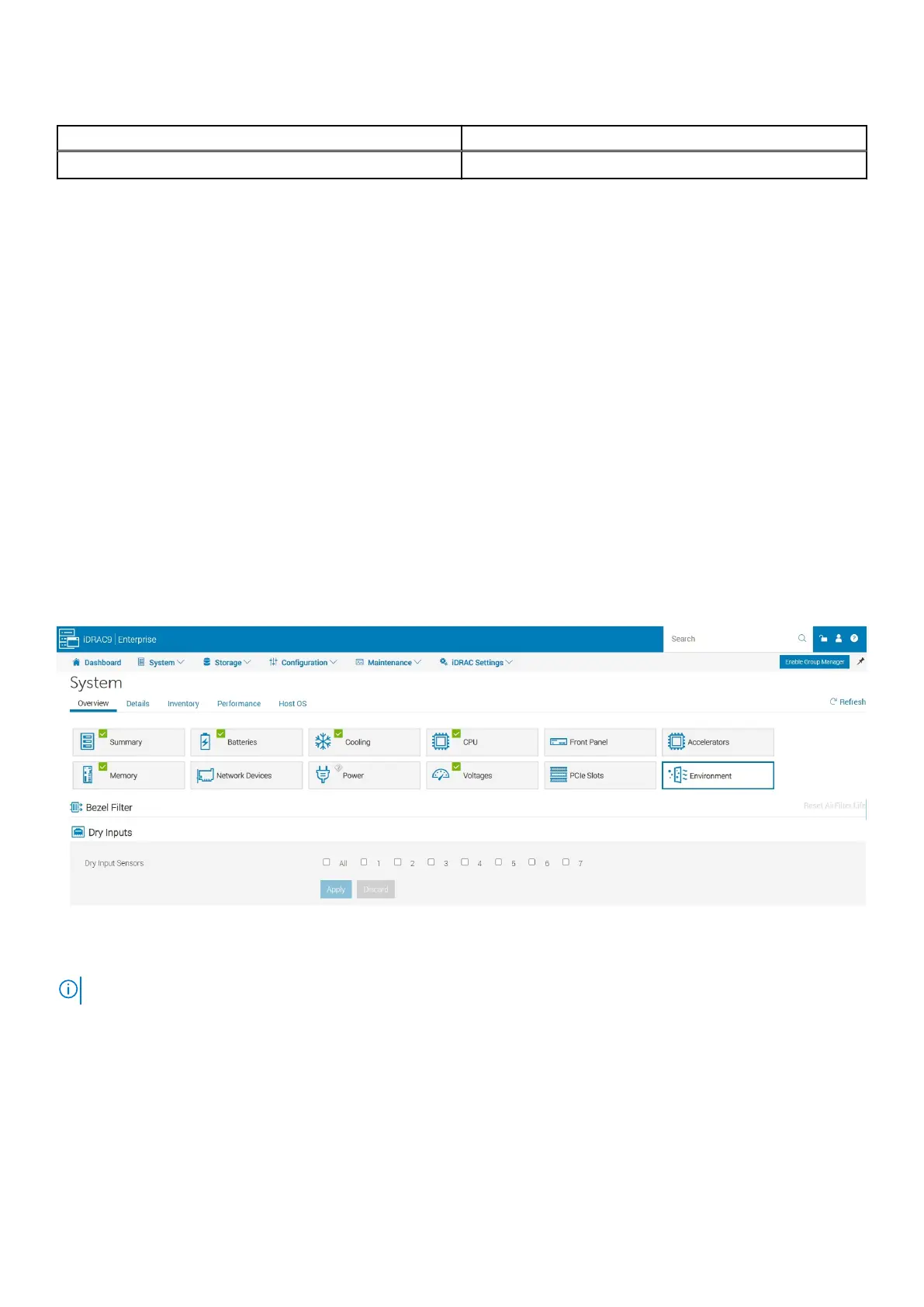

Figure 13. iDRAC interface for Dry Input sensors
NOTE: The RJ45 for dry contact does not support IP function.
The default states of the dry inputs are off/disabled. The user has seven (one for each dry input) enable/disable (default)
control that must be enabled before logging occurs.
