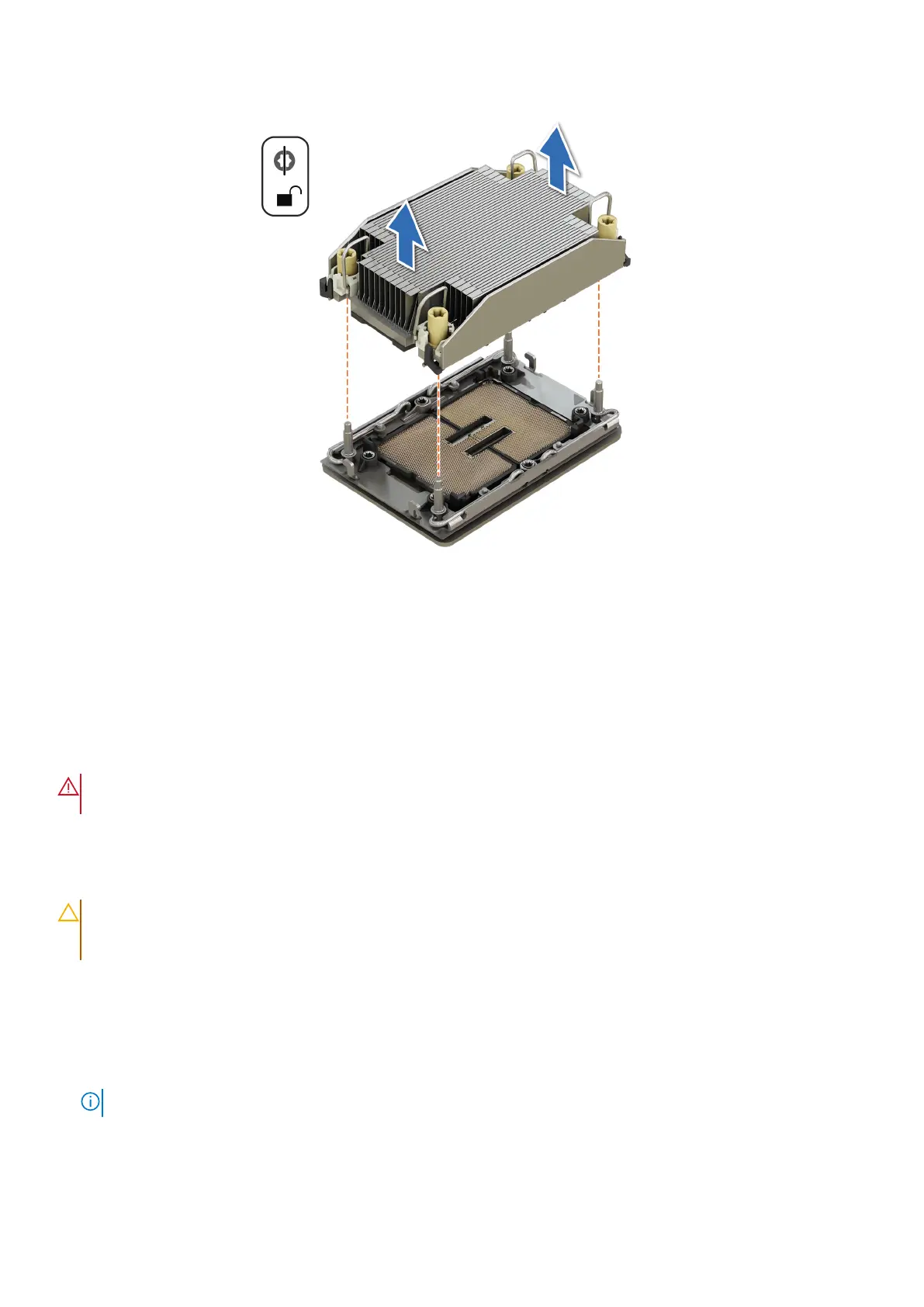

Figure 83. Removing a heat sink
Next steps
If you are removing a faulty heat sink, replace the heat sink, if not, remove the processor.
Removing the processor
Prerequisites
WARNING:
Remove the processor from processor and heat sink module (PHM) only if you are replacing the
processor or heat sink.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the 2U sled from 1U node
4. Remove the processor heat sink module.
CAUTION:
You may find the CMOS battery loss or CMOS checksum error that is displayed during the first
instance of powering on the system after the processor or system board replacement which is expected. To fix
this, simply go to setup option to configure the system settings.
Steps
1. Place the heat sink with the processor side facing up.
2. Using your thumb, lift the thermal interface material (TIM) break lever to release the processor from the TIM and retaining
clip.
3. Holding the processor by the edges, lift the processor away from the retaining clip.
NOTE: Ensure to hold the retaining clip to the heat sink as you lift the TIM break lever.
Figure 84. Removing the processor
Installing and removing system components
113
