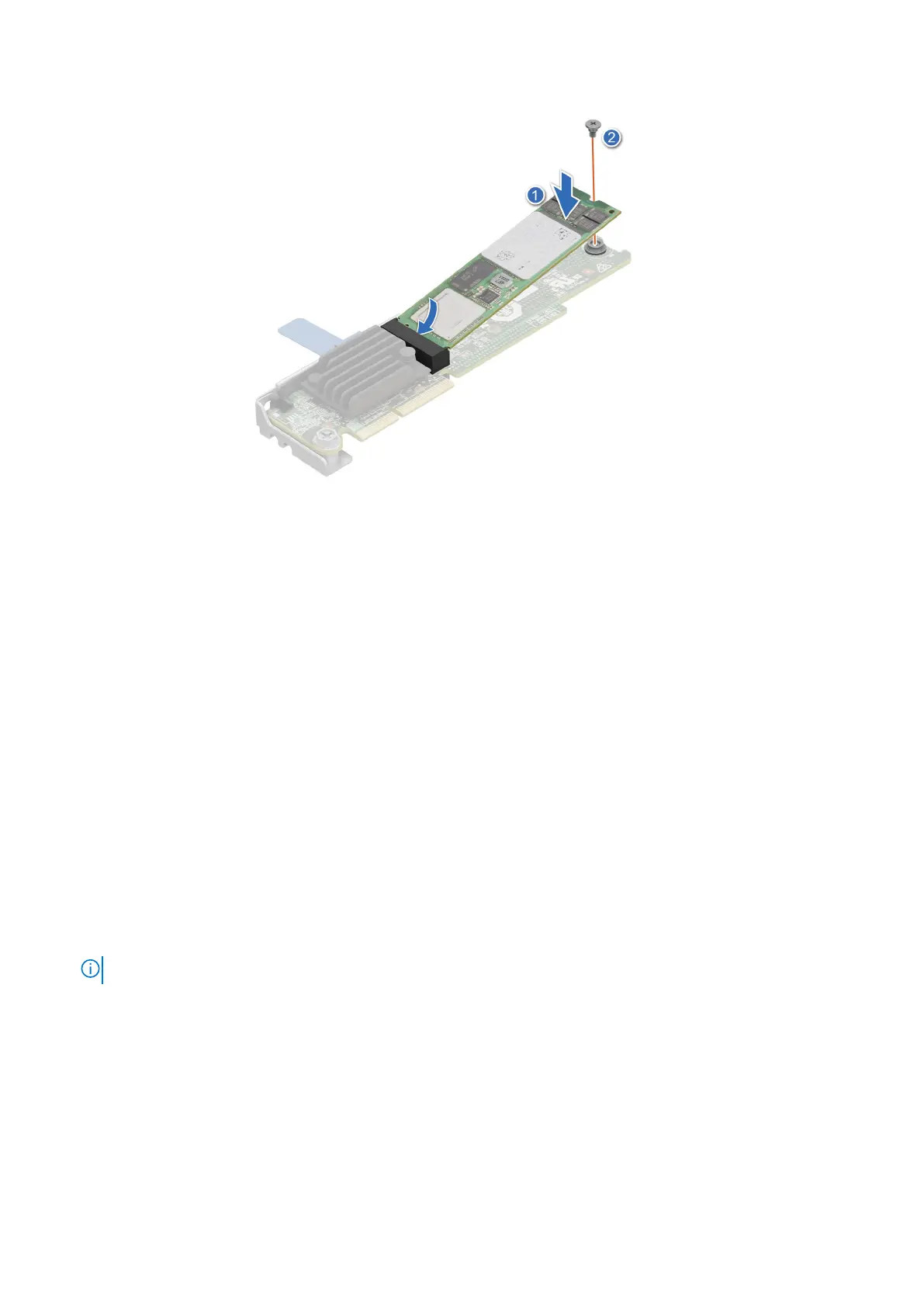

Figure 66. Installing the M.2 SSD module
Next steps
1. Installing the BOSS-N1 card.
2. Follow the procedure listed in the After working inside your system.
Power distribution board
This is a service technician replaceable part only.
Removing the 2U power distribution board
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
4. Remove the M.2 direct riser.
5. Remove the side cover.
6. Remove the Riser 1.
7. Disconnect the cables connected from cooling fans and system board to the 2U power distribution board (PDB).
NOTE: Observe the routing of the cable as you remove it from the system.
Steps
1. Using a Phillips 2 screwdriver, remove the screws that secure the PDB to the system.
98
Installing and removing system components
