Dell PowerEdge XR8620t

Expansion card installation guidelines

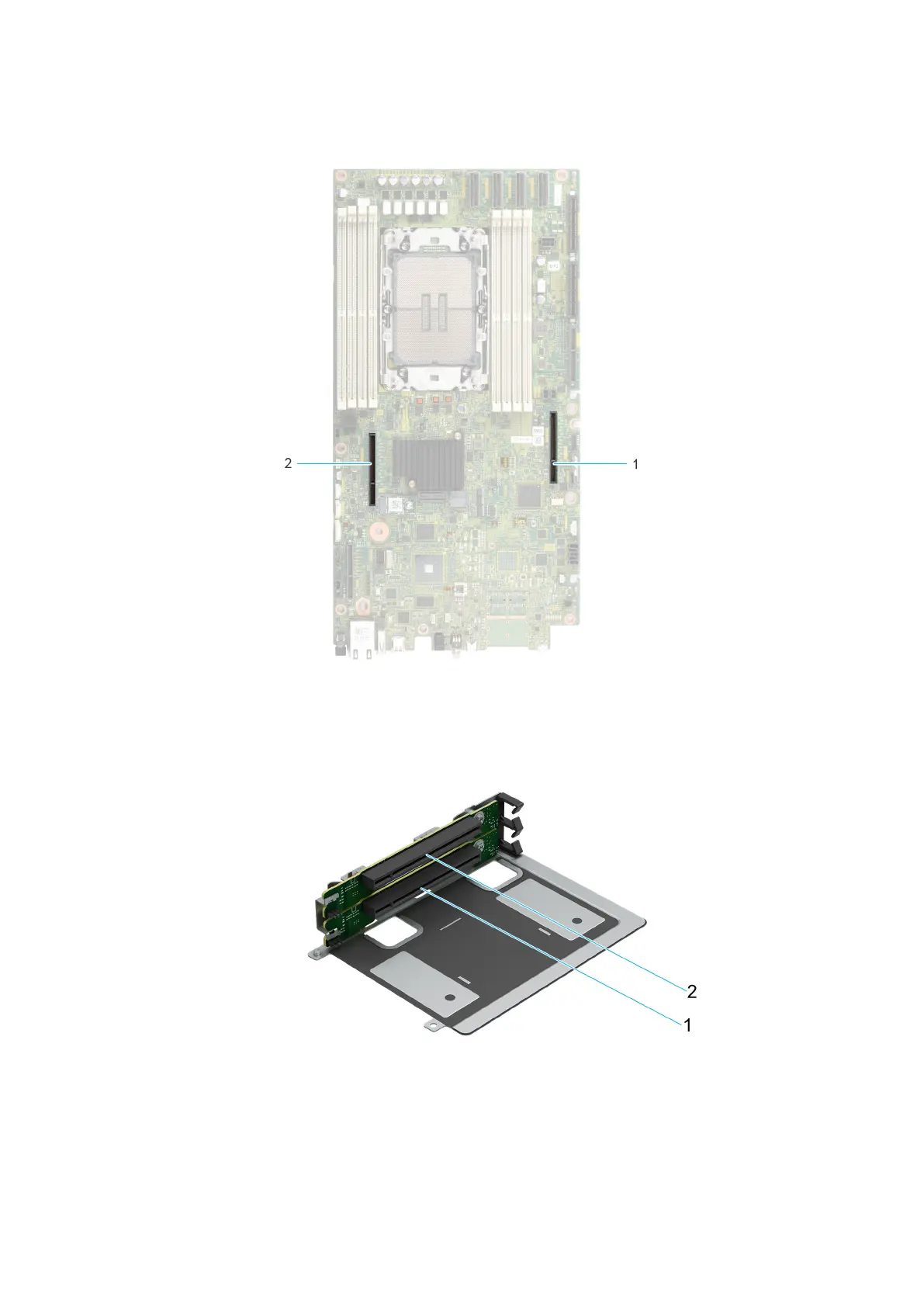

Figure 50. Expansion card slot connector
1. Riser 1U connector(Riser 2)
2. Reserved (IO_RISER2)
Figure 51. Riser 1A slots
1. Slot 1
2. Slot 2
Installing and removing system components
85
