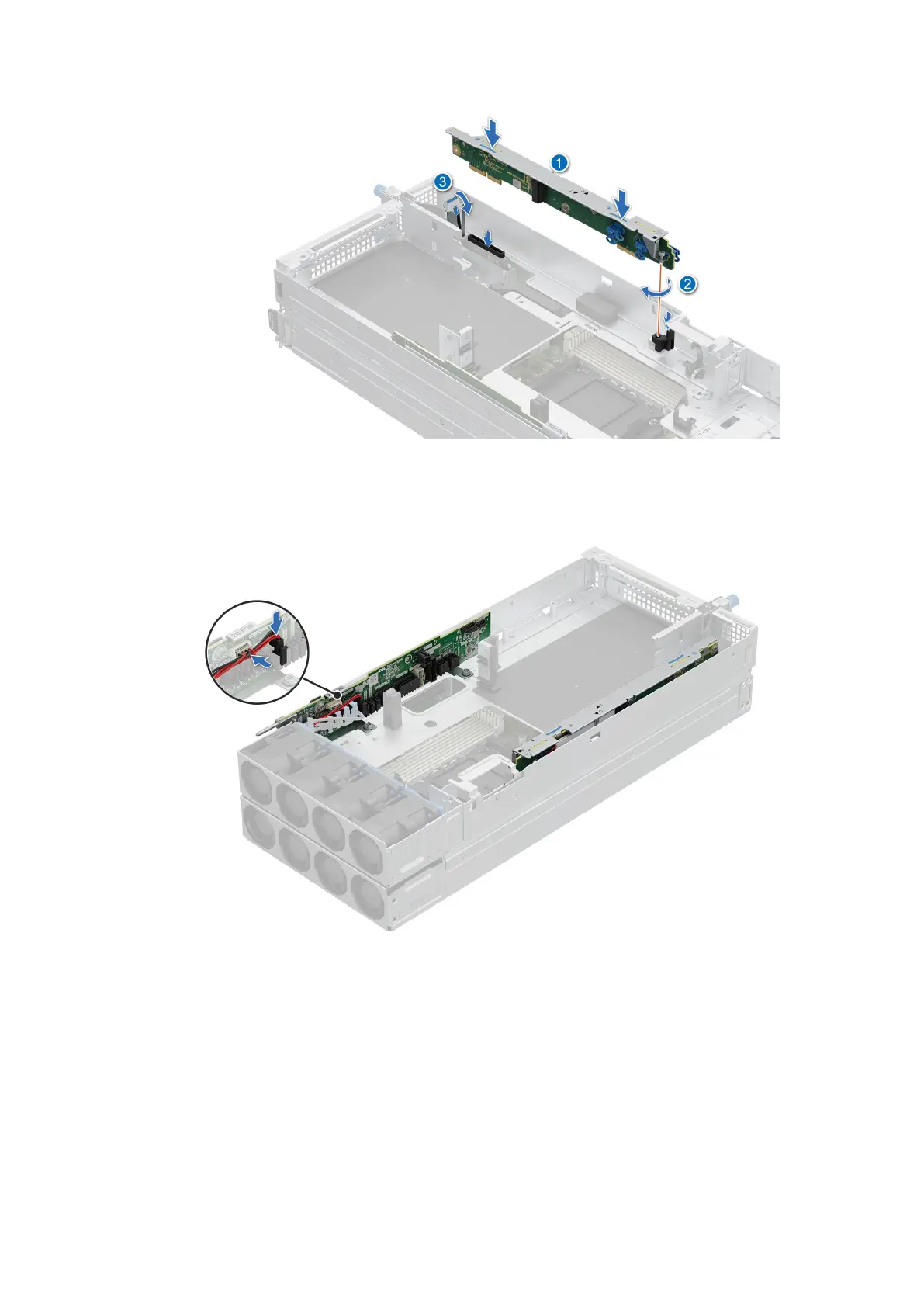

Figure 26. Installing the M.2 direct riser
3. For HM Configuration, connect the cable from M.2 direct riser module to 2U power distribution board.
Figure 27. Connecting cable from M.2 direct riser module to 2U PDB
Next steps
Follow the procedure listed in After working inside your system.
Removing the M.2 NVMe module from the M.2 direct riser module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
Installing and removing system components
67
