Dell PowerEdge XR8620t

BOSS-N1 card
Removing the BOSS-N1 card
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the 2U top sled from the 2U node.
Steps
1. Press the latch located on system board to unlock the BOSS-N1 card from the system.
2. Pull the blue pull tab to remove the BOSS-N1 card from the slot on system board.

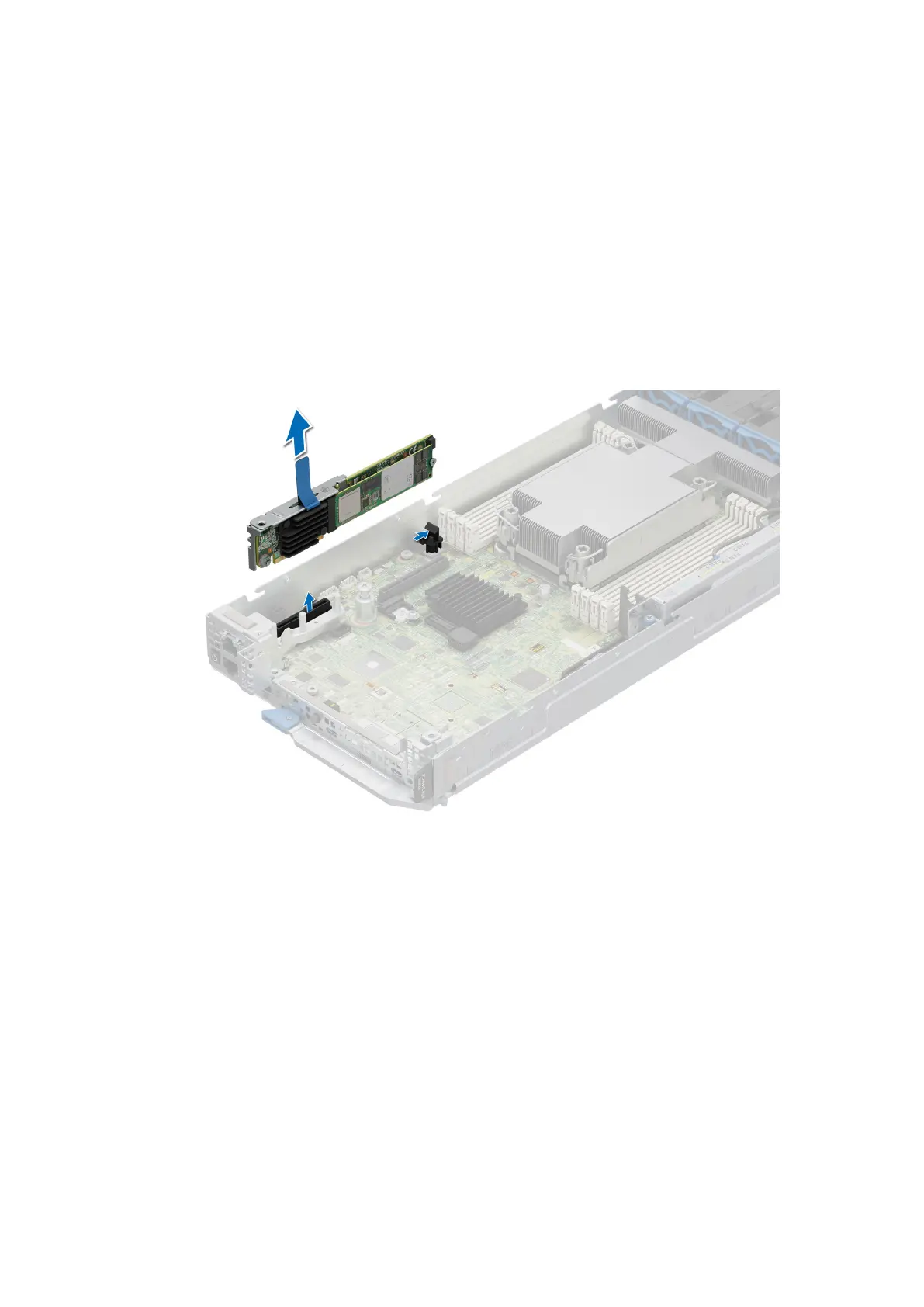

Figure 63. Removing the BOSS-N1 card
Next steps
Replace the BOSS-N1 card.
Installing the BOSS-N1 card
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the 2U top sled from the 2U node.
Steps
1. Align the notch on the BOSS-N1 card with the slot on the system board.
