Next steps
After working inside your system.
Removing the expansion card riser 2
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the 2U top sled from the 2U node.
Steps
1. Using the Phillips 2 screwdriver, loosen the captive screw that secure the riser 2 on the 1U node.
2. Hold the expansion card riser 2 by the edges and lift the expansion card riser from the riser connector on the 1U node.

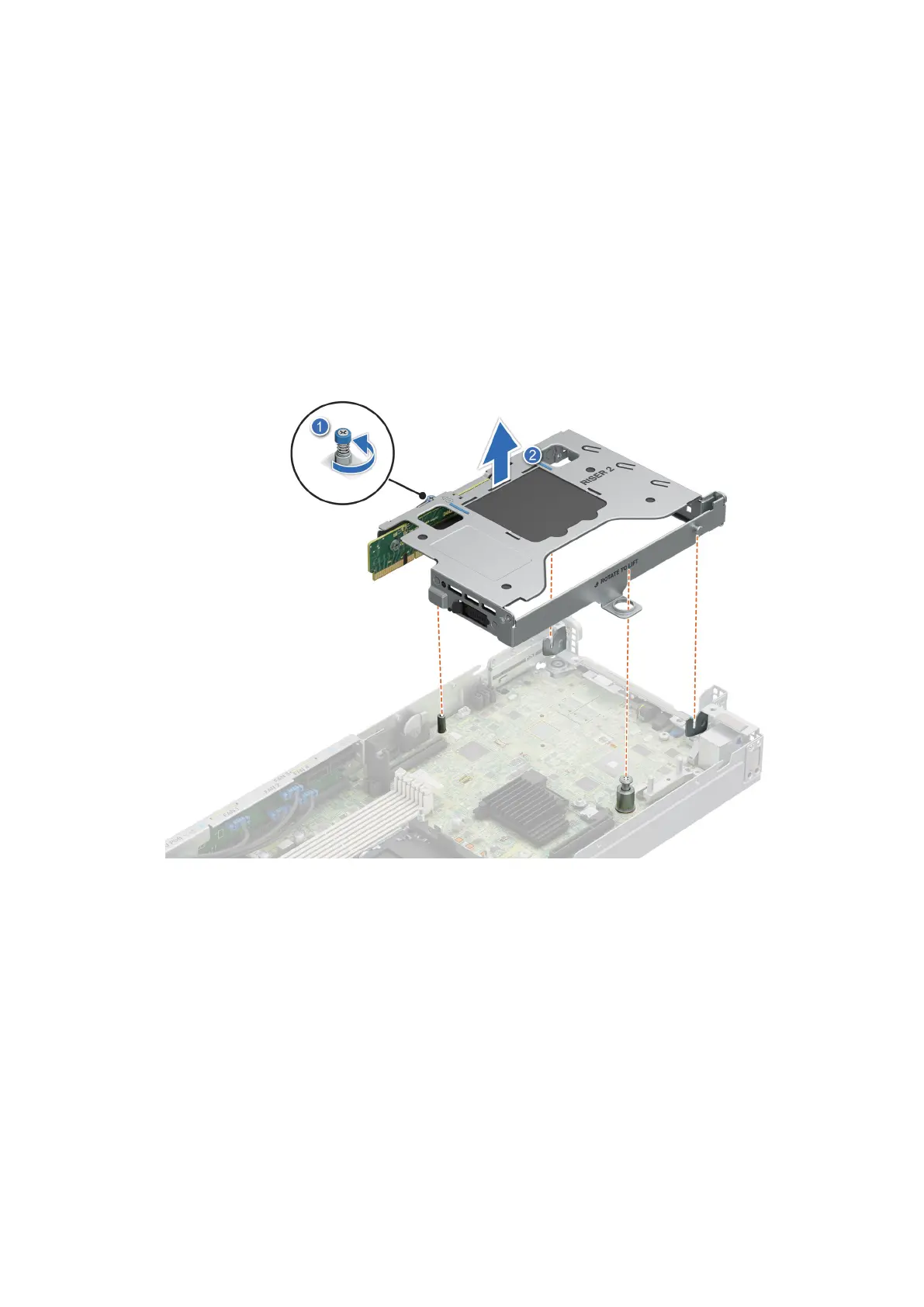

Figure 56. Removing the expansion card riser 2
Next steps
Replace the expansion card riser 2.
Installing the expansion card riser 2
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the 2U top sled on the 2U node.
90
Installing and removing system components
