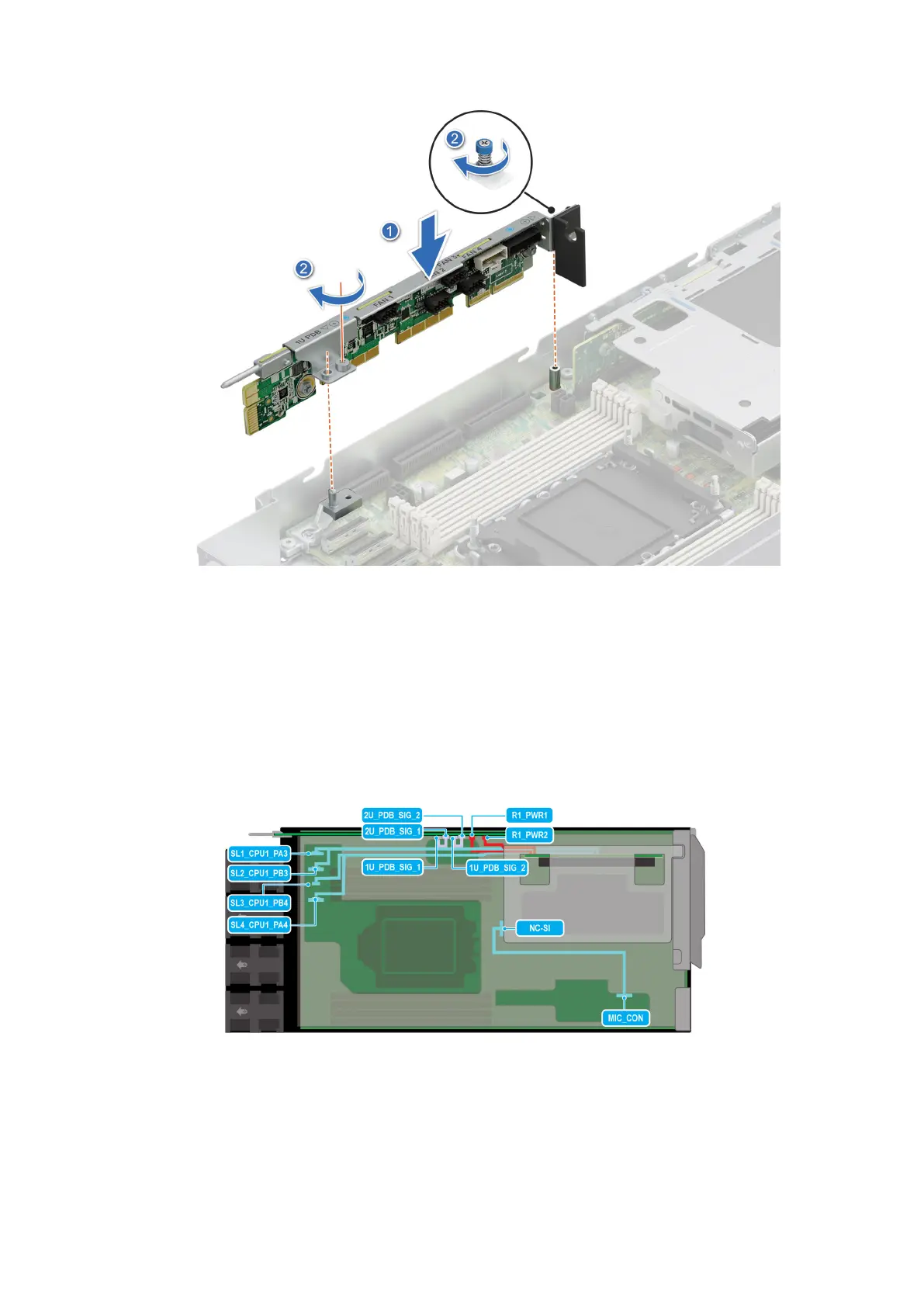

Figure 70. Installing the 1U power distribution board
Next steps
1. Connect the cables connected from cooling fans and system board to the 1U power distribution board (PDB).
2. Install the Riser 2
3. Install the 2U top sled on the 2U node
Cable routing
Figure 71. Configuration 1
102
Installing and removing system components
