Dell PowerEdge XR8620t

Table 66. Configuration 1
Order From To
1 Riser 1 (Slot 1) R1_PWR1 (power distribution board power
connector)
2 Riser 1 (Slot 1) SL1_CPU1_PA3 (PCIe connector 1 on system board)
and SL2_CPU1_PB3 (PCIe connector 2 on system
board)
3 Riser 1 (Slot 2) R1_PWR2 (power distribution board power
connector)
4 Riser 1 (Slot 2) SL3_CPU1_PA3 (PCIe connector 3 on system
board) and SL4_CPU1_PB3 (PCIe connector 4 on
system board)
5 1U_PDB_SIG_1 (1U power distribution board signal
connector)
2U_PDB_SIG_1 (2U power distribution board signal
connector)
6 1U_PDB_SIG_2 (1U power distribution board signal
connector)
2U_PDB_SIG_2 (2U power distribution board signal
connector)
7 MIC_CON (Smart NIC connector) NC-SI (NC-SI Connector)

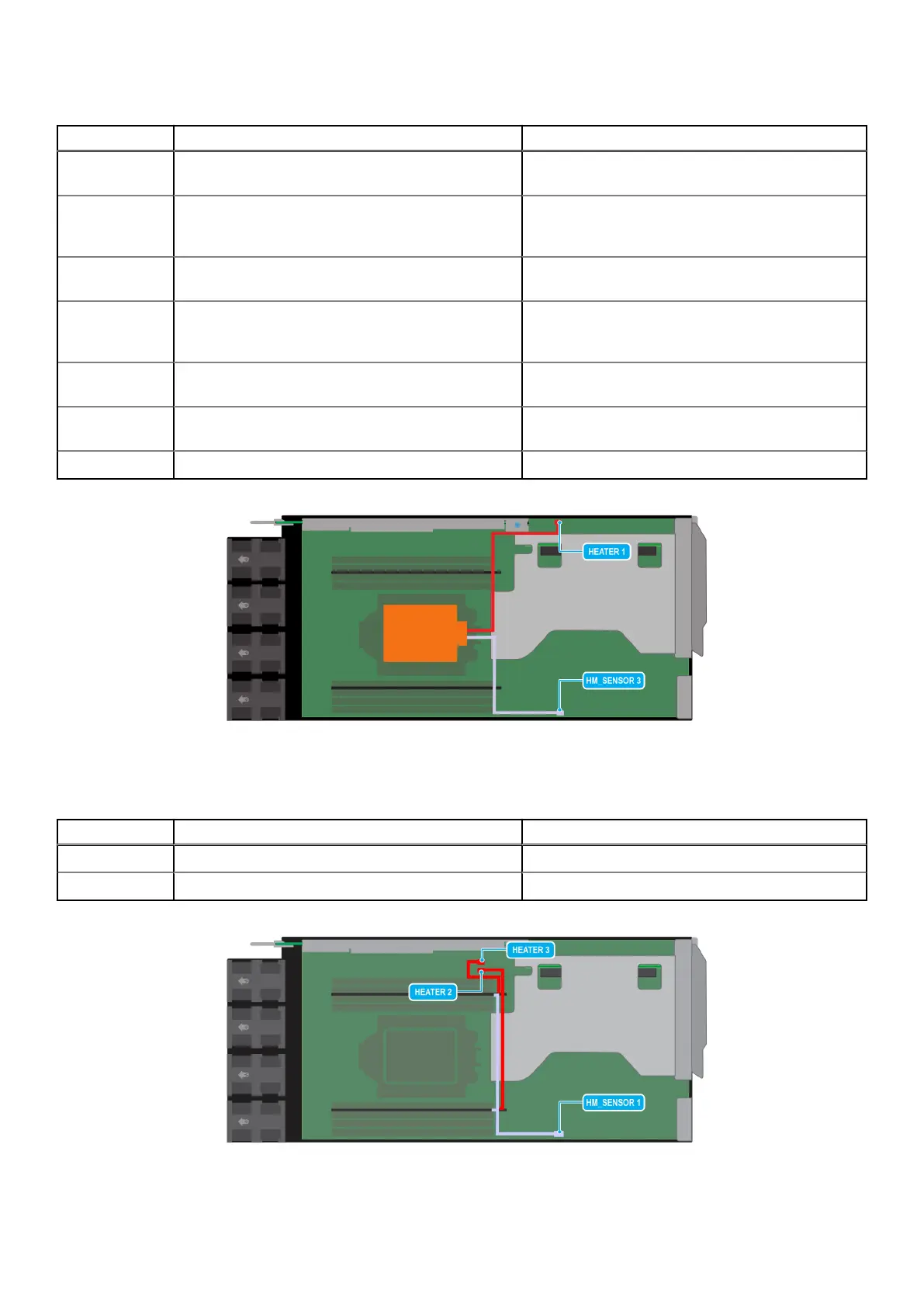

Figure 72. CPU Heater Manager Module
Table 67.
CPU Heater Manager Module
Order From To
1 CPU Heater Manager HM heater (MB_HEATER1)
2 CPU Heater Manager HM sensor (HM_SENSOR3)
Figure 73. DIMM sensor clips heater manager
