Dell PowerEdge XR8620t

Table 68. DIMM sensor clips heater manager
Order From To
1 DIMM sensor clip A1 and A2 HM sensor (MB_SENSOR1)

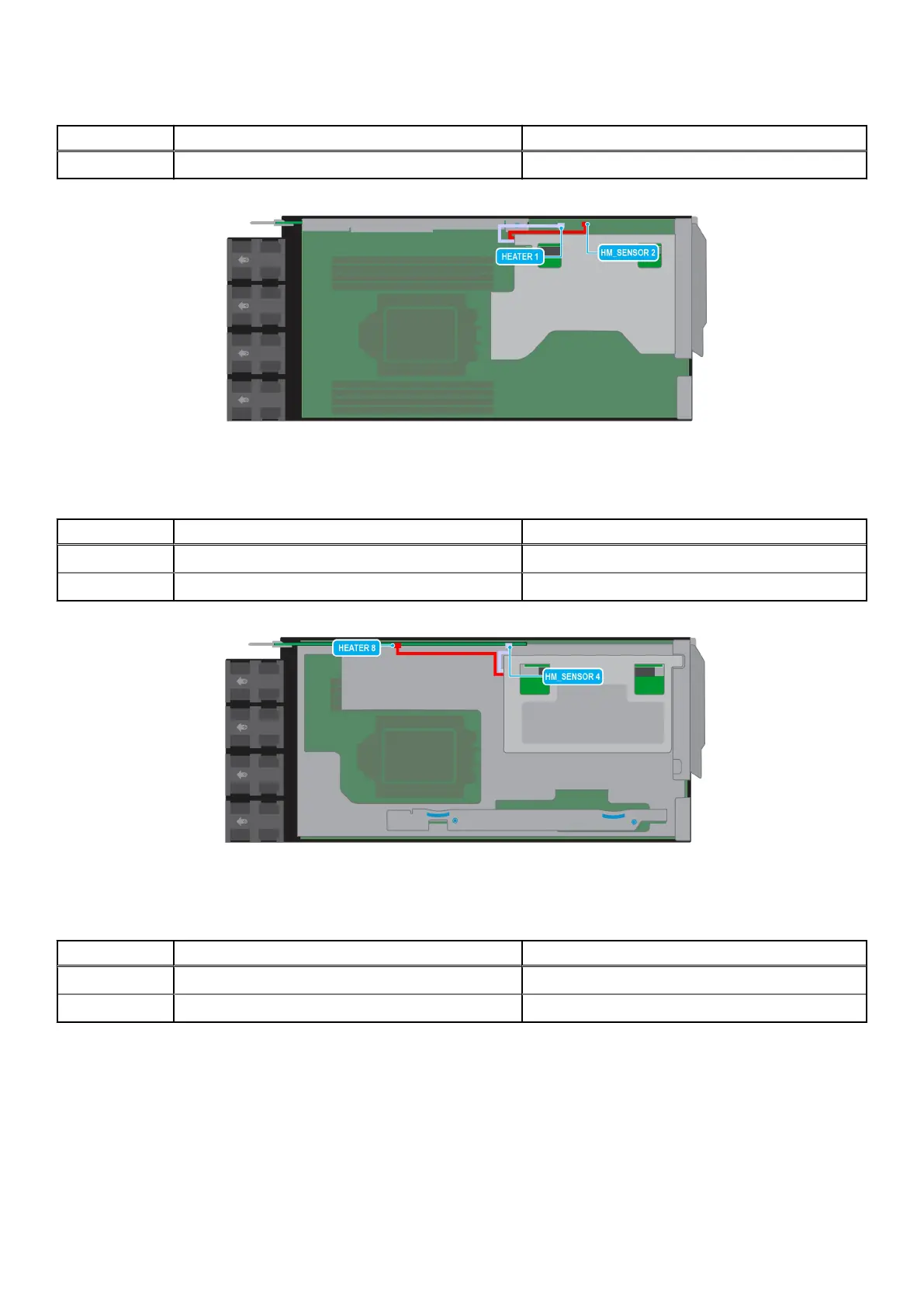

Figure 74. Riser 2 heater manager
Table 69. Riser 2 heater manager
Order From To
1 PCIe from Riser 2 HM heater (MB_HEATER1)
2 PCIe from Riser 2 HM sensor (MB_SENSOR2)
Figure 75. Riser 1 heater manager (Slot 1)
Table 70.
Riser 1 heater manager (Slot 1)
Order From To
1 PCIe from Riser 1 Slot 1 HM heater (2U_PDB_HEATER9)
2 PCIe from Riser 1 Slot 1 HM sensor (MB_SENSOR4)
104 Installing and removing system components
