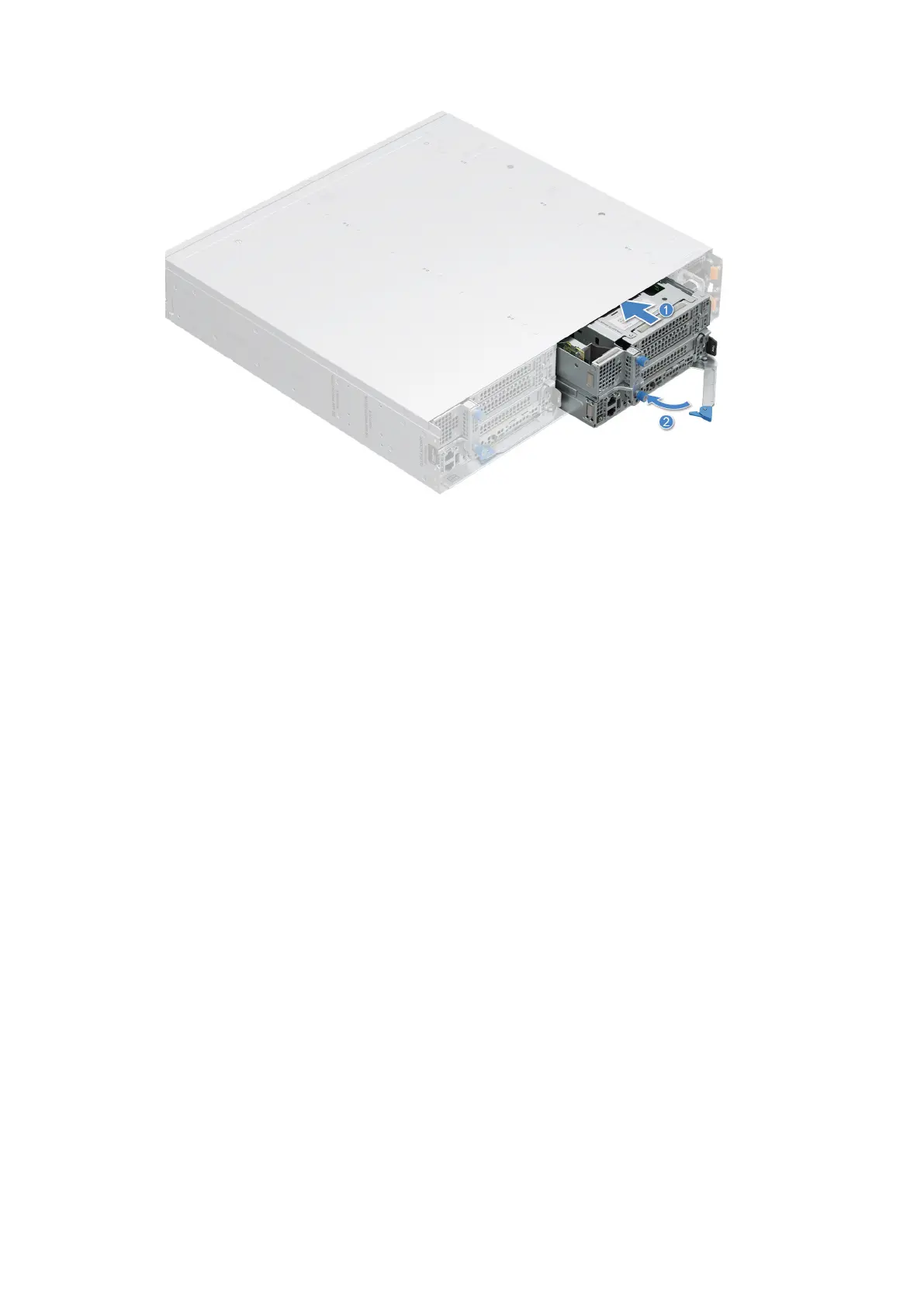

Figure 18. Installing a sled into XR8000r
Next steps
Follow the procedure listed in After working inside your system.
Sled cover
Removing the sled cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Power off the sled, and any attached peripherals.
3. Follow the steps for Removing a sled.
4. Place the sled on the flat surface with the top cover facing upwards.
Steps
1. Press the latch and slide the cover toward the front of the server until it reaches the unlock position.
2. Lift the cover from the sled.
60
Installing and removing system components
