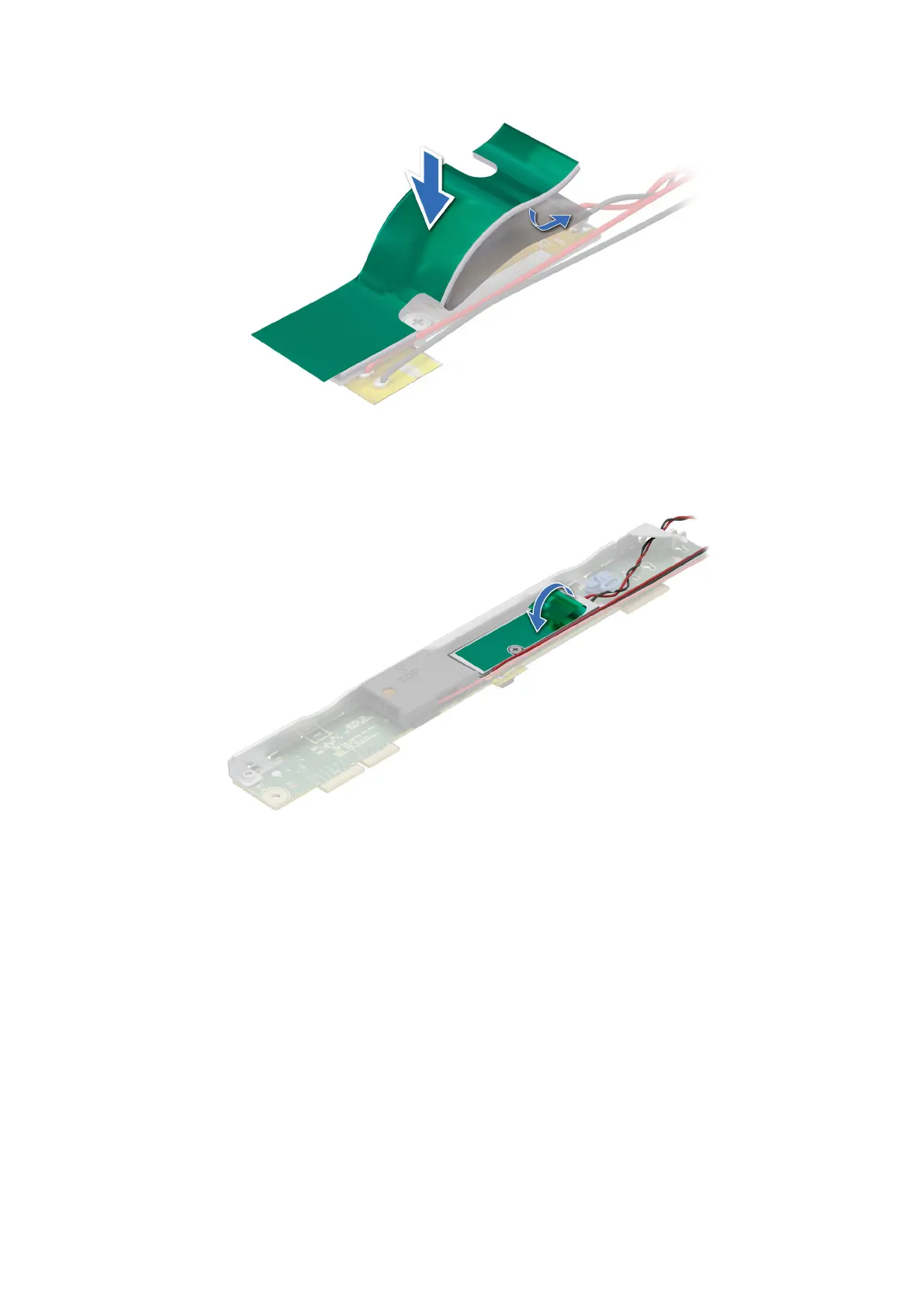

Figure 30. Removing the release paper from thermal pad
2. Pull to remove the cover from thermal pad.
Figure 31. Removing cover from thermal pad
Removing the ROR N1 module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Disconnect the cable connected from ROR N1 module to 2U power distribution board.
2. Using a Phillips 2 screwdriver, loosen the captive screw that secures the ROR N1 module.
3. Lift the riser using the blue touch point to disengage it from the connector on the system board.
70
Installing and removing system components
